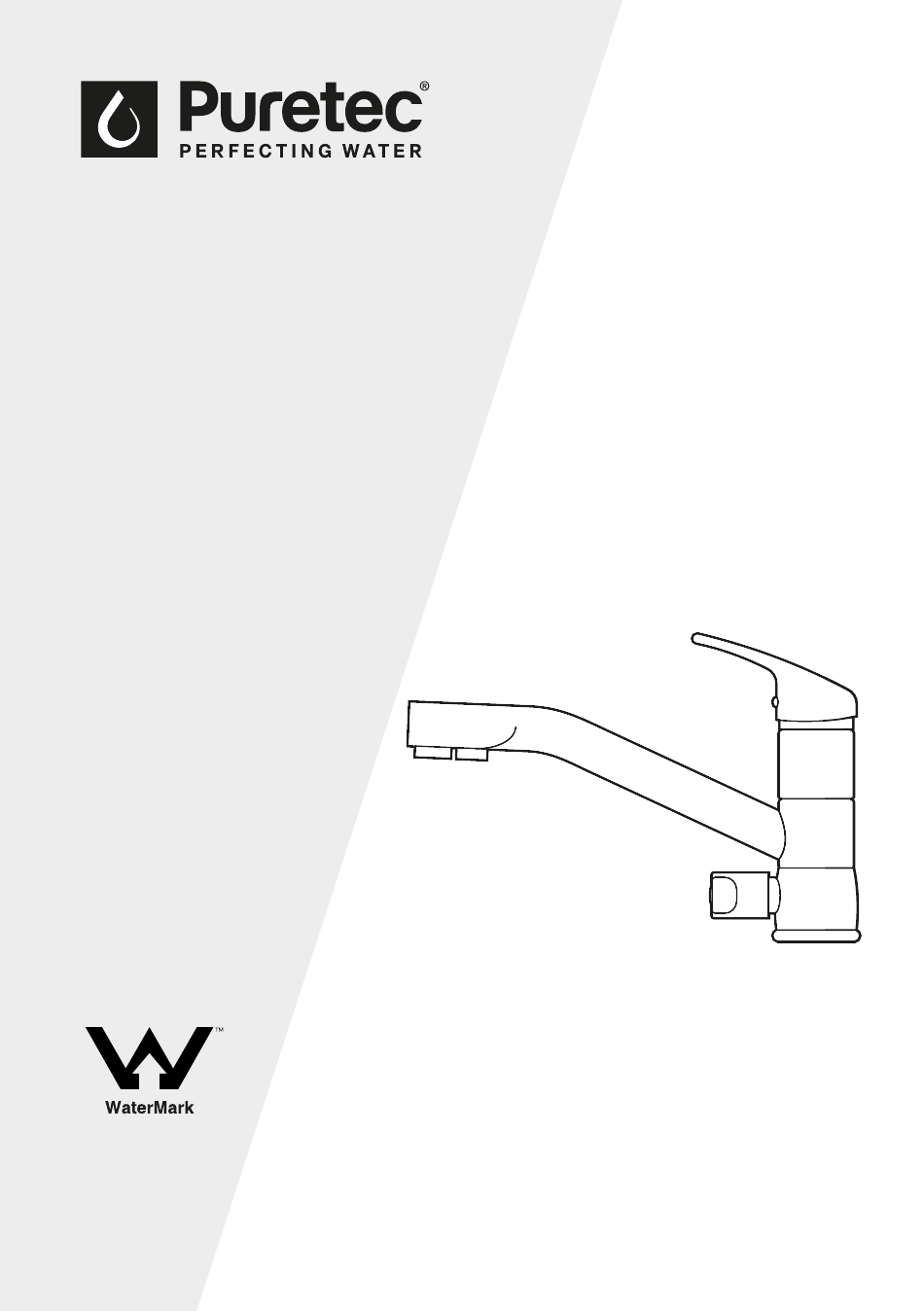

- Page 1 User Guide Tripla™ CERT NO. 23033 AS/NZS 3718:2005 Puretec Tripla™ | Triple Action Tapware For correct operation & installation it is essential to observe these instructions. NOV 2019...
-
Page 2: Table Of Contents
Warranty ............................14 Puretec Customer Service Thank you for purchasing a Puretec Tripla. Your tap is manufactured from only quality materials and will last for years, if maintained and installed properly. The system is designed for metropolitan supply water but can be used in other situations. -
Page 3: Operation
Under no circumstance should any abrasive or acid base cleaning agents be used. Servicing Periodically clean the aerator for any lodged sediment that may restrict flow. A Puretec water filter is highly recommended for product longevity. Should it be necessary to have your mixer serviced while under warranty, please carry... -
Page 4: Installation Guide
Note: It is important to flush out the supply pipes to the mixer before connecting the flexible hoses, with the initial installation, so no foreign matter can enter into the cartridges. A Puretec Water Filter is highly recommended for product longevity. Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 5: Assembly
Spacer and screw to the hole on the bottom of the faucet. Then, use a wrench to lock the Retainer Nut. Rubber Spacer Zinc Spacer Retaining Retainer Screw Copyright © Puretec Pty Ltd 2019 Puretec Tripla™ | Triple Action Tapware... -
Page 6: Water Connection Patterns
For TRIPLA T1 & T2 COLD Water Connection Water Filter Connection Retainer Screw HOT Water Connection For TRIPLA T3 to T6 COLD Water Connection Retainer Screw Water Filter Connection Retainer Screw HOT Water Connection Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 7: Battery Installation
Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8” socket. Install cartridge by completing removal instructions as above, in reverse order. • Ensure cartridge is firmly tightened not over tightened. Copyright © Puretec Pty Ltd 2019 Puretec Tripla™ | Triple Action Tapware... -
Page 8: Tripla T1 Parts Description
38. Handle Cap 36. Magnetic Seat 17. Housing 37. Magnet 40. Circuit Board 41. Battery Seat 18. Screw 19. Rubber 45. Flexible Washer Tube ½" Inlet/Outlet Hose Stainless Washer 21. Brass Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 9: Tripla T2 Parts Description
40. Circuit Board 38. O-Ring 44. Flexible 15. Screw 41. Battery Seat Tube ½" 42. Flexible Tube ½" Rubber 44. Flexible Tube ½" Washer 17. Stainless Washer 18. Brass Nut Copyright © Puretec Pty Ltd 2019 Puretec Tripla™ | Triple Action Tapware... -
Page 10: Tripla T3 Parts Description
14. Battery Seat 31. Plunger 32. Cap 38. Housing Screw 35. Body 39. O-Ring 34. Canopy 36. Nut 37. Stopper 40. Screw Washer 44. Flexible Tube Washer Brass 47. Wrench Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 11: Tripla T4 Parts Description
23. Stem Post 24. Upper 38-2. Nut 25. Lower 26. Seat 37. Handle Cap 27. Stopper 39. Stopper 26. Seat 40. Washer 41. Screw Washer 45. Flexible Tube Washer Brass Copyright © Puretec Pty Ltd 2019 Puretec Tripla™ | Triple Action Tapware... -
Page 12: Tripla T5 Parts Description
23. Stem Post 24. Upper 38-2. Nut 25. Lower 26. Seat 37. Handle Cap 27. Stopper 39. Stopper 26. Seat 40. Washer 41. Screw Washer 45. Flexible Tube Washer Brass Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 13: Tripla T6 Parts Description
26. Stem Post 27. Upper 41-1. Nut 28. Lower 29. Seat 40. Handle Cap 30. Stopper 42. Stopper 29. Seat 43. Washer 44. Screw Washer 48. Flexible Tube Washer Brass Copyright © Puretec Pty Ltd 2019 Puretec Tripla™ | Triple Action Tapware... -
Page 14: Warranty
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs... - Page 15 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
