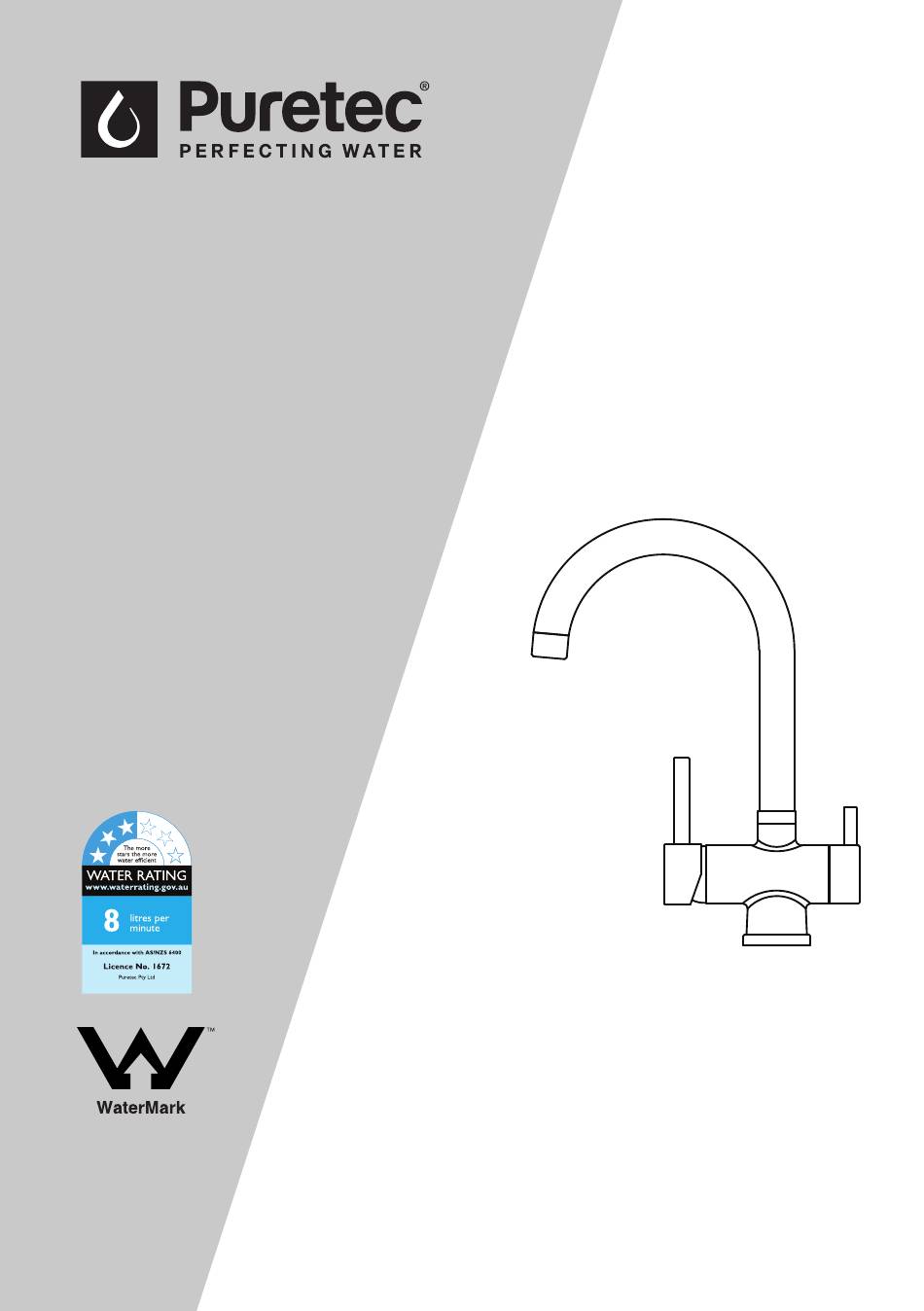

- Page 1 User Guide Tripla™ Black AS/NZS 3718:2005 Licence No. WM 74726 Australian Certification Puretec Tripla™ Black | Triple Action Tapware Services For correct operation & installation it is essential to observe these instructions. JUl2018...
-
Page 2: Table Of Contents
Warranty/New Zealand ...................... 13 Puretec Customer Service Thank you for purchasing a Puretec Tripla. Your tap is manufactured from only quality materials and will last for years, if maintained and installed properly. The system is designed for metropolitan supply water but can be used in other situations. -
Page 3: Servicing
Introduction Servicing Periodically clean the aerator for any lodged sediment that may restrict flow. A Puretec whole house water filter is highly recommended to ensure longevity of all household tapware. Should it be necessary to have your mixer serviced while under warranty, please carry... -
Page 4: Installation Guide (Bl1 & Bl2 Models)
Note: It is important to flush out the supply pipes to the mixer before connecting the flexible hoses with the initial installation, so no foreign matter can enter into the cartridges. A Puretec Water Filter is highly recommended for product longevity. Installation & Operation Manual Copyright © Puretec Pty Ltd 2017... -
Page 5: Installation Guide (Bl3 Model)
Installation Guide (BL3 model) Retaining screw Base gasket Sink Faucet Hole (Ø33mm) Plastic fixed nut Rubber washer Metal washer Locking Nut Puretec Tripla™ Black Series | Triple Action Tapware... -
Page 6: Assembly (Bl1 & Bl2 Models)
Sink Faucet Hole (Ø33mm) Step 3. Place the rubber washer and screw the nut below the sink. Position the tap on your desired angle then tighten the nut. Rubber Washer Installation & Operation Manual Copyright © Puretec Pty Ltd 2017... -
Page 7: Assembly (Bl3 Model)
Insert the plastic fixed nut, rubber washer, metal washer and screw the nut by turning counterclockwise. Step 5. Position the tap on your desired angle and tighten the nut by using a wrench. Puretec Tripla™ Black Series | Triple Action Tapware... -
Page 8: Water Connection Patterns
For TRIPLA BL1 & BL2 HOT Water Connection ( red Water Filter Connection ( green COLD Water Connection ( blue For TRIPLA BL3 Water Filter Connection COLD Water Connection Retaining screw HOT Water Connection Installation & Operation Manual Copyright © Puretec Pty Ltd 2017... -
Page 9: Replacement Of Ceramic Disc Cartridge(S)
Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8” socket. Install cartridge by completing removal instructions as above, in reverse order. • Ensure cartridge is firmly tightened not over tighten. • Ensure all sealing rings/gaskets are lubricated using silicone lube. Puretec Tripla™ Black Series | Triple Action Tapware... -
Page 10: Tripla Bl1 & Bl2 Parts Description
20. screws 16. cap 21. base 22. gasket 23. plastic fixed nut 24. threaded tube 30. copper tube 25. gasket 26. nut 27. wrench 28. flexible hose 29. filter adaptor Installation & Operation Manual Copyright © Puretec Pty Ltd 2017... -
Page 11: Tripla Bl3 Parts Description
22. cap 16. cartridge 23. cartridge 17. handle 18. screw 24. screw 19. handle 20. body 25. base 28. flexible hose 26. gasket 27. plastic fixed nut 29. fitting group 30. filter adaptor Puretec Tripla™ Black Series | Triple Action Tapware... -
Page 12: Notes
Applicable to all above, is that the Warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs... -
Page 13: Warranty/Australia
Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. - Page 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2017...
