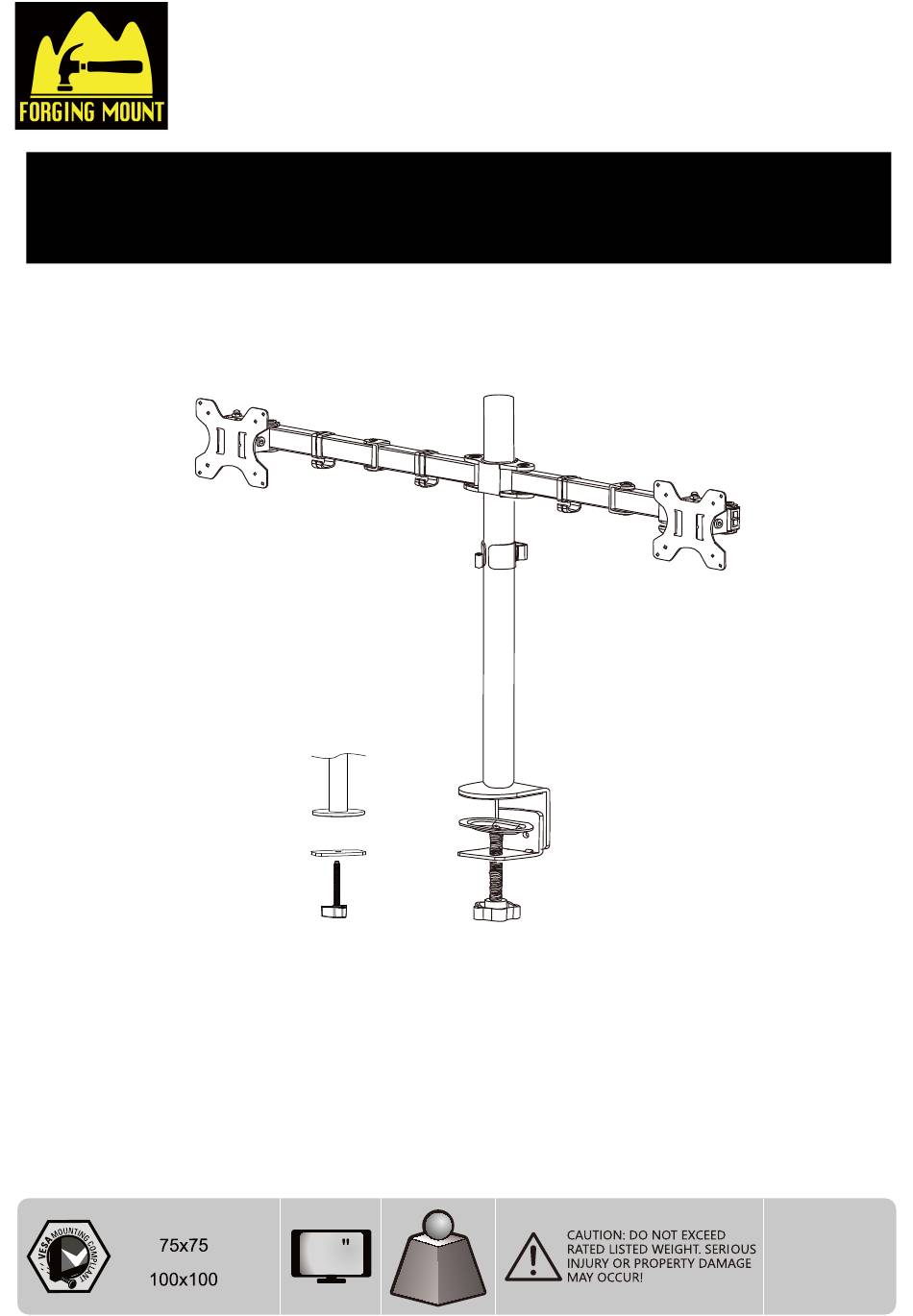

Dual Monitor Desk Mount
Instruction Manual
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
forgingmount888@163.com
Email：
We're ready to help!
mm
mm
30
22LBS
MAX
MAX
SKU :
FM4501
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Forging Mount FM4501
Summary of Contents for Forging Mount FM4501
- Page 1 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us. forgingmount888@163.com Email： We’re ready to help! SKU : FM4501 22LBS...
- Page 2 WARNING Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of FM4501 and the display monitor may does not exceed 22 ibs(10kg).Use with heavier...
- Page 3 ASSEMBLY STEPS STEP 1A Install the Base(C Clamp Mount Option) Install the clamp brace (5) to the pole (1 ) using x3 M5x16 bolts (C). See Figure 1. 8a) to the clamp brace (5 ) , see Figure 2. Install the clamp (4) to the pole assembly according to the thickness of the desktop. The thickness can be changed to 2 positions.
- Page 4 ASSEMBLY STEPS STEP 1B Install the Base( Grommet Mount Option) Option B: Grommet Base with Existing Hole If existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. Install grommet base plate ( 7 ) to the pole (1) using x3 M5x16 bolts ( C). See Figure 4. 8b) to the grommet base plate (7 ) , see Figure 5.
- Page 5 STEP 2 Assemble Arms and wire clips Install swivel arm (2) to the pole (1). Fasten the bolt with supplied Allen key (K ). Attach the wire clip ( I , J ) to the pole ( 1 ) and swivel arm (2 ).
- Page 6 S TEP 3-1 Attach the Monitor VESA Plate to the Monitors OPTION A: Flat Back Monitor OPTION B: Curved Back Monitor Attach the VESA plate ( 3) to the monitor with Attach the VESA plate ( 3) to the monitor with M4x30 M4x12 bolts ( D ).
- Page 7 STEP 5 Adjustments Tighten the bolt with the supplied Allen key (K) to fix the tilt angle. To level the monitors, remove the nut (A) and turn the bolt with the Allen key M) to raise or lower the monitor. Replace nut ( H M 1/8 in.(3mm) K 15/64 in.(6mm) Use the supplied Allen key set (L ) to make any necessary adjustments for arms.
