Instruction Manual

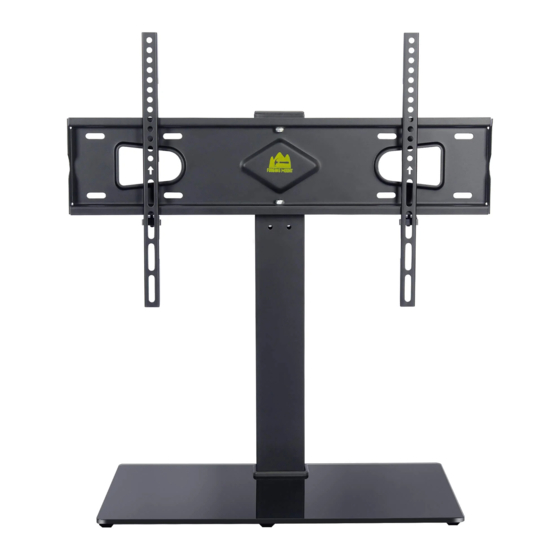

Table Top Swivel TV Stand
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? If you have any questions, please feel
free contact us.
forgingmount888@163.com
Email：
We're ready to help!
HY4104
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Forging Mount HY4104
Summary of Contents for Forging Mount HY4104
- Page 1 ® Instruction Manual Table Top Swivel TV Stand HY4104 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? If you have any questions, please feel free contact us.
- Page 2 Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of HY4104 and the display does not exceed 99 Lbs(45kg).Use with heavier televisions may result in instability causing tip over resulting in death or serious injury! This product contains small items that could be a choking hazard if swallowed.
- Page 3 C onnecting the Support Pillar to Tempered Glass S tep 1 Tempered Glass F X6 (Painting Side) Rubber Pad Support Pillar Plastic Socket Allen Key C onnecting the T V Plate to Support Pillar S tep 2 Allen Key two choices for height adjustment for the TV plate M6x50 Bolt TV Plate...
- Page 4 Step 3 Mounting the TV Bracket to Your TV (04) TV Bracket X2 2.5mm Spacer 5mm Spacer 20mm Spacer Washer with 3 holes Measure VESA and Check TV screws Measure the distance between the holes located at the 600mm back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measures are within the VESA (*) range for this wall mount.
- Page 5 Option A (For Flat Back TV2(M6x16) TV10 Option B TV3(M6x35) TV4/TV5/TV6 TV10 TV7/TV8/TV9 Option C (For Round Back TV) If the length of the screws is too long, the spacers can be used in multi-layer. If the installation fails after trying various methods, please contact customer service at forgingmount888@.com TV3(M6x35) TV4/TV5/TV6...
- Page 6 Option D (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. TV3(M6x35) TV5/TV6 TV10 TV2(M6x16) TV7/TV8/TV9 TV10 Option E Spacers maybe necessary when brackets interfere with cables or USB.
- Page 7 Step 4 Attaching TV to the TV Plate and Managing the Wires NOT INCLUDED Wire clip “Be gentle” Safety Lock Insert the safety lock in the bottom of the bracket and then tighten the screws.
- Page 8 Swivel Adjustment Adjusting the Height of the TV Step 5 Height adjustable vertical bracket(4) First choice second choice third choice If you find your TV set is too close to the base, please take off the TV from the stand. Then, change to the second choice or third choice to allow more space between TV and the tempered glass base (3).
