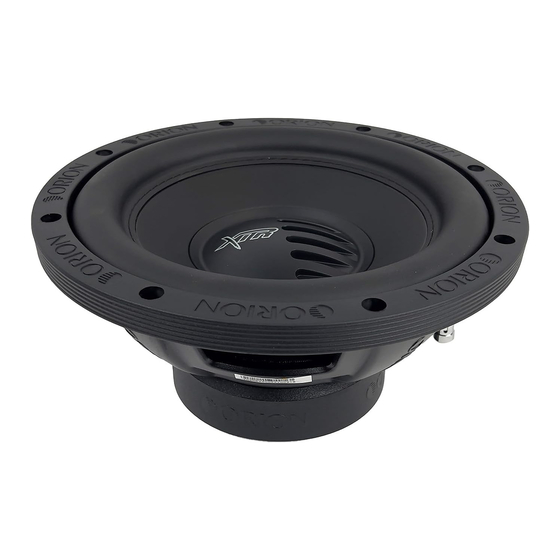

- Page 1 XTR102D XTR124D XTR104D XTR152D XTR122D XTR154D Subwoofers...
- Page 2 Thank you for purchasing this Orion product. Orion products are specif ically engineered and designed for the mobile audio environment. This manual contains important information about installation, set-up procedures and integrating your new Orion product into your vehicle. With proper care and installation, your new product will provide you with many years of high performance listening enjoyment.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS....................2 FEATURES......................3 SPECIFICATION..................4-5 WIRING CONFIGURATION..................6-10 BUILDING AN ENCLOSURE..................11 ENCLOSURE DETAILS....................12 ENCLOSURE RECOMMENDATION..............13-18 WARNING & DISCLAIMER..................19 TROUBLESHOOTING.....................20 WARRANTY......................21-22 WHAT’S IN THE BOX 1 x XTR Subwoofer 1 x Trim Ring 1 x Mounting Template 1 x Owner’s Manual 1 x Window Sticker... -
Page 4: Features
FEATURES... -
Page 5: Specification
SPECIFICATIONS Model Number XTR102D XTR104D XTR122D XTR124D XTR152D XTR154D Fs (free-air resonance, Hz) 26.5 27.1 28.3 23.8 24.5 Vas (equivalent compliance, cu. 1.861 1.775 2.535 2.618 4.872 4.377 ft.) Vas (equivalent compliance, 52.690 50.253 71.785 74.140 137.950 122.822 liters) Qms (Q, mechanical) 16.275... - Page 6 SPECIFICATIONS Model Number XTR102D XTR104D XTR122D XTR124D XTR152D XTR154D Physical Dimensions Speaker Displacement (cu ft) 0.05 0.05 0.077 0.077 0.143 0.143 Speaker Outer Diameter (inches/ 10.67/271 10.67/271 12.56/319 12.56/319 15.43/392 15.43/392 Mounting hole diameter (inches/ 9.10/230 9.10/230 10.91/277 10.91/277 13.59/345 13.59/345 Mounting depth (inches/mm) 5.31/135...
-
Page 7: Wiring Configuration
WIRING CONFIGURATION... - Page 8 WIRING CONFIGURATION Parallel - Two Speaker (Dual 4 ohm voice coils) Two dual 4 ohm voice coil woofer with voice coils in parallel and the two woofers in parallel results in a 1 ohm load to the amplifier Series/Parallel - Two Speaker (Dual 2 ohm voice coils) Two dual 2 ohm voice coil woofer with voice coils in series and then parallel the two series woofers results in a 2 ohm load to...
- Page 9 WIRING CONFIGURATION Series/Parallel - Three Speaker (Dual 4 ohm voice coils) Three dual 4 ohm voice coil woofer wired in series and then parallel the three woofers for a resulting 2.67 ohm load to the amplifier Series/Parallel - Three Speakers (Dual 2 ohm voice coils) Three dual 2 ohm voice woofer with voice coils of each woofer wired in series and then parallel the three woofers for a resulting 1.33 ohm load...
- Page 10 WIRING CONFIGURATION Series/Parallel - Four Speakers (Dual 4 ohm voice coils) Four dual 4 ohm voice coil woofer should be wired with the voice coil on each woofer in series and then parallel the four woofer for a resulting 2 ohm load to the amplifier Series/Parallel - Four Speakers (Dual 2 ohm voice coils) Four dual 2 ohm voice coil woofers should be wired with the voice coil on each woofer in series and then...
- Page 11 WIRING CONFIGURATION 2 Amplifiers - One Speaker (Dual 4 ohm voice coils) One dual 4 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 4 ohm load to each amplifier 2 Amplifiers - One Speaker (Dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 2 ohm load to each amplifier...
-
Page 12: Building An Enclosure
BUILDING AN ENCLOSURE If you’re planning to build your own enclosure and are confused in what type of enclosure best suits your needs this page will help you choose what enclosure best f its your needs. There are many different types of enclosures. The two most common used enclosures are sealed and vented enclosure. -
Page 13: Enclosure Details
ENCLOSURE DETAILS ENCLOSURE DERTAILS 1. Parameters listed are for conventional applications only, for further help please call Sound Pros Tech Support. 2. At least 0.75” MDF (Medium Density Fiberboard) is recommended for any XTR enclosure. 3. Recommended enclosures are NET box volumes, speaker and port displacement are calculated into the volume of the enclosure, you will need to add these volumes to calculate GROSS volume for the enclosure. -
Page 14: Enclosure Recommendation
ENCLOSURE RECOMMENDATION XTR102 & XTR104 SEALED ENCLOSURE RECOMMENDATIONS... - Page 15 ENCLOSURE RECOMMENDATION XTR102 & XTR104 VENTED ENCLOSURE RECOMMENDATIONS...
- Page 16 ENCLOSURE RECOMMENDATION XTR122 & XTR144 SEALED ENCLOSURE RECOMMENDATIONS...
- Page 17 ENCLOSURE RECOMMENDATION XTR122 & XTR144 VENTED ENCLOSURE RECOMMENDATIONS...
- Page 18 ENCLOSURE RECOMMENDATION XTR152 & XTR154 SEALED ENCLOSURE RECOMMENDATIONS...
- Page 19 ENCLOSURE RECOMMENDATION XTR152 & XTR154 VENTED ENCLOSURE RECOMMENDATIONS...
-
Page 20: Warning & Disclaimer
IMPORTANT: Never cut any metal that is an integral part of the vehicle’s safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized ORION Dealer. Never sacrif ice your safety for sound. -
Page 21: Troubleshooting
TROUBLESHOOTING Symptom Check Point Remedy No Soud Is the amplifier power LED 1. Check fuses in amplifier illuminated? 2. Check turn-on lead 3. Check signal lead 4. Check gain control 5. Check source unit volume 6. Clean contacts on fuse holders Is the amplifier overload LED Check speaker for short or illuminated? -
Page 22: Warranty
5. The sole responsibility of Orion under this warranty shall be limited to the repair or replacement thereof, at the sole discretion of Orion. 6. If it becomes necessary to send the product or any defective part to... - Page 23 ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. 10. Should you have any difficulties with the performance of this product during warranty or with any Orion authorized service center, you may contact Orion by emailing us at support@orioncaraudio.com.
- Page 24 3130 WEST 15TH AVENUE HIALEAH, FLORIDA 33012 TEL: 786.464.0247 EMAIL: SUPPORT@ORIONCARAUDIO.COM ORIONCARAUDIO.COM PROUD SPONSOR OF Copyright ORION All rights reserved. Any unauthorized reproduction or use of any Orion logos, images or design elements is strictly prohibited by law. Specifications subject to change without notice. REV. 23.3...
