HYSEN HY08AC Manual

WIFI fan coil unit thermostat manual
Search for "Smart RM" or "Smart Life"
Download the Wifi App from Google Play or
APP Store

Technical data

Voltage: AC90~230VAC 50/60Hz Output：On/off type
Current: 3A Display temperature range：0~55°C
Accuracy: ±0.5ºC Work environment:：0~50°C
Setting range: 5ºC - 35ºC Size：86 * 86mm
Sensor:： NTC(10k)1%

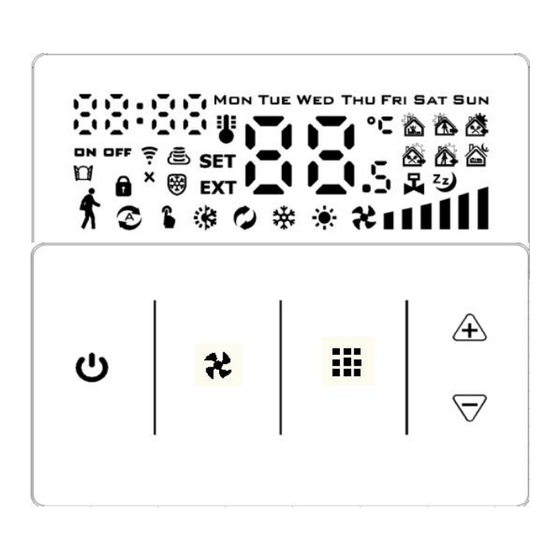

Button

Icon
Increase key: short press to adjust data,long press to display external senor temperature
(When the sensor type is N3 in the advanced option)
Mode switching key: short press to switch between manual mode and program mode,
long press to set special function parameters
Decrease key：short press to adjust data, long press to lock/unlock keys
Fan speed selection key: short press to set fan speed (confirm key when setting
parameters), long press to enter sleep function setting
Power key
Press them together to enter matching wifi mode
WIFI connection, flashing as EZ wifi pair mode
Wifi status: Disconnection
Program mode;run preset program
cloud icon ,if flashing ,then enter AP wifi pair mode
Temporary manual mode
Holiday mode, Holiday days and temperature can be set to run in countdown mode

Operation

Turn on the thermostat, press and hold
the key combination " " and "
Activate WIFI distribution network icon
Description
Child lock
Manual mode
Clock
Operation Description
Fan Speed
Power on state ,press " " to choose fan speed （high
（low ）、(Auto:
Power on state, press "
"
Setting time
Minute "mm" flashing， press " " or "
same method to set hour and week.finally press
Timer After connected wifi ,click "cloud" on the right corner of APP to set
Power on state,long press "
to choose mode:
Working mode
" is mean cooling mode," "is mean heating mode,"
"
ventilation mode；
Control valve When cooling mode(heating mode),indoor temperature more（lower) 1℃ than
setting temperature, open valve; after equal, closed valve,fan is still running.
Ventilation mode（fan is not control by temperature as default）
If fan be controlled by temperature,then valve and fan will be closed.
Locked
long press to lock/unlock keys
function
Alarm E1 ：internal sensor error
E2 ：external sensor error
Sleep mode Power on state, long press
press to cancel
Remark：Sleep mode is not available when run ventilate mode or auto mode
Manual/
Power on state, short press"
program mode

Program mode setting

Thermostat support set different time and different temperature；Compatible with 5+2,6+1,7days
Program mode type
Long press 3-5S，next short press
setting，use and to adjust value . After short press
） 、 （mid
animation
)
" 3-5s ， chose "02" ， then press " " to set time：
" to adjust， press " " to next setting.as
or wait 5S to exit
" 3-5S, short press " to choose "01",next press
is mean auto mode
, is flashing, short press to run it，short
" to switch manual mode/program mode
to choose "03"，then short press
to set next time section setting
） 、
"is mean
to program mode
