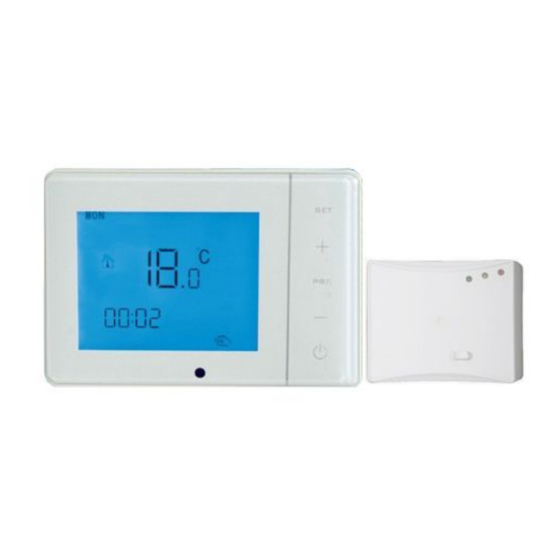

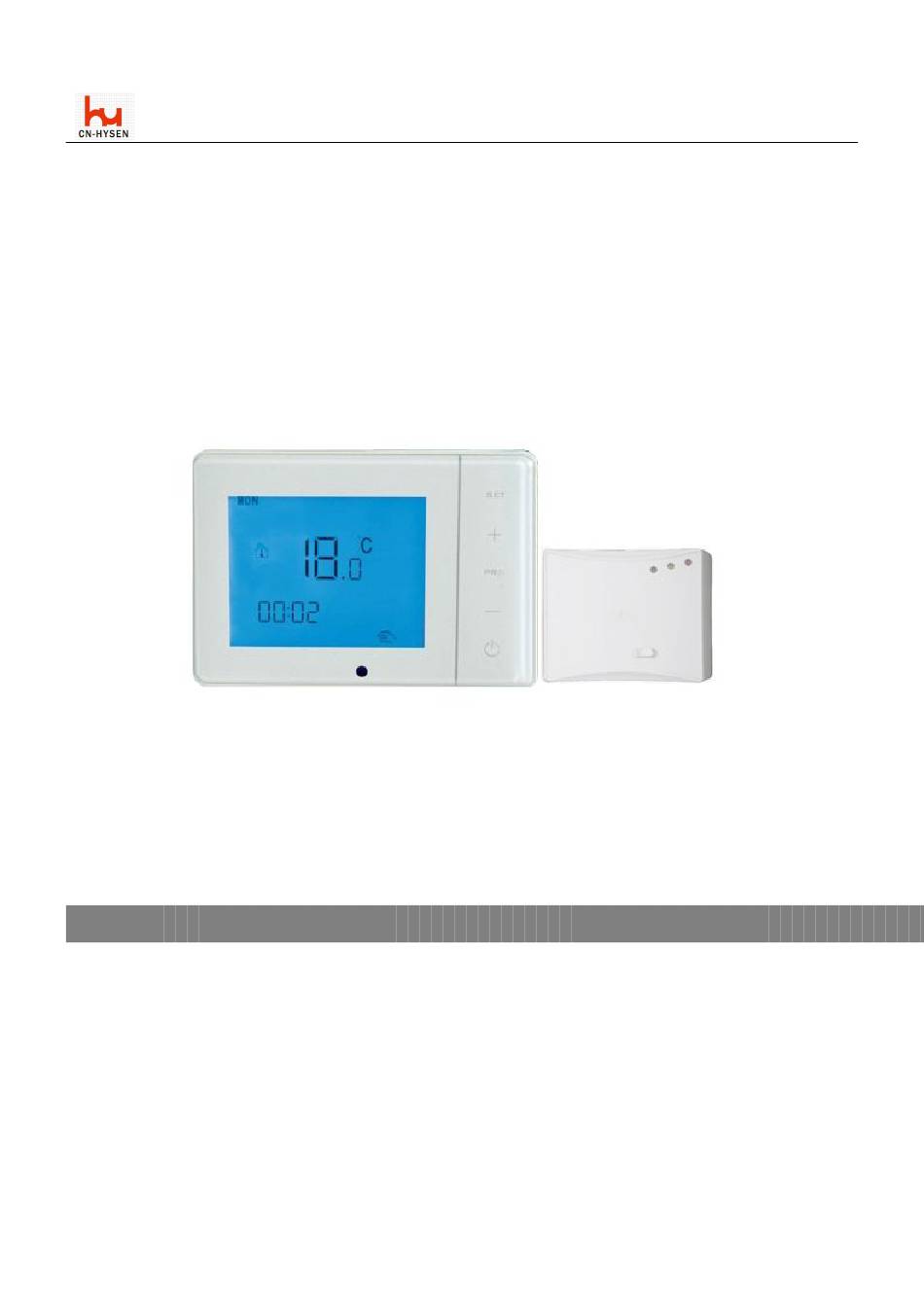

Digital Touch Screen Room Thermostat
HY01RF Manual
Preface
HY01RF/MRF (with-wire /radio frequency / multi-channel RF) series are room thermostats with 7 days
programmable function. This system can completely control the boiler or heating system according to the
program preset when out of the factory or set by the customers themselves. The controller with electricity
supplied by the batteries can be put any where in the ordinary room, which makes the work and life of the
installers and the customers become more simple and comfortable. For HY01RF model, the receiver of this
device is connected directly with the hang boiler or the other heating systems. The transmitter adopts special
radio signal and receiver communication with characteristics of strong wall penetration, stable communication,
no interference and low electric consumption. The HY01MRF model can control independently different
temperature in the maximum4 rooms by the multi-channel RF. The damager of radialization to the body is
lower than using the radiogram or TVset.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HYSEN HY01RF
Summary of Contents for HYSEN HY01RF
- Page 1 For HY01RF model, the receiver of this device is connected directly with the hang boiler or the other heating systems. The transmitter adopts special radio signal and receiver communication with characteristics of strong wall penetration, stable communication, no interference and low electric consumption.
- Page 2 This product has the following characteristics 1) Heating control 2)programming function of 5 +2 weeks (advanced settings, you can select 6 +1 and 7-day programming function also can canc el the programming function ),It has 6 setting times for a day...
- Page 3 Present time represent keys are locked , press “ ”at the same time for over 3 seconds to lock the ”and“ operation panel. At the keys locked state, press “ ” and “ ” at the same time for over 5 seconds to unlock the operation panel Present ambient temperature Indoor temperature...
- Page 4 Scope of Control Applications 1. Control of wall-mounted boiler 3. Control of water pump; 2. Control of Thermal Actuator or electromagnetic valve 4. Ventilation contro Run Mode Factory Preset Mode Interval Monday to the default Saturday and the default Friday value Sunday value...
- Page 5 Temporary at programme mode,press “ ” to adjust ”or“ manual mode the value, it will automatic enter into temporary manual mode advanced options advanced options can be classified to two sets 1) MODE 1： Hold down at the same time for 3 seconds,it will display A1-A9,then press to switch between these options Displaying Option...
- Page 6 setting Range:30°C~70°C temperature highest limiting value （A8） Week : represent 7days programme programme ：represent6+1 programme choice（A9） ：represent5+2 programme “ ”represent programme is canceled 2) MODE 2： At power off state, hold down “ ”and “ ” and “ ”at the same time for 3 seconds it will display B1-B3,then press “...
- Page 7 Wring Illustration 1、Wiring Terminals Wiring Terminal Remarks AC Neutral AC Live NO (Normally-Open point) COM (Public terminal of relay) NC (Normally-Closed point) 2、 Illustration Symbol B： Wall Mounted Gas Boiler U： Water Pump, Thermal Actuator or electromagnetic valve 3 control picture： Fig.2: Dimensional Diagram –...
