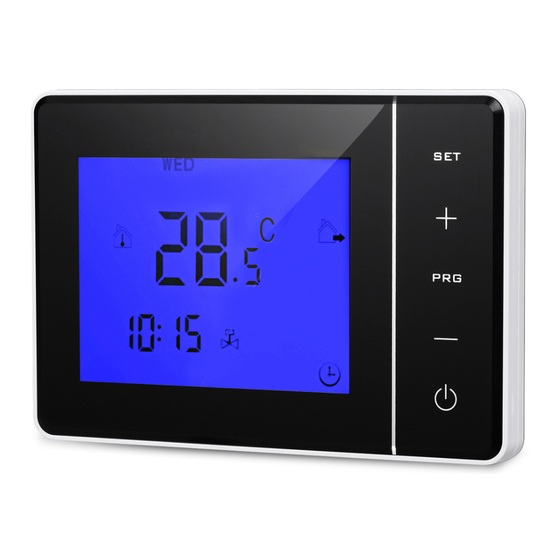

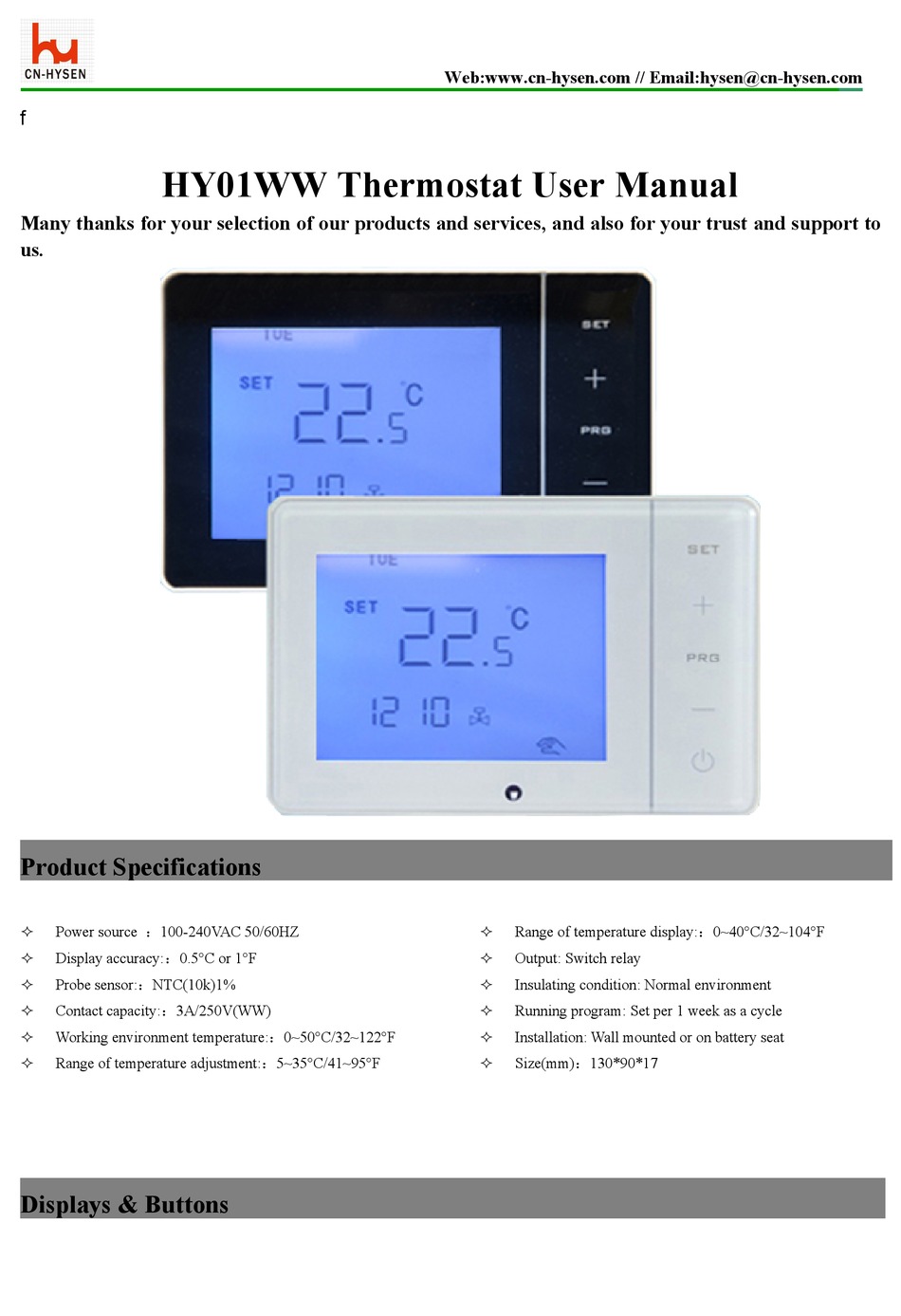

HY01WW Thermostat User Manual
Many thanks for your selection of our products and services, and also for your trust and support to
us.
Product Specifications
Power source ：100-240VAC 50/60HZ
Display accuracy:：0.5°C or 1°F
Probe sensor:：NTC(10k)1%
Contact capacity:：3A/250V(WW)
Working environment temperature:：0~50°C/32~122°F
Range of temperature adjustment:：5~35°C/41~95°F
Displays & Buttons
Web:www.cn-hysen.com // Email:hysen@cn-hysen.com
Range of temperature display:：0~40°C/32~104°F
Output: Switch relay
Insulating condition: Normal environment
Running program: Set per 1 week as a cycle
Installation: Wall mounted or on battery seat
Size(mm)：130*90*17
