HYSEN HY607 User Manual

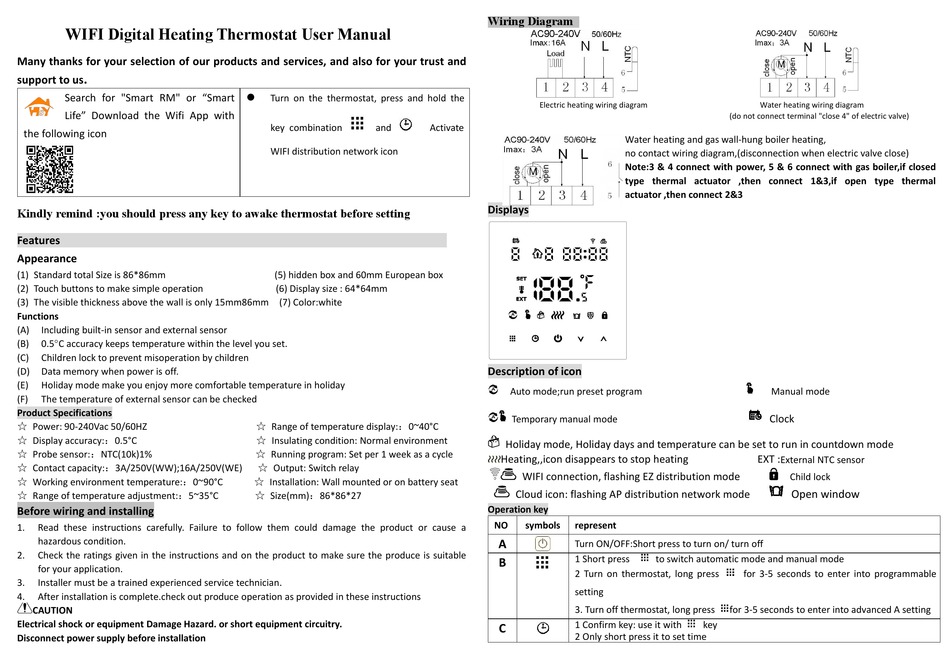

WIFI Digital Heating Thermostat User Manual
Many thanks for your selection of our products and services, and also for your trust and
.
support to us
Search for "Smart RM" or "Smart
Life" Download the Wifi App with
the following icon
Kindly remind :you should press any key to awake thermostat before setting
Features
Appearance
(1) Standard total Size is 86*86mm
(2) Touch buttons to make simple operation
(3) The visible thickness above the wall is only 15mm86mm (7) Color:white
Functions
(A) Including built-in sensor and external sensor
(B) 0.5°C accuracy keeps temperature within the level you set.
(C) Children lock to prevent misoperation by children
(D) Data memory when power is off.
(E) Holiday mode make you enjoy more comfortable temperature in holiday
(F) The temperature of external sensor can be checked
Product Specifications
☆ Power: 90-240Vac 50/60HZ
☆ Display accuracy:：0.5°C
☆ Probe sensor:：NTC(10k)1%
☆ Contact capacity:：3A/250V(WW);16A/250V(WE)
☆ Working environment temperature:：0~90°C
☆ Range of temperature adjustment:：5~35°C
Before wiring and installing
1. Read these instructions carefully. Failure to follow them could damage the product or cause a
hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the produce is suitable
for your application.
3. Installer must be a trained experienced service technician.
4. After installation is complete.check out produce operation as provided in these instructions
CAUTION
Electrical shock or equipment Damage Hazard. or short equipment circuitry.
Disconnect power supply before installation

Turn on the thermostat, press and hold the
key combination and
WIFI distribution network icon
(5) hidden box and 60mm European box
(6) Display size : 64*64mm
☆ Range of temperature display:：0~40°C
☆ Insulating condition: Normal environment
☆ Running program: Set per 1 week as a cycle
☆ Output: Switch relay
☆ Installation: Wall mounted or on battery seat
☆ Size(mm)：86*86*27
Wiring Diagram
Electric heating wiring diagram
Activate
Displays
Description of icon
Auto mode;run preset program
Temporary manual mode
Holiday mode, Holiday days and temperature can be set to run in countdown mode
Heating,,icon disappears to stop heating
WIFI connection, flashing EZ distribution mode
Cloud icon: flashing AP distribution network mode
Operation key
NO symbols represent
A
Turn ON/OFF:Short press to turn on/ turn off
1 Short press
B
2 Turn on thermostat, long press
setting
3. Turn off thermostat, long press
1 Confirm key: use it with
C
2 Only short press it to set time
Water heating wiring diagram
(do not connect terminal "close 4" of electric valve)
Water heating and gas wall-hung boiler heating,
no contact wiring diagram,(disconnection when electric valve close)
Note:3 & 4 connect with power, 5 & 6 connect with gas boiler,if closed
type thermal actuator ,then connect 1&3,if open type thermal
actuator ,then connect 2&3
Manual mode
Clock
EXT :
External NTC sensor
Child lock
Open window
to switch automatic mode and manual mode
for 3-5 seconds to enter into programmable
for 3-5 seconds to enter into advanced A setting
key
