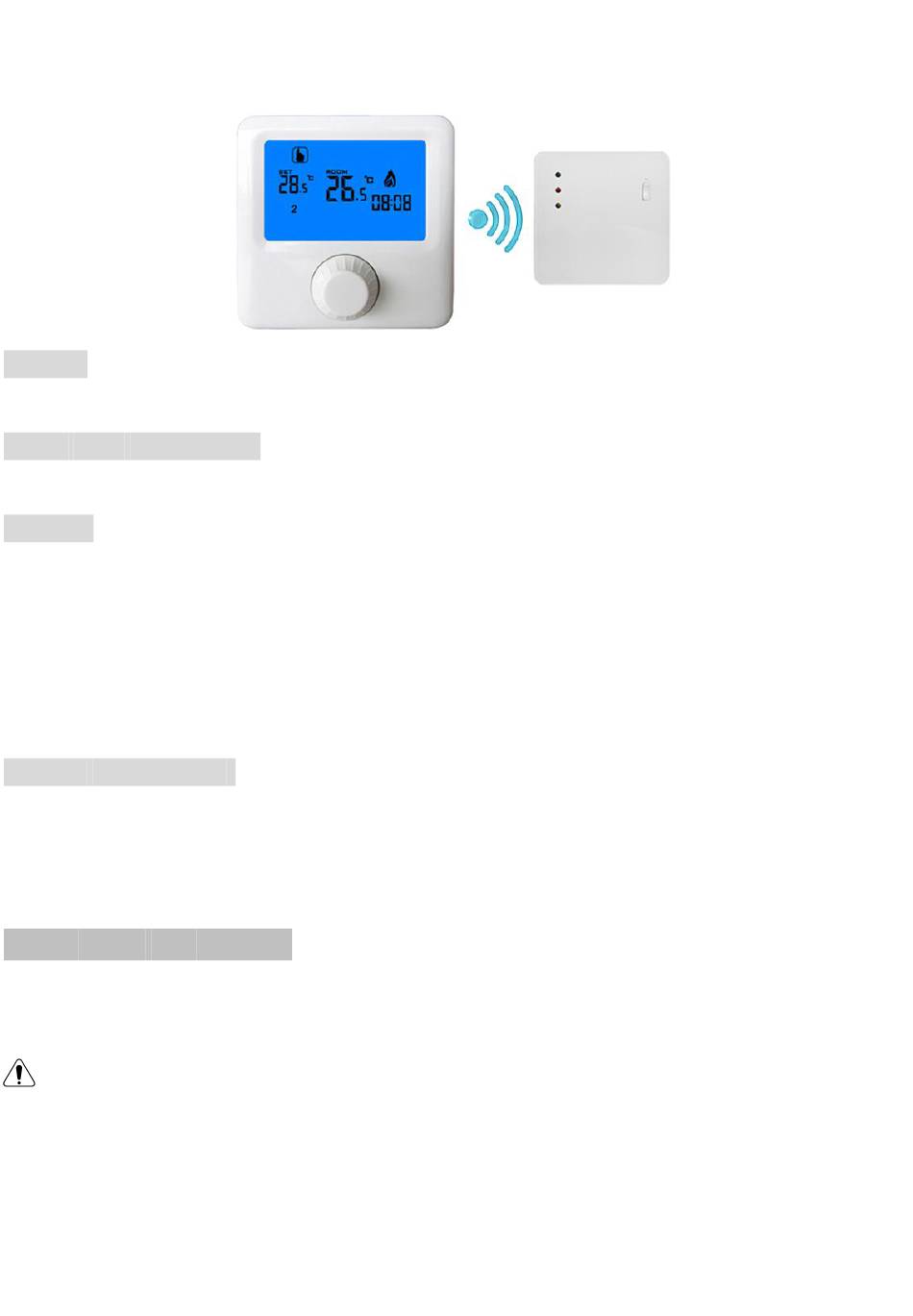

HY06RF-BW/WW/WE Thermostat User Manual
Many thanks for your selection of our products and services, and also for your trust and support to us.

Packing

Thermostat 1pc
User Guide 1pc

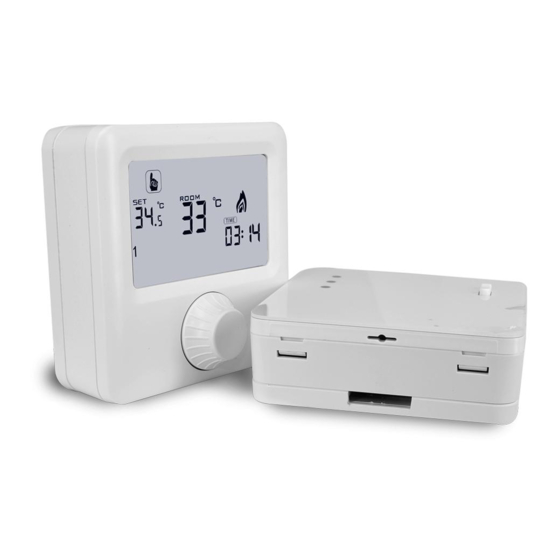

About Your Thermostats

HY06RF series range has been developed to control electric underfloor,water heating or water/gas boiler systems,all design have
backlight function

Features

1． Standard total Size is 86*86mm
2． Display size is 64*64mm
3． Touch buttons to make simple operation
4． Color：white,black,champagne golden
5． The visible thickness above the wall is only 13mm
6． 86mm hidden box and 60mm European box
7． Flat mounting,it is easy to install
8． Including built-in sensor and external sensor
9． 0.5°C accuracy keeps temperature within the level

Product Specifications

Power: two AA* 1.5V alkaline batteries
Display accuracy:：0.5℃
Probe sensor:：NTC(10k)1%
Contact capacity:：5A/230V
Working environment temperature:：0~50°C
Range of temperature adjustment:：5~35°C

Before wiring and installing

1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the produce is suitable for your application.
3. Installer must be a trained experienced service technician.
4. After installation is complete.check out produce operation as provided in these instructions
CAUTION
Electrical shock or equipment Damage Hazard. or short equipment circuitry.
Disconnect power supply before installation
Screws 2pcs
Floor Sensor(3m) 1pc(Optional)
you set.
10． Children lock to prevent misoperation by children
11． Data memory when power is off.
12． 5+2 days programmable and it can be DIY
Programmable;2 preset programmable modes for
your choice,it is most convenient for your use.
13． Holiday mode make you enjoy more comfortable
temperature in holiday
14． The temperature of external sensor can be checked
Range of temperature display:：0~40°C
Output: Switch relay
Insulating condition: Normal environment
Running program: Set per 1 week as a cycle
Installation: Wall mounted or on battery seat
Size(mm)：86*86*23
