ver. 2.0.2

Smart roller

User manual

Dear customer, thank you for your purchase.

ENGLISH

www.reeffactory.com

Table of Contents

Need help?

Do you have a question about the Smart roller and is the answer not in the manual?

Questions and answers

Summary of Contents for Reef Factory Smart roller

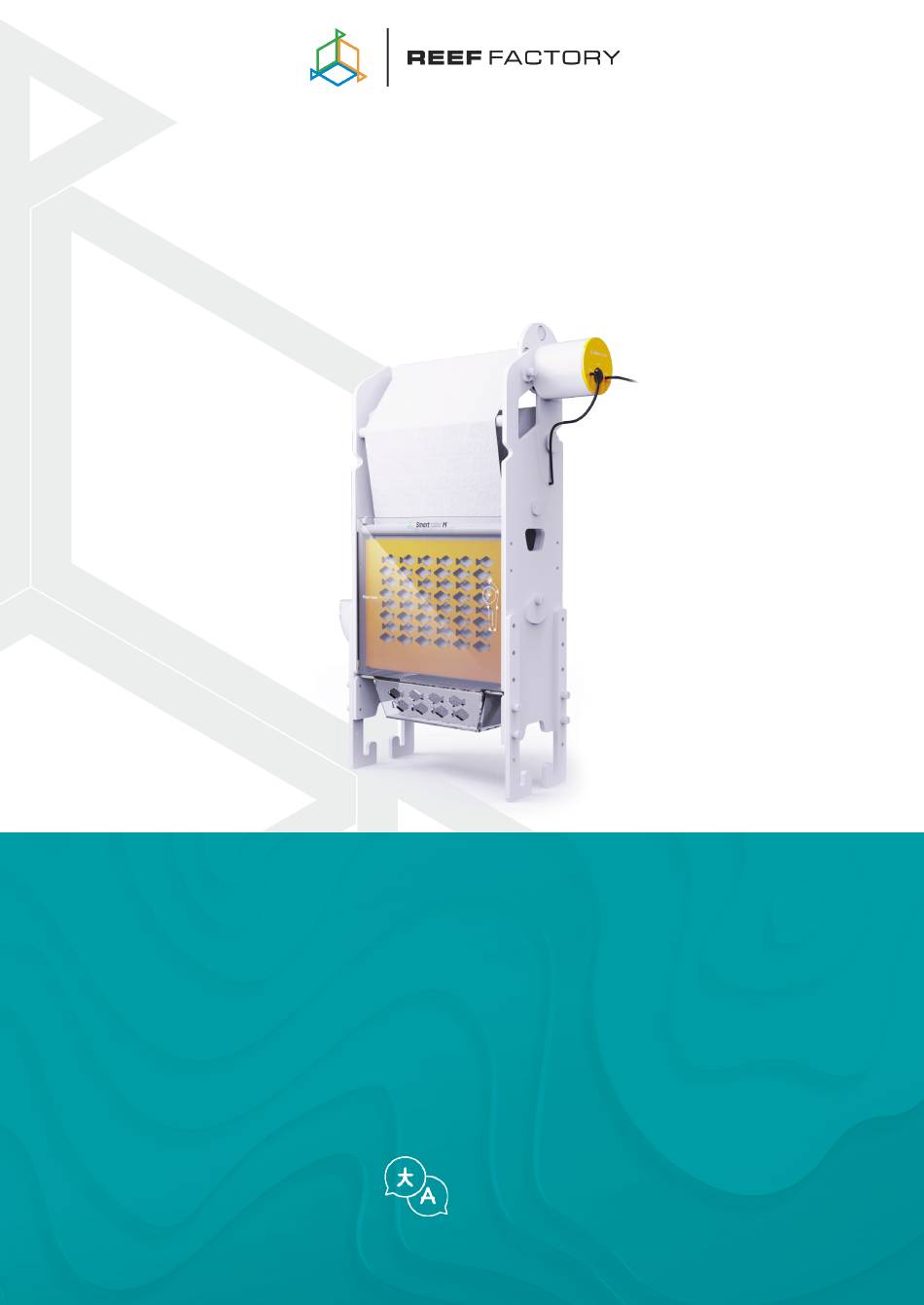

Page 1 2.0.2 Smart roller User manual Dear customer, thank you for your purchase. ENGLISH www.reeffactory.com...
Page 2: Table Of Contents
IMPORTANT NOTICE! Please read the entire user manual very carefully before setting up and using the device. There may be slight differences in the content between what is presented on the screen of the device and the descriptions in the manual Reef Factory 2023 Smart roller manual ©...
Page 3: Kit Contents
9. basket non-woven fabric tensioning basket 2. power supply 10. liquid level sensor holder 3. drive with a liquid level sensor non- 11. legs for mounting Smart roller 4. woven fabric 12. ﬂow adjustment ﬂap 5. roll for clean non-woven fabric 13.
Page 4: Installation Of The Device
II. Installation of the device Pull out the basket stretching the ﬂeece and the basket for ﬁlter media and absorbers. Reef Factory 2023 Smart roller manual ©...
Page 5 2. You can use a screwdriver to insert the screws. Pay particular attention to the force with which the plastic parts are screwed in, so as not to damage them. Reef Factory 2023 Smart roller manual ©...
Page 9 Using the shorter screws (type B), screw the take-up roller drive to the dedicated place. Reef Factory 2023 Smart roller manual ©...
Page 10 Use the shorter screws (type B) to screw the liquid level sensor bracket to the basket. Reef Factory 2023 Smart roller manual ©...
Page 11 Unscrew the nut on the liquid level sensor, insert it into the holder and tighten it. Reef Factory 2023 Smart roller manual ©...
Page 12 Unpack the ﬂeece roll without damaging the sticker and pass the ﬂeece through the device. Leave a minimum of 30 cm of ﬂeece on the right side. Reef Factory 2023 Smart roller manual ©...
Page 13 Put the fabric tension basket in place. Make sure the sensor is on the motor side. Reef Factory 2023 Smart roller manual ©...
Page 14 Tighten the ﬂat screws to lock the basket in place, then thread the roll through the ﬂeece. Reef Factory 2023 Smart roller manual ©...
Page 16 Install the take-up reel in place and press down on the motor pin. Pay attention to the shape of the pin, it has a special notch to prevent the motor from slipping. Insert the roll by aligning the 2 pieces together. Reef Factory 2023 Smart roller manual ©...
Page 17 Connect the device to the power adapter and mains power and tighten the roller while holding down the "Manual" button. Manual winding should only be carried out with the roll on the non-woven fabric. Its absence will block the device. Reef Factory 2023 Smart roller manual ©...
Page 18 Place the media basket in the housing, lift and insert the basket into the anti-slip notches. Reef Factory 2023 Smart roller manual ©...
Page 19 Install device in the sump and connect the water supply. The connection is adjustable in angle and diameter. Adjust the connection to your needs. Reef Factory 2023 Smart roller manual ©...
Page 20 When the water drain level is stable, adjust the water level in the device by sliding the ﬂap so that the water inside the device is at the "Water level". Connect the device to the power supply and go to device conﬁguration. Reef Factory 2023 Smart roller manual ©...
Page 21: Initial Configuration
If you do not have your aquarium yet, use the option “Add an aquarium” in the lower left corner of the screen and provide the necessary information. If you already have your aquarium in the Smart Reef app, proceed to the next step. Reef Factory 2023 Smart roller manual ©...
Page 22 This allows the app to connect devices to Wi-Fi networks more easily. Select from the scrolling list the device you want to add to your Smart Reef account and press “NEXT”. Reef Factory 2023 Smart roller manual ©...
Page 23 NOTE: Reef Factory devices only support the 2.4 GHz Wi-Fi network band. If your router generates 2.4 GHz and 5 GHz bands, indicate the name of the 2.4 GHz network.
Page 24 Allow the Smart Reef app, to temporarily connect to set up a Wi-Fi network. Congratulations! The device has been correctly added to your Smart Reef account and will appear in the list of devices within 60 seconds. Reef Factory 2023 Smart roller manual ©...
Page 25: Device Operation Configuration
Select from the list the delay in the start of rewinding the non-woven fabric when the sensor detects a high water level. Select from the list with what kind of notice you want to receive a notiﬁcation about the end of the ﬁlter fabric. Reef Factory 2023 Smart roller manual ©...
Page 26: Configuration Of A New Filter Fabric
Select a new or used roll from the menu. If you are using a roll, you will need to specify the outside diameter of the roll to calculate the amount of ﬂeece remaining. Then accept the choice. The new roll has been conﬁgured. Reef Factory 2023 Smart roller manual ©...
Page 27: Replacing The Used Filter Fabric
Remove the empty roll from the housing, then remove the used ﬂeece roll from the motor. Unscrew the screws securing the fabric tensioning basket and pull out the ﬂuid level sensor basket. Remove the used ﬂeece from the rolls and dispose of it in a suitable waste container. Reef Factory 2023 Smart roller manual ©...
Page 28 Unpack and pass the new ﬂeece through the device, leaving a minimum of 30 cm on the right side. Reef Factory 2023 Smart roller manual ©...
Page 29 Place the ﬂeece tensioning basket in the device and screw it with ﬂat screws, then mount the new ﬂeece together with the roller in the holder. Reef Factory 2023 Smart roller manual ©...
Page 30 Using the label from the packaging, glue the ﬂeece to the empty winding reel, wind it in 3 layers and mount it on the motor spindle. Reef Factory 2023 Smart roller manual ©...
Page 31 Connect the device to the power supply and mains power supply and tighten the fabric roll while holding down the "Manual" button, then connect the water supply. Reef Factory 2023 Smart roller manual ©...
Page 32 From now on, in the device menu you will ﬁnd information about the amount of non-woven fabric left on the roll, the expected time for which it will be enough and statistics from the current and previous days. Reef Factory 2023 Smart roller manual ©...
Page 33: Resetting The Device To Factory Settings
Enter your current password (default is reeffactory) then press "OK". In the next step, enter a new password and press "OK", then conﬁrm the new password and press "OK". Congratulations! The password has successfully changed Reef Factory 2023 Smart roller manual ©...
Page 34: Device Update
If the update doesn't complete within 30 minutes, reset your device. After the update, check the device settings, in some cases, as a result of the update, I may change or return to the factory settings. Reef Factory 2023 Smart roller manual ©...
Page 35: Information And Warnings
Proper handling of waste electrical and electronic equipment contributes to avoiding consequences harmful to human health and the natural environment, resulting from the presence of hazardous components and improper storage and processing of such equipment. Reef Factory 2023 Smart roller manual ©...
Page 36 Any changes or modiﬁcations not expressly approved by Reef Factory could void the user's authority to operate the RF Module and/or the product that incorporates the RF Module. The user is cautioned to maintain a 20 cm (8 inch) spacing from the product to ensure compliance with FCC regulations.
Page 37: Warranty Terms
XI. Warranty terms Reef Factory Sp. z o. o. does not warrant uninterrupted or error-free operation of this product. The warranty covers only technical hardware problems that occurred within the warranty period and under normal conditions of use. 1. Devices manufactured by Reef Factory are covered by a warranty for the period of: 24 months for individual and business customers using consumer products.
Page 38 Customer accepts that during the repair or replacement of the product, the data may be deleted. 16. The Guarantor is not responsible for the lack of full compliance (compatibility) of the product in operation Reef Factory 2023 Smart roller manual ©...
Page 39 21. The Guarantor is not liable for direct or indirect damages caused by a defect or failure of the device and for damages arising during the period of repairs or replacement of the device related to the inability to use the device. Reef Factory 2023 Smart roller manual ©...
Page 40: Technical Information
12V DC 1A / 100V-230VAC 50-60Hz (AC-DC adapter ) Dimensions (mm) 375x121x479 mm Weight 3120 g The device is manufactured with different versions of power cords and power sockets, depending on the country in which it will be used Reef Factory 2023 Smart roller manual ©...
Page 41: Knowledge Base And Technical Support
XIII. Knowledge base and technical support Need our help? Check out our knowledge base! Help Center - Jira Service Management Have more questions? Use the form in the link above or write us an email - support@reeffactory.com Reef Factory 2023 Smart roller manual ©...
