Summary of Contents for Reef Factory Thermo control

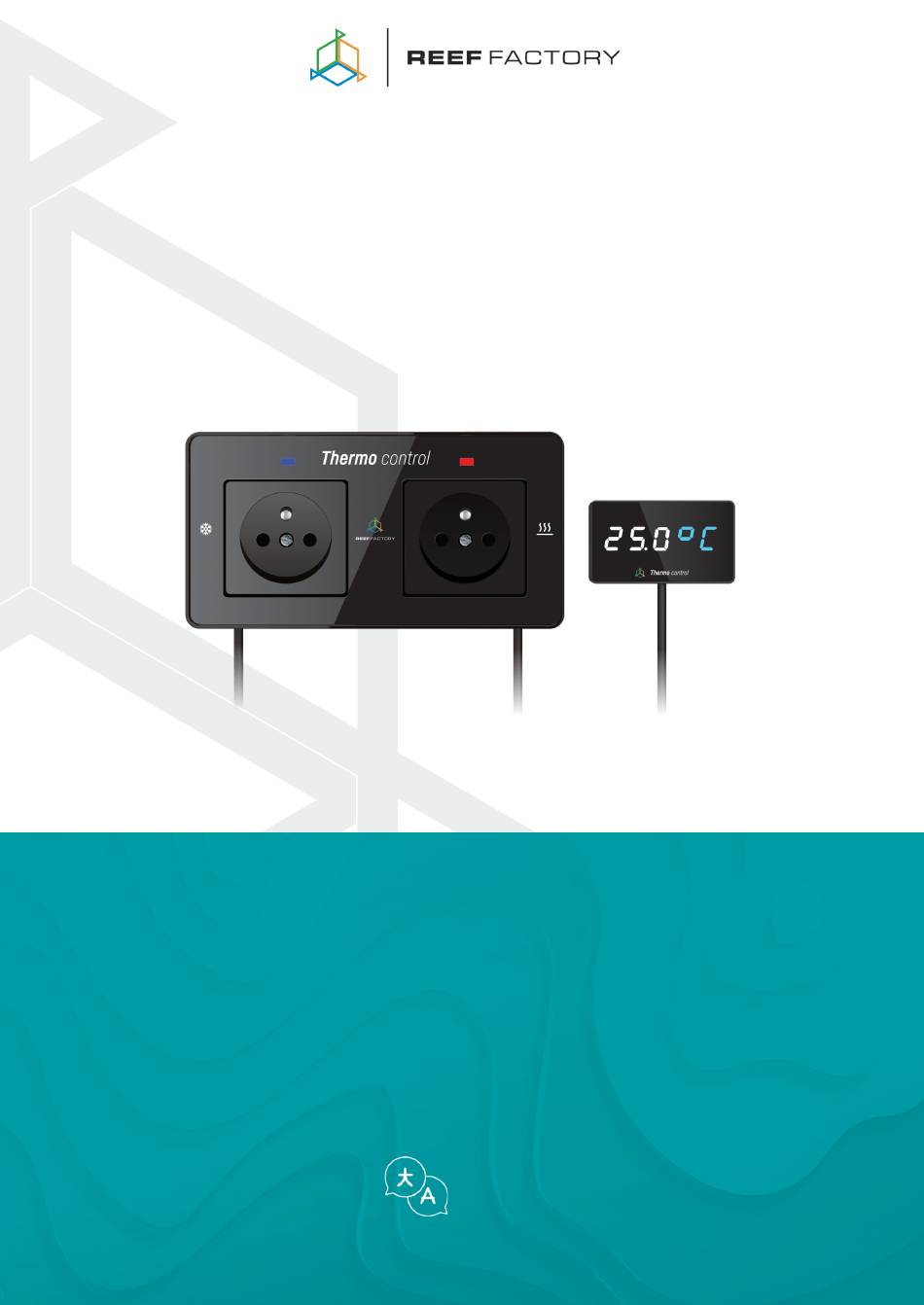

- Page 1 2.0.1 Thermo control User Manual Dear customer, thank you for your purchase. English www.reeffactory.com...
-
Page 2: Table Of Contents
IMPORTANT INFORMATION! Please read the entire user manual very carefully before setting up and using the device. There may be slight differences in the content between what is presented on the screen of the device and the descriptions in the manual. Reef Factory 2023 Manual Thermo control ©... -
Page 3: Assembly Of The Device
ATTENTION! The sensor must be in a safe place with a constant temperature. Place it away from water surfaces and heat sources such as heaters. 3. Connect the heating and cooling device as marked. Reef Factory 2023 Manual Thermo control ©... - Page 4 If more than one heater is used, an appropriately rated power strip can be used. The maximum load of the device is 1000 W for the heating socket and 1000 W for the cooling socket. Reef Factory 2023 Manual Thermo control ©...
-
Page 5: Initial Configuration
If you do not have your aquarium yet, use the option “Add an aquarium” in the lower left corner of the screen and provide the necessary information. If you already have your aquarium in the Smart Reef app, proceed to the next step. Reef Factory 2023 Manual Thermo control ©... - Page 6 This allows the app to connect devices to Wi-Fi networks more easily. Select from the scrolling list the device you want to add to your Smart Reef account and press “NEXT”. Reef Factory 2023 Manual Thermo control ©...
- Page 7 NOTE: Reef Factory devices only support the 2.4 GHz Wi-Fi network band. If your router generates 2.4 GHz and 5 GHz bands, indicate the name of the 2.4 GHz network.
- Page 8 Allow the Smart Reef app, to temporarily connect to set up a Wi-Fi network. Congratulations! The device has been correctly added to your Smart Reef account and will appear in the list of devices within 60 seconds. Reef Factory 2023 Manual Thermo control ©...
-
Page 9: Configuration Of The Device Operation
Set the audible alarm to on or off and proceed to the next step. ATTENTION! For safety reasons, the audible alarm should always be on to alert you when the water temperature changes. Reef Factory 2023 Manual Thermo control ©... -
Page 10: Temperature Calibration
If you want the temperature value indicated on the Thermo control device to be consistent with the indication of another temperature meter, you can calibrate it. - Page 11 After the calibration process, the Thermo control device will indicate the corrected temperature in the menu, and when you press the "SETTINGS" button again, information about the value of the measurement difference after calibration will additionally appear.
-
Page 12: Resetting The Device
Enter your current password (default is reeffactory) then press "OK". In the next step, enter a new password and press "OK", then confirm the new password and press "OK". Congratulations! The password has successfully changed Reef Factory 2023 Manual Thermo control ©... -
Page 13: Replacement Of Fuses
These fuses are identical and interchangeable (F5A type tubular glass fuse). The middle fuse is placed slightly higher and protects the Thermo control device, and its parameters are different from the others, so it cannot be interchanged with them (tube glass fuse type F400mA). If you do not have enough knowledge to assess for yourself whether the fuse is operational or whether it needs to be replaced, contact the nearest electrical service center in your area. -
Page 14: Updating The Device
If the update doesn't complete within 30 minutes, reset your device. After the update, check the device settings, in some cases, as a result of the update, I may change or return to the factory settings. Reef Factory 2023 Manual Thermo control ©... -
Page 15: Information And Warnings
IX. Information and warnings IMPORTANT INFORMATION! The Thermo control is not completely watertight. Avoid immersion, splashing and high humidity. Exposure to these factors may cause permanent damage to the device. IMPORTANT INFORMATION! The device operates under mains voltage - there is a risk of electric shock. - Page 16 Any changes or modifications not expressly approved by Reef Factory could void the user's authority to operate the RF Module and/or the product that incorporates the RF Module. The user is cautioned to maintain a 20 cm (8 inch) spacing from the product to ensure compliance with FCC regulations.
-
Page 17: Warranty Conditions
X. Warranty conditions Reef Factory Sp. z o. o. does not warrant uninterrupted or error-free operation of this product. The warranty covers only technical hardware problems that occurred within the warranty period and under normal conditions of use. 1. Devices manufactured by Reef Factory are covered by a warranty for the period of: 24 months for individual and business customers using consumer products. - Page 18 Customer. In particular, this applies to network devices whose configuration may limit the ability to connect and exchange data between the device and the server. Reef Factory 2023 Manual Thermo control ©...
- Page 19 21. The Guarantor is not liable for direct or indirect damages caused by a defect or failure of the device and for damages arising during the period of repairs or replacement of the device related to the inability to use the device. Reef Factory 2023 Manual Thermo control ©...
-
Page 20: Technical Information
100V-230V AC 50-60 Hz Dimensions (mm) 160x85x50 Weight 690 g The device is manufactured with different versions of power cords and power sockets, depending on the country in which it will be used Reef Factory 2023 Manual Thermo control ©... - Page 21 Do you need our help? Check out our knowledge base! www.reeffactory.com/support Do you have more questions? Use the form in the link above or write us an email - support@reeffactory.com Reef Factory 2023 Manual Thermo control ©...
