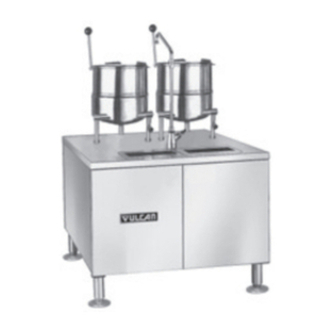

Two 24 quart 2/3 jacketed tilting kettles on electric boiler base

Advertisement

Quick Links

SPECIFICATIONS:
Two 24 quart
2
/
jacketed tilting steam kettles mounted on a
3
36" wide electric boiler base, Vulcan-Hart Model No. 2T2036E.
Steam jacketed kettles mounted on 28" high base cabinet
with front full height doors, slip-off stainless steel side and
aluminized rear panel with 6" adjustable legs with flanged feet
for anchoring. Fully welded hemispheric bottom kettle with
type 304 stainless steel jacket and type 316 stainless steel
liner. Jacket tested to 50 psi (3.4 kg/cm
on right trunnion leg. 12" single temperature deck mounted
faucet. Requires a 208 or 240 volt, 60 hz, 3 phase power
supply and a separate 120 volt, 60 Hz, 1 phase control circuit,
3 amp.
Exterior dimensions:
Cabinet: 36"w x 33"d x 28"h on 6" adjustable legs. Overall
height to the lip of the kettles - 46", to the top of the
handle - 54".
U L listed. Classified by U L to NSF Std. #4. Meets ASME
Code.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32379 (10-03)
2
). Steam control valve
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
MODEL 2T2036E
2
TWO 24 QUART
/
JACKETED TILTING
3
KETTLES ON ELECTRIC BOILER BASE
STANDARD FEATURES
2
Two
/
jacketed tilting steam kettles, 24 quart capacity
3
each.
Steam jacketed kettles mounted on 28" high base cabinet
with front full height doors, slip-off stainless steel side and
aluminized rear panel with 6" adjustable legs with flanged
feet for anchoring.
Fully welded hemispheric bottom kettle with type 304 stain-
less steel jacket and type 316 stainless steel liner. Jacket
tested to 50 psi (3.4 kg/cm
Steam control valve on right trunnion leg.
12" single temperature deck mounted faucet.
CSD-1 code compliant boiler.
Electric 24 KW steam boiler.
Requires a 208 or 240 volt, 60 Hz, 3 phase power supply
and a separate 120 volt, 60 Hz, 1 phase control circuit,
3 amp.
Water filter system, SPS620V. Includes second year extended
limited water associated parts and labor warranty.
One year limited parts and labor warranty.
OPTIONS
Correction package.
-
Cabinet door with hasp (lock by others).
-
Security type tamper resistant fasteners.
-
Front flanged feet.
Stainless steel finishing back.
Tilting kettle strainer (one) (two).
12" dual temperature faucet.
Single phase on 24 KW boiler.
Stepdown transformer (eliminates 120 volt connection).
36 KW boiler, 3 phase only.
42/48 KW boiler, 3 phase only.
480 volt, 60 Hz, 3 phase, includes stepdown transformer.
Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
Second year extended limited parts and labor warranty.
ACCESSORIES
Stainless steel back panel.
Lift-off cover (one) (two).
Contour measuring strip.
Single perforated stainless steel basket (one) (two).
C.S.I. Section 11420
2
).
