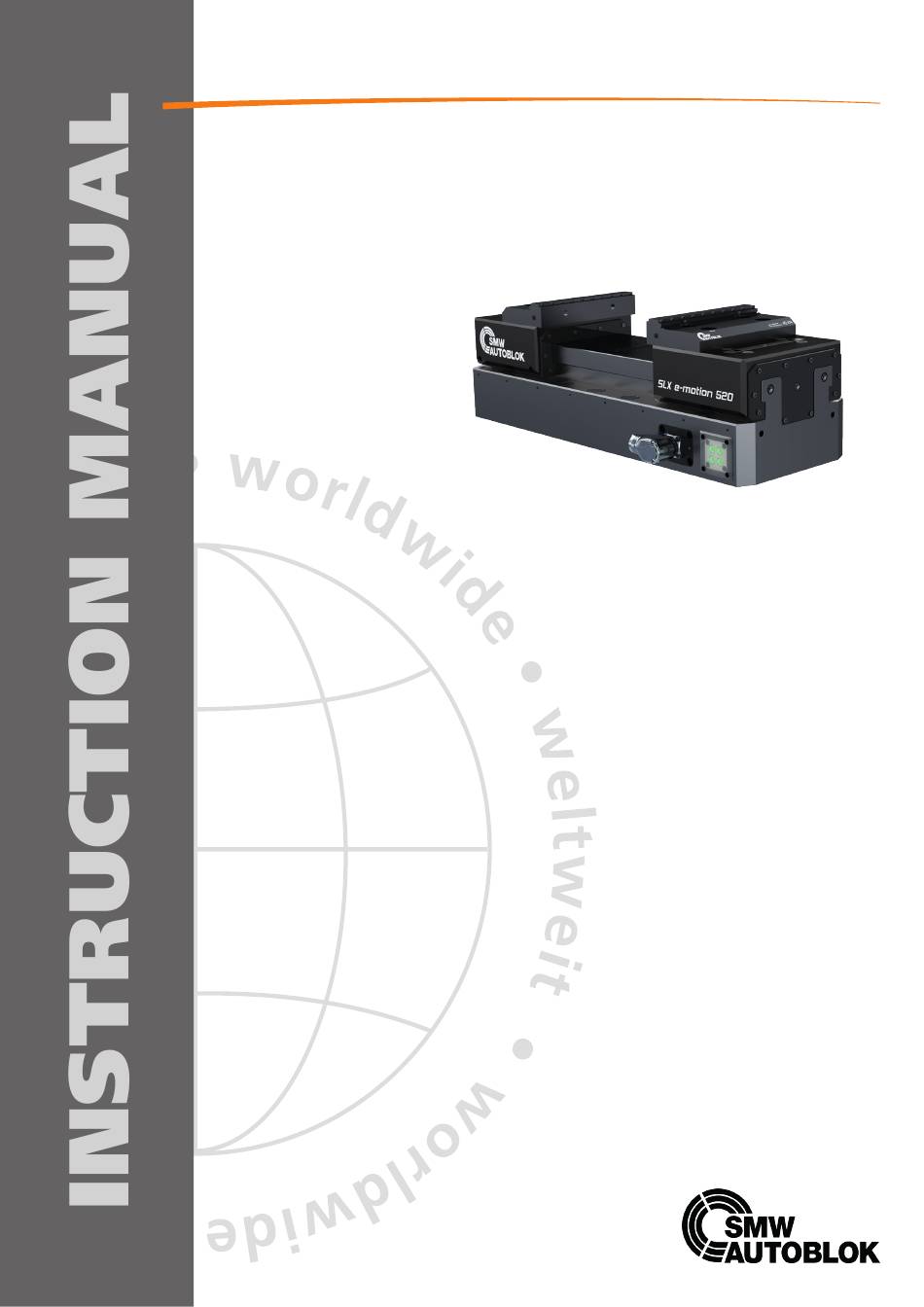

- Page 1 COPY OF THE HYDRAULIC LONG-STROKE VISE ORIGINAL Typ SLX e-motion Typ SLX e-motion Preliminary Date: 2023-09 Version: Language: English...
-
Page 3: Table Of Contents
Thank you for purchasing an Original-SMW-AUTOBLOK Hydralic long-stroke vise type SLX e-motion. This instruction manual contains the installation, the use and the maintenance instructions of the work holding „SLX e-motion “. SMW-AUTOBLOK reserves the right to make changes without notice. -
Page 4: Declaration Of Incorporation
Installation in machine tool Type: SLX e-motion is intended to be installed into a completed machine. It must not be put into service until the fi nal machine into which the partly completed machinery it is to be incorporated has been declared in conformity with the provisions of the EU machine directive (2006/42/EC) Annex II, B. -
Page 5: General Safety Instructions
General safety instructions Danger! General precept sign! General warning sign! Warning of hand injuries! Danger to the environment! Follow the instructions! Warning of risk of crushing! Warning of suspended load! 1. Correct use 8. Clamping force SMW-AUTOBLOK clamping systems work safely The clamping force of the clamping system can vary, depending troublefree, if they are used according to their specifi cation i.e. - Page 6 SLX e-motion Mechatronic long-stroke vise ■ Monitoring of the jaw position / clamping force ■ Mechanical maintenance of clamping force in case of power failure ■ High-Low clamping Application/customer benefi ts • Mechatronic clamping drive with maintenance of clamping force due to self-locking, spring pack and engine brake •...
-
Page 7: Technical Data
SLX e-motion Mechatronic long-stroke vise Dimension and technical data 10 x M12 optional Angle plug SLX e-motion PIN assignment M23 hybrid plug PIN Core Color Function Description black 1 24 V Logic Power black 2 Logic GND black 3 48 V... -
Page 8: Top Jaws
SLX e-motion Accessories ■ Top jaws Mechatronic long-stroke vise Hardened top jaw 159,8 150,3 21,45 16,7 17,9 16,3 30,5 25,5 *1 Set = 2 pieces Type Id. No. max. total clamping force min. jaw height Weight SLX-520 e-motion 461640 40 kN... - Page 9 Notes SMW-AUTOBLOK...
-
Page 10: Functional Description
Functional description Mounting top jaws Base body Device plug connector M23 HYBRID The codes on the description of the type have the following meaning: SMW-AUTOBLOK Type Overall length SLX e-motion 520 SMW-AUTOBLOK... - Page 11 Functional description General description Function The SLX e-motion is a mechatronic long-stroke vise that can be SLX e-motion long-stroke vises are controlled electromechanically. integrated into automation systems through PROFINET. As a signal is given through PROFINET, an electric motor mechanically...
-
Page 12: Installation
ProfiNet orange Data TX- ProfiNet Installation of the SLX e-motion on the machine table General The following described installations provide only an overview of the standard installations on machine tables of common machine types. If any special installations are requested, e.g. zero point mounting, please contact SMW-AUTOBLOK directly or one of our subsidiaries. - Page 13 Installation Installation directly using the base body (pos. 01) of the SLX e-motion Position of the cylinder screws + T-nuts Protective cover The protective cover must first be removed for installation. For this purpose, place a magnetic puller* on the protective cover and then pull it off with the magnetic puller toward the top.
- Page 14 T-Nut Install protective covers Finally, put the protective covers back in place. The supply line of the SLX e-motion can be routed through the flange plate and the machine table protected from chips and mechanical influences. Protective cover...
- Page 15 T-Nut Mounting top plate + SLX e-motion Clamping bolt The top plate + SLX e-motion is mounted on the base plate by the ZeroAct e-motion using the clamping bolts attached to it. Base plate + top plate + SLX e-motion...
-
Page 16: Communication Interface Profinet
In order to be able to execute the single functions and to read out the current state of the vise, the process data over PROFINET is used. The process data consists of of in- and outputs between the SLX e-motion and the machine (PLC) . - Page 17 PROFINET Communication interface 2.1 Statusword Bit 0: xReady This bit is TRUE when the vise is ready and no error is present. This bit stays TRUE, if the current command is completed. Bit 1: xBusy This bit is TRUE when the vise is in operation and remains TRUE until the bit for the corresponding command is reset. Bit 2: xDone This bit becomes TRUE when a command has been successfully completed.
- Page 18 PROFINET Communication interface Process data from the controller to the SLX e-motion Output Machine (PLC) - SLX e-motion Word Datatype Bit 0 ControlWord.xClose The vise moves its jaws in the direction closed Bit 1 ControlWord.xOpen The vise moves its jaws in the direciton opened Bit 2 ControlWord.xPositioning...
- Page 19 The workpiece is not clamped with the specified clamping force. The jaws of the SLX e-motion are positioned at the target position of 50000µm, but no or only a very low clamping force is built up. Bit 4 to Bit 14: xReservedBit4…xReservedBit6 These bits are not used and reserved for possible expansions of the plant.
-
Page 20: Operation
Operation Disassembly / Assembly Top jaws Clean the contact surfaces Assembly top jaw Clean the contact surfaces of the top jaw, fixed jaw and Align the top jaw with its underside in the groove. Make loose jaw and check them for damage. sure that the top jaw touches down flat. - Page 21 Operation Manual loading / setup operation When loading the workpiece manually, there is a risk that fingers can be clamped between the clamping jaws or between the clamping jaw and the workpiece. To avoid this risk, the following instructions must be observed. Ensure that the clamping speed of the clamping device is max.
-
Page 22: Warranty 12 And 24 Months
Warranty 12 months warranty Product: SLX e-motion SMW-AUTOBLOK provides a warranty on the purchased product for 12 months from the date of purchase as stipulated in our General Terms of Sale in the following cases: • The defect was not known to the customer at the time of purchase. - Page 23 -optional- Product: SLX e-motion Against additional fee, SMW-AUTOBLOK off ers a warranty on the purchased product for 24 months from date of purchase as a modifi cation to the 12-month limitation period stipulated in our General Terms of Sale if the following conditions are met: •...
-
Page 24: Documentation Of Maintenance
Documentation of maintenance Product: Regular and documented maintenance conserves the value of your work holding, and ensures Serialno.: warranty! Maintained according Maintained according to instruction manual to instruction manual Operating hours Operating hours Name Name Date Date Signature Signature Remarks Remarks... - Page 25 Documentation of maintenance Product: Regular and documented maintenance conserves the value of your work holding, and ensures Serialno.: warranty! Maintained according Maintained according to instruction manual to instruction manual Operating hours Operating hours Name Name Date Date Signature Signature Remarks Remarks...
- Page 26 Documentation of maintenance Product: Regular and documented maintenance conserves the value of your work holding, and ensures Serialno.: warranty! Maintained according Maintained according to instruction manual to instruction manual Operating hours Operating hours Name Name Date Date Signature Signature Remarks Remarks...
- Page 27 Documentation of maintenance Product: Regular and documented maintenance conserves the value of your work holding, and ensures Serialno.: warranty! Maintained according Maintained according to instruction manual to instruction manual Operating hours Operating hours Name Name Date Date Signature Signature Remarks Remarks...
-
Page 29: Confirmation Of Receipt Of The Manual
Empfangsbestätigung für die Betriebsanleitung Confi rmation of receipt of the instruction manual Hiermit bestätigt die vom Betreiber/ Anwender beauftragte This certifi es the operator assigned by the operating company Person Herr / Frau Mr. / Mrs. den Erhalt der Betriebsanleitung sowie deren Inhalte, hereby confi rms to have received the instruction manual insbesondere das Kapitel Sicherheit gelesen und verstanden and to have read and understood the content, especially the... - Page 31 Id. No. Item Weight Serialno.
- Page 32 SMW-AUTOBLOK s.r.o. Merhautova 20 Turkey CZ - 613 00 Brno SMW AUTOBLOK Makina San, Ve Tic. Ltd. ti. Tel. +420 513 034 157 Yeni ehir Mah, Osmanli Blv, Volume Kurtkoy Ofi s E-mail info@smw-autoblok.cz No:9, Kat:1, D:4, 32912, Pendik Istanbul Poland Tel.
