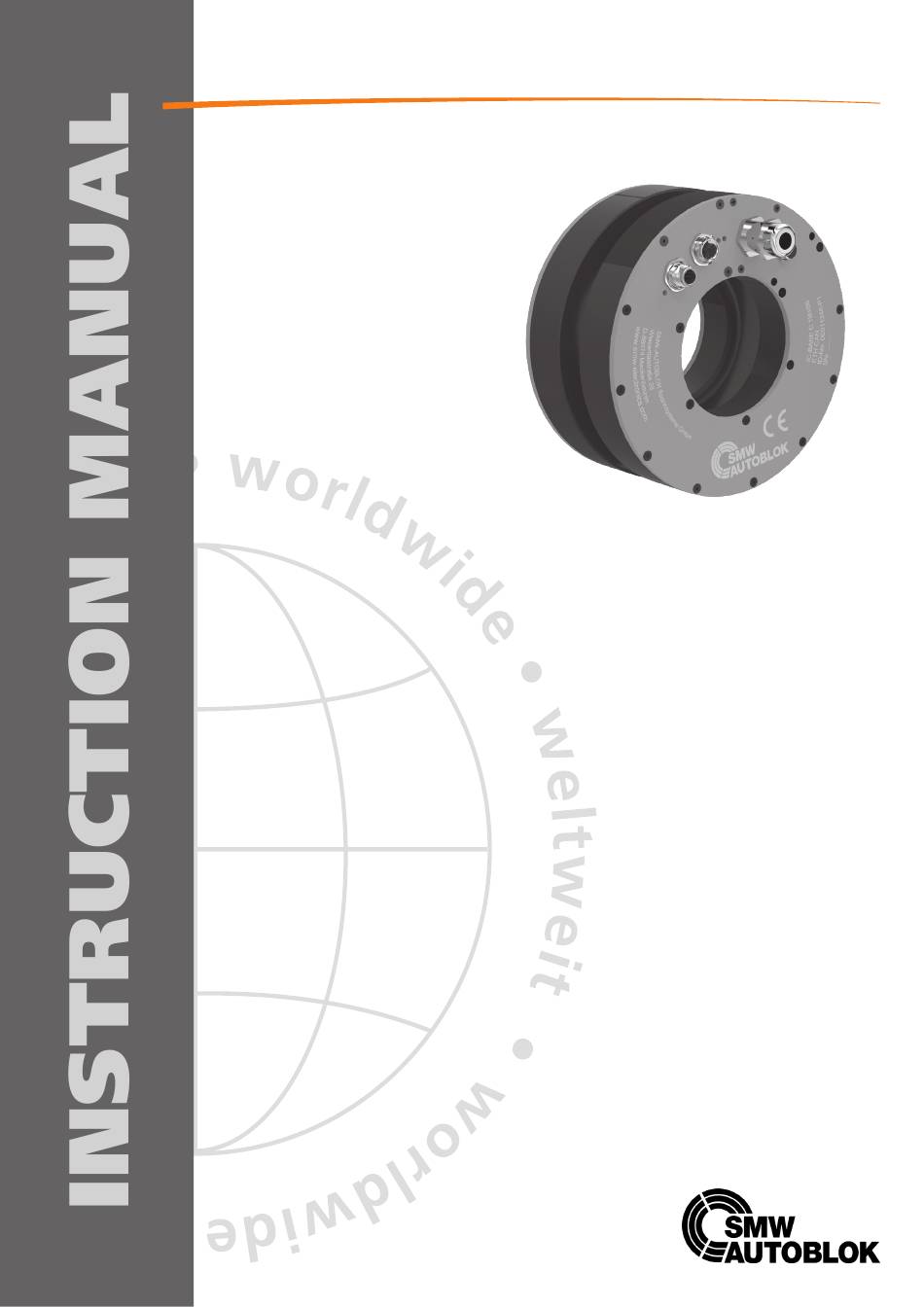

- Page 1 COPY OF THE Inductive coupler system ORIGINAL F180 Ethernet Preliminary Date: 2022-10 Version: Language: English...
-
Page 3: Table Of Contents
SMW-AUTOBLOK reserves the right to make changes without notice. This instruction manual is a part of the „F180 Ethernet “ and must be passed to the new owner in case of sale. This instruction manual may not be -in whole or in part- copied without our written agreement. - Page 4 SMW-AUTOBLOK...
-
Page 5: Safety Instructions
General safety instructions Danger! General precept sign! General warning sign! No access for persons with pacemakers Danger to the environment! Follow the instructions! Caution: Hot surface! 1. Intended use 6. Caution: Hot surface! The device is designed to transmit energy and signals Danger of burns from hot surfaces! without contact. -
Page 6: Tecnical Data
100BaseT 100BaseT Base Remote Signals Subject to technical changes. Ethernet For more detailed information please ask our customer service. Inductive coupler F180 Ethernet SMW-electronics Type Base Remote Id. No. 0E011246 0E011247 Operating temperature (body surface) -20° C ... +60° C -20°... - Page 7 ■ Stationary unit - Base ■ Mobile unit - Remote Axial coupler Base / Remote: Base: Remote: Subject to technical changes. For more detailed information please ask our customer service. Inductive coupler system F180 Ethernet SMW-electronics Type Base Remote Id. No. 0E011246 0E011247 29.5 29.5...
-
Page 8: Description Of Function
Description of function View Base Transmission distance Coverage Energy Cable fitting power cable M16 Ethernet connection M12, female, D-coded Diagnostic connection M12, plug, A-coded Base Coupler surface Remote View Remote Coverage Energy Cable fitting power cable M16 Ethernet connection M12, female, D-coded Diagnostic connection M12, female, A-coded Coupler surface Transmission distance... - Page 9 Description of function Description The innovative F180 inductive coupling system is used to operate electronic components of automation technology such as fieldbus gate- ways, sensors or actuators on moving, dynamically variable machine and systems parts. For this purpose, the coupling system transmits electrical energy and the necessary signals by using magnetic fields across an air gap.
-
Page 10: Installation
Installation Power connection Terminal block inside the device Screws for cover Screws for cover 1 - Vin 2 - GND 3 - FE The terminal block is accessible by removing the five screws under the coverage energy. Cable fitting M16 Socket screwed into housing Lead through for electric line Cap nut... - Page 11 Installation Start-up Notice Use base coupler 0E011246-P2 only with remote coupler 0E011247-P2. The start-up can only occur after the entire transmission chain of base and remote has been comletely set up. The installation of the components must always be performed in a (electrical) power-free state. Operation can only be performed with a power supply limited to 15 A at a voltage up to 24 V/ 12 A at a voltage up to 48 V + or another overcurrent protection device.
- Page 12 Installation Connectors Base Power supply Terminal inside the unit (sealed) Terminal block with screw terminal (plug-in terminal) for 2.5mm² wires with PG fitting connection Function DC 24/48 V + DC 24/48 V - FE (Functional ground) Diagnose Plug type M12 male 4-pin, A-coded Pin assignment Function DC 24 V + (IN)
- Page 13 Installation Connectors Remote Actuator supply Terminal inside the unit (sealed) Terminal block with screw terminal (plug-in terminal) for 2.5mm² wires with PG fitting connection Function DC 24/48 V + DC 24/48 V - FE (Functional ground) Output voltage selection Switch inside the device Terminal block with screw terminal (plug-in terminal) for cable bridge (small) 2 pin Function Sel 1 jumper set actuator U = 48 V...
- Page 14 Therefore, the specified minimum distances must be strictly followed when installing in metal. Distance A > 1 mm Distance B > 30 mm Active coupling surface Not coupled state Distance A > 1 mm F180 Remote F180 Base Coupled state SMW-AUTOBLOK...
- Page 15 Installation Permissible angle offset The permissible angle offset allows function in special mounting positions. Angle ° Distance D < 2° 0 mm 2 mm < 1° Permissible side offset The maximum side offset between base and remote unit is ±1 mm. Side offset E <...
- Page 16 IO-Link Process Data Structure and Parameters Notes SMW-AUTOBLOK...
-
Page 17: Typeplate
Typeplate Typeplate and contact If you have any questions about the product or if you wish to place order, please specify the type and item number on the typeplate of the inductive coupling system. CE Label Type Information Item Number Serial Number Contact: SMW-AUTOBLOK Spannsysteme GmbH... -
Page 18: Warranty
Warranty 12 months warranty Product: Inductive coupler system F180 Ethernet SMW-AUTOBLOK guarantees the proper function of the inductive coupling system, if the operation and storage are in accordance with the technical specifi cations of this operating manual. In the case that the inductive coupling system does not meet the specifi ed requirements and values, after checking the facts, repair or replacement will be carried out. - Page 19 SMW-AUTOBLOK...
- Page 20 SMW-AUTOBLOK Poland Sp. z.o.o. Ul Ligocka 103 - Building 8 Turkey 40-568 Katowice SMW AUTOBLOK Makina San, Ve Tic. Ltd. ti. Tel. +48 (0) 664 673 428 Yeni ehir Mah, Osmanli Blv, Volume Kurtkoy Ofi s E-mail info@smwautoblok.pl No: 9, Kat:1, D:4, 32912, Pendik Istanbul Korea Tel.
