Summary of Contents for SMW Autoblok M30 IOL

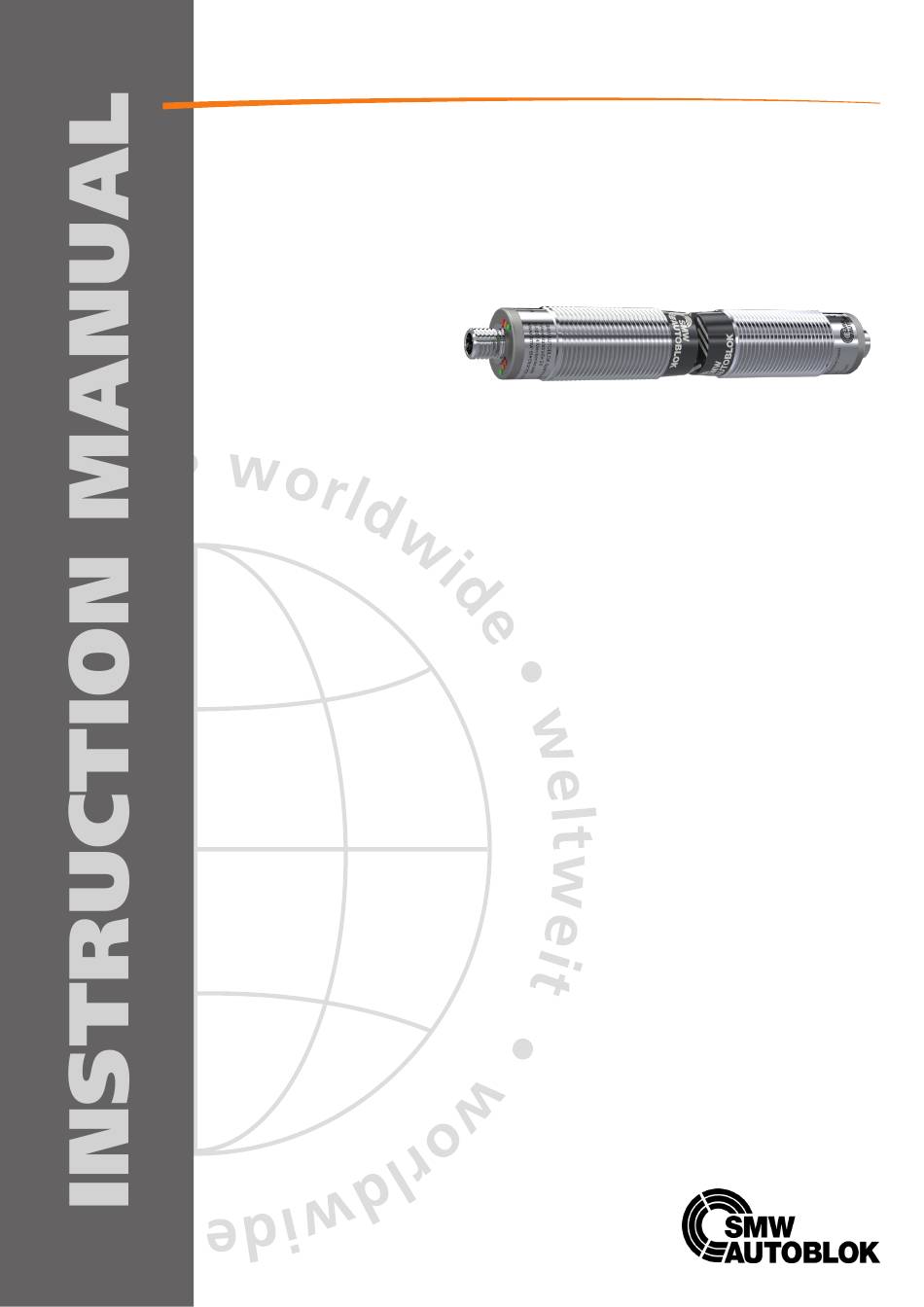

- Page 1 COPY OF THE Inductive coupler system ORIGINAL M30 IOL Preliminary Date: 2023-01 Version: Language: English...
-
Page 3: Table Of Contents
SMW-AUTOBLOK reserves the right to make changes without notice. This instruction manual is a part of the „M30 IOL “ and must be passed to the new owner in case of sale. This instruction manual may not be -in whole or in part- copied without our written agreement. - Page 4 SMW-AUTOBLOK...
-
Page 5: Safety Instructions
General safety instructions Danger! General precept sign! General warning sign! No access for persons with pacemakers Danger to the environment! Follow the instructions! Caution: Hot surface! 1. Intended use 6. Caution: Hot surface! The device is designed to transmit energy and signals Danger of burns from hot surfaces! without contact. -
Page 6: Tecnical Data
M30-IOL Inductive Coupling Sytem ■ Contact free transmission of energy and signals Axial coupler Application/customer benefi ts • Contact free, safe transmission of energy and signals between moving / rotating and stationary components • Application examples: Supply of sensors, Supply and monitoring of remote systems •... - Page 7 M30-IOL Inductive Coupling System ■ Stationary Unit - Base ■ Mobile Unit - Remote Axial coupler Display Base LED Base Base / Remote Male connector 5-pin 1.Red - 2.Orange - 3.Green M 12 x 1 Display Remote LED Remote Female connector 4-pin Subject to technical changes.
-
Page 8: Description Of Function
Description of function View Base Coupling surface Status LEDs Cable outlet plug 5-pin M12 x 1 Status LEDs Base View Remote Coupling surface Status LEDs Cable outlet socket 4-pin M12 x 1 Status LEDs Remote View coupling state Transmission distance Base Remote SMW-AUTOBLOK... - Page 9 Description of function Description The inductive coupling system M30-IOL is used to operate electronic components of automation technology such as IO-Link hubs, sensors or actuators on mobile, dynamically variable or rotating units in machine and device parts. A contactless bilateral fully transparent IO-Link signal transmission takes place between a stationary unit (base) and a mobile unit (remo- te).
-
Page 10: Installation
Installation Power connection / Signal connection Plug Base Anschlussbelegung Signal Base Supply voltage 24 V IN Digitalsignal 0 / 24 V OUT Ground IO-Link Signal IO-Link CQ Data-Valid DAV 24 V Male connector 5 pin Plug Remote Anschlussbelegung Signal Remote Supply voltage 24 V OUT Digitalsignal... - Page 11 Installation Transmission distance Base Remote Metal mounting bracket (Item 0E010946 from SMW-AUTOBLOK) Recommended: Metal mounting for optimum thermal conductivity Notice Use base coupler 0E011604 only with remote coupler 0E011605. The start-up can only occur after the entire transmission chain of base and remote has been comletely set up. The installation of the components must always be performed in a (electrical) power-free state.
- Page 12 Installation Integration The base and remote units of the contactless transmission are integrated by mounting them in axial alignment in compliance with the installation specifications. The assembly must be performed in a (electrical) power-free state. The following sections describe valid instal- lation instructions that must be strictly followed for correct operation.
- Page 13 Installation Permissible angle offset The permissible angle offset allows function in special mounting positions. Distance D Angle ° C Base 1 mm < 25° 2 mm < 20° 3 mm < 15° 4 mm < 10° Permissible side offset The maximum side offset between base and remote unit is ±3 mm. Side offset E Distance D E <...
- Page 14 Installation Derating energy transmission To increase the maximum power that can be transmitted and the maximum distance over which the coupling system can transmit, the ambient temperature, distance, lateral axis offset and angular offset can be reduced. In addition, the transmission distance of the coupling system can be increased with lower power requirements.
-
Page 15: Typeplate
Typeplate Typeplate and contact If you have any questions about the product or if you wish to place order, please specify the type and item number on the typeplate of the inductive coupling system. CE Label Type Information Item Number Serial Number Contact: SMW-AUTOBLOK Spannsysteme GmbH... -
Page 16: Warranty
Warranty 12 months warranty Product: Inductive coupler system M30 IOL SMW-AUTOBLOK guarantees the proper function of the inductive coupling system, if the operation and storage are in accordance with the technical specifi cations of this operating manual. In the case that the inductive coupling system does not meet the specifi ed requirements and values, after checking the facts, repair or replacement will be carried out. - Page 17 Notes SMW-AUTOBLOK...
- Page 18 SMW-AUTOBLOK Poland Sp. z.o.o. Ul Ligocka 103 - Building 8 Turkey 40-568 Katowice SMW AUTOBLOK Makina San, Ve Tic. Ltd. ti. Tel. +48 (0) 664 673 428 Yeni ehir Mah, Osmanli Blv, Volume Kurtkoy Ofi s E-mail info@smwautoblok.pl No: 9, Kat:1, D:4, 32912, Pendik Istanbul Korea Tel.
