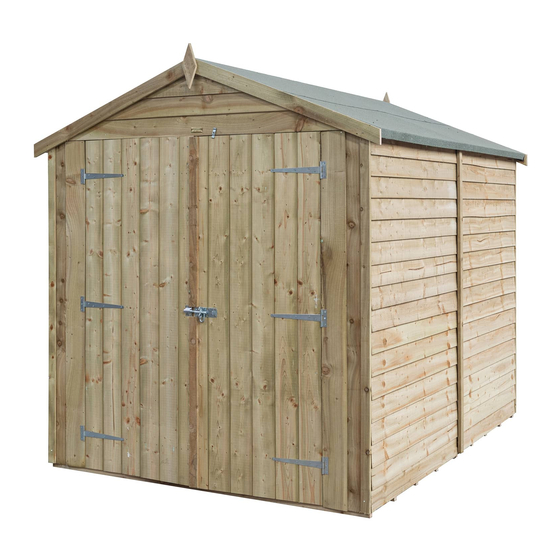

Rowlinson Garden Products 8x6 Overlap Double Door Shed Assembly Instructions Manual

Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people
• Drill all components where indicated
• Gloves are recommended when handling
components
x 2
Gloves
Drill
Recommended tools for assembly
• Power Drill/Screwdriver
• Cross-head drill bit
• 3mm diameter drill bit
• 6mm diameter drill bit
• 12mm diameter drill bit
• Tape measure
• Hammer
• Sharp knife
• Spirit level
• Step ladder
No. Components
1 Floor
2 Side wall panel
(Width 1174mm)
3 Back wall panel
(Width 860mm)
4 Front panel
5 Apex panel
6 Roof rafter
7 Roof rafter support block
8 Roof rafter brace
9 Roof rafter block
(Length 150mm)
10 Roof purlin/felt batten
(Length 1200mm)
11 Roof panel
12 Roof felt roll
(5m)
13 Roof ridge felt roll
(2.5m)
14 Door header rail
(28x28x1330mm)
15 Door rebate strip
(12x22x1715mm)
16 Left door
(tower bolt mounting blocks)
17 Right door
18 Door coverstrip
(16x45x830mm)
19 Coverstrips
20 Bargeboard
21 Finial
No. Fixing Kit
22 T-Hinge
23 Pad bolt
24 Tower bolt
25 Turn button
26 50mm coach bolt
27 Nut
28 Washer
29 50mm screws
30 32mm screws
31 25mm screws
32 19mm round head screws
33 30mm nails
34 10mm felt nails
8'x6' Overlap
Double Door Shed
Assembly Instructions
1
1 2
Qty.
1
1 3
2
4
2
2
2
2
2
1
4
8
4
1
1
1
2
1
1
2
7
4
2
Qty.
15
6 4
1
2
1
16
4
4
4
62 22
44
55
12
65
128
21
1
1 0
6
8
5
7
14
18
17
23
24
25
