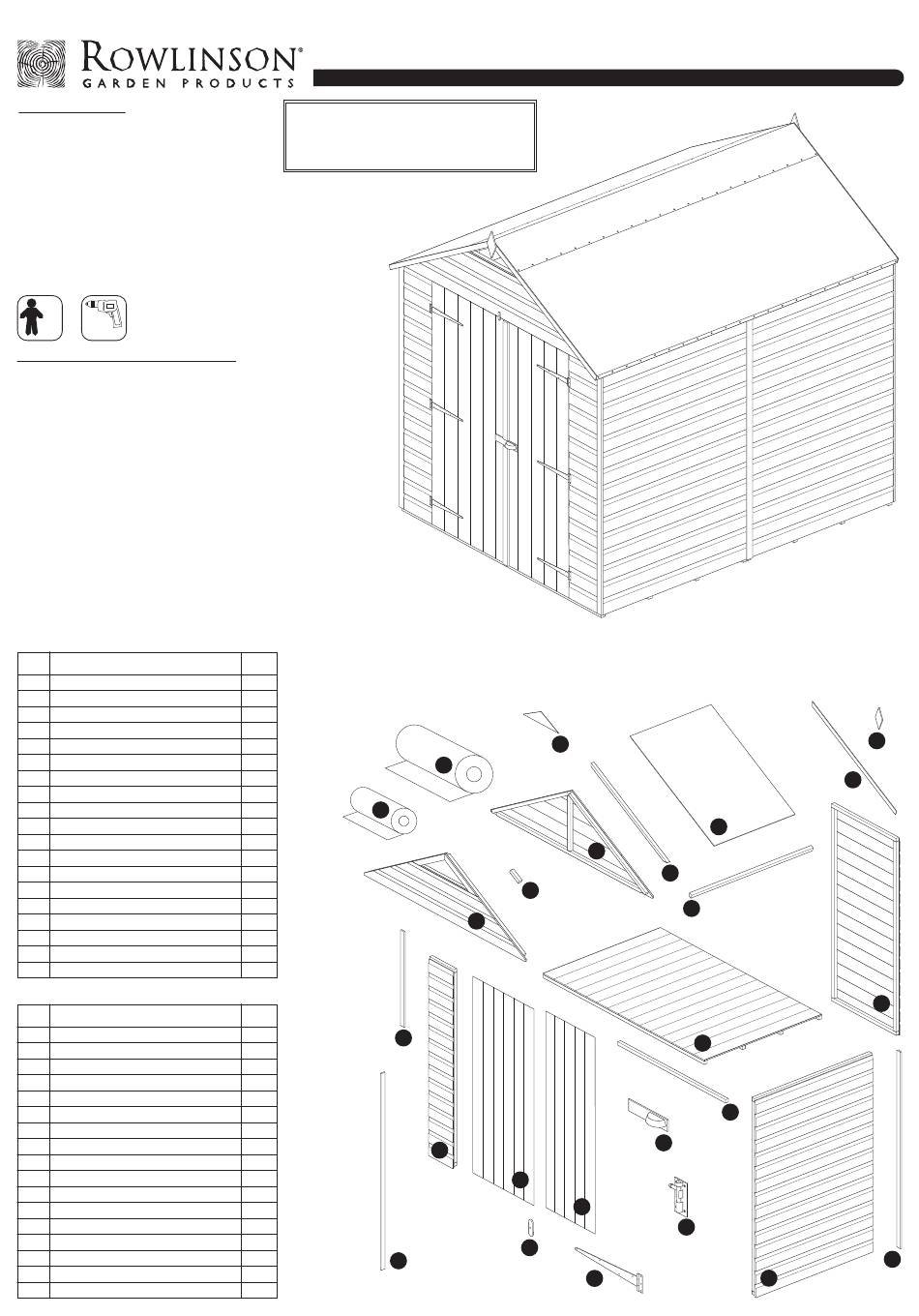

Rowlinson Garden Products SS219B Assembly Instructions

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for assembly
•
Cross head screw driver
•
10mm spanner
•
Hammer
•
Sharp knife
•
Drill
•
3mm diameter drill bit
•
6mm diameter drill bit
•
Spirit level
•
Silicon sealant
•
Step ladder
No. Components
1 Floor panel
2 Large wall panel
(Width 1174mm)
3 Small wall panel
(Width 850mm)
4 Front panel
5 Front apex panel
6 Rear apex panel
7 Door header rail
(29 x 29 x 1200mm)
8 Roof rafter
9 Roof panel
(1140 x 809mm)
10 Felt batten
(29 x 29 x 1213mm)
11 Felt batten block
12 Left door
13 Right door
14 Door rebate coverstrip
(32 x 12 x 1685mm)
15 Roof felt
(5m)
16 Roof ridge felt
(2.5m)
17 Coverstrip
(12 x 40 x 1710mm)
18 Door coverstrip
(12 x 40 x 820mm)
19 Bargeboards
No. Fixing kit
20 Roof gussets
21 Finial
22 T-hinge (254mm)
23 Turn button
24 Padlock protector
25 Towerbolt
26 65mm coachbolts
27 6mm washers
28 6mm nuts
29 63mm screws
30 50mm screws
31 32mm security screws
32 25mm screws
33 20mm screws
34 19mm round head screws
35 30mm nails
36 10mm felt nails
2.4 x 1.8 (8' x 6')
Security Shiplap Shed
Assembly Instructions
RECOMMENDED BASE AREA
A recommended base area of no less
than 1870mm x 2450mm
Qty.
2
4
2
2
1
1
1
8
6
16
4
4
1
1
2
1
1
7
2
4
Qty.
4
18
2
6
1
1
2
8
8
8
16
40
42
16
7
12
14
113
124
20
15
6
11
5
4
12
13
23
22
English SS219B
9
8
10
1
7
24
25
2
21
19
3
17
