Rowlinson Garden Products SS625 Assembly Instructions

Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people.
• Drill pilot holes for screws to avoid splitting
and cracking the timber.
x 2
Drill
Recommended tools for assembly
• Power Drill/Screwdriver
• Cross-head drill bit
• 3mm diameter drill bit
• 6mm diameter drill bit
• 12mm diameter drill bit
• Hammer
• Sharp knife
• Spirit level
• Step ladder
Biocidal Products Regulation EU 528/2012
Wolmanit® CX treated wood, is a treated article incorporating
biocidal products: copper hydroxide
cyclohexyl-diazenium-dioxy)-copper and Boric Acid. They
protect wood against fungal decay, rot and insect attack. Wear
gloves when handling freshly treated wood. Avoid breathing dust
when cutting wood. Dispose of off-cuts responsibly.
No. Components
1 Floor
2 Wall panel
(width1174mm)
3 Left-hand angled top panel
4 Right-hand angled top panel
5 Front top panel
6 Door header rail
(28x28x1118mm)
7 Front uprights
(35x28x1687mm)
8 Door rebate strip
(12x22x1685mm)
9 Front corner coverstrip
(12x75x1715mm)
10 Rear corner coverstrip
(12x40x1715mm)
11 Roof
12 Side felt batten
(12x48x1240mm)
13 Front/rear felt batten
(12x48x1222mm)
14 Roof felt roll
(1.3m)
15 Left door
(with tower-bolt mount blocks)
16 Right door
17 Door weather strip
(12x48x830mm)
18 Rear bargeboard
(12x90x1227mm)
19 Side bargeboard
(12x90x1264mm)
20 Front bargeboard
(12x90x1252mm)
No. Fixing Kit
21 T-Hinge
22 Pad bolt
23 Turn button
24 Tower-bolt
25 50mm coach bolt
26 Nut
27 Washer
28 60mm screws
29 50mm screws
30 32mm screws
31 25mm screws
32 20mm screws
33 19mm black round-head screws
34 30mm nails
35 10mm felt nails

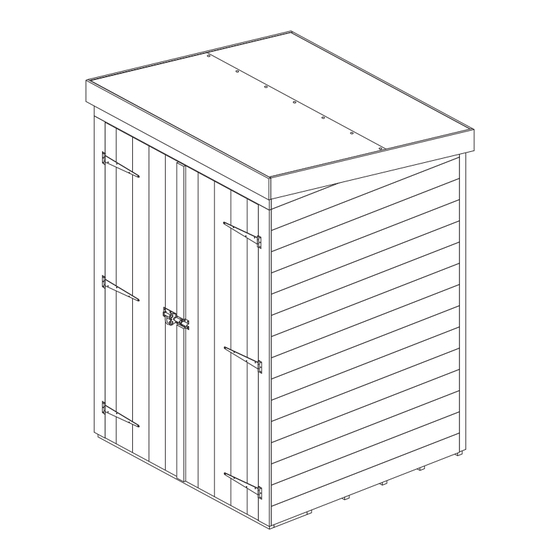

4x4 Shiplap Double Door
Pent Shed
Assembly Instructions
carbonate, bis(N-
Qty.
1
3
1
1
1
1
19
2
2
2
2
1
2
2
2
1 21
1
2
1
2
1
Qty.
6
1
1
2
4
4
4
12
9
27
15
12
79
6
12
28
39
14
12
20
13
23
24
17
8
22
16
English SS625
3
11
5
6
7
1
18
4
2
10
