Rf-t CA2 Installation Manual

Rectangular surface-mounted fire damper 60'
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CA2
Rectangular surface-mounted fire damper 60'
www.rft.be
Rf-Technologies nv  Lange Ambachtstraat 40  9860 Oosterzele  Belgium  Tel +32 9 362 31 71  Fax +32 9 362 33 07  info@rft.be

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rf-t CA2

Summary of Contents for Rf-t CA2

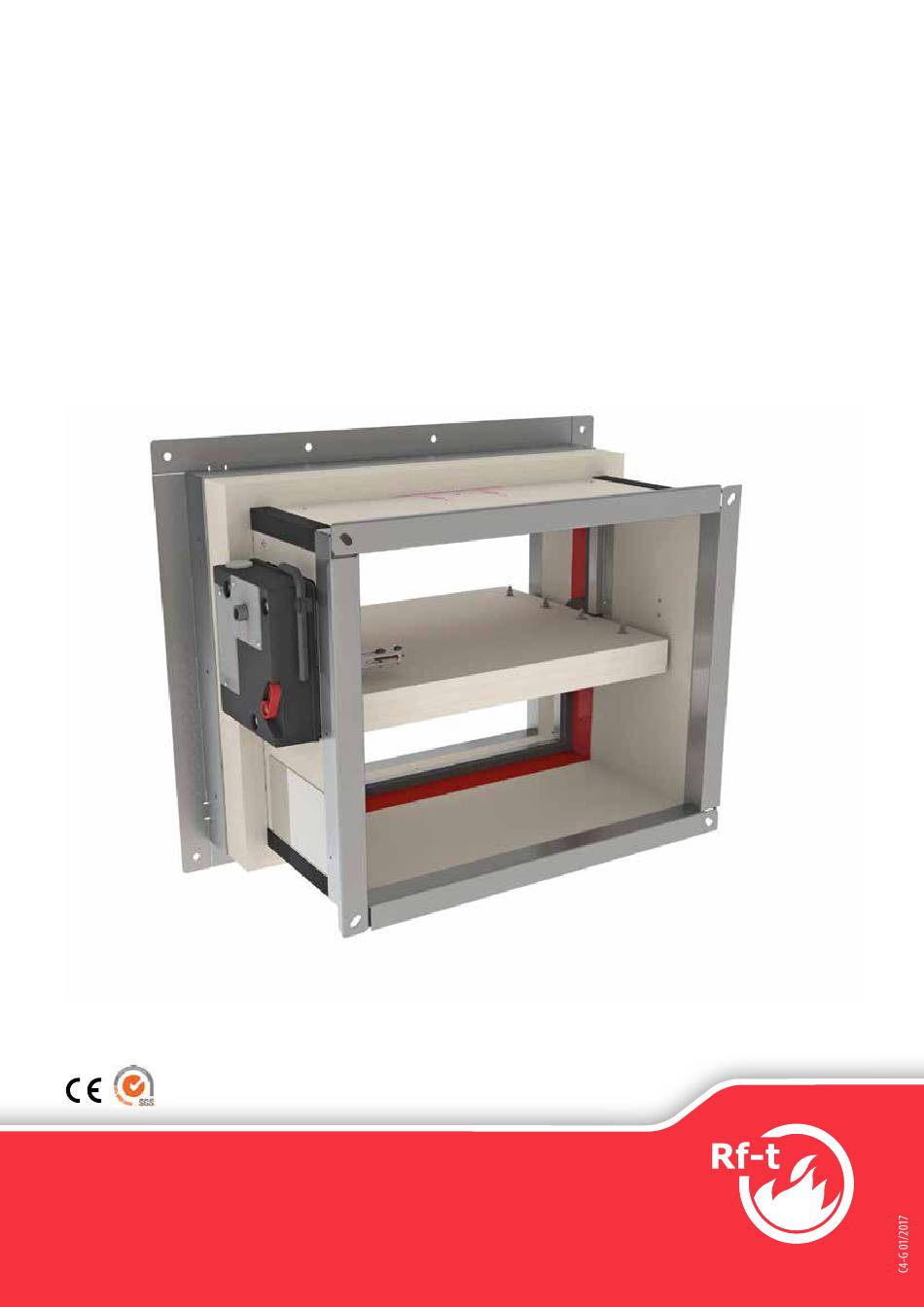

  • Page 1 Rectangular surface-mounted fire damper 60' www.rft.be Rf-Technologies nv  Lange Ambachtstraat 40  9860 Oosterzele  Belgium  Tel +32 9 362 31 71  Fax +32 9 362 33 07  info@rft.be...

  • Page 2: Table Of Contents

    Table of content Table of content Declaration of performance Product presentation CA2 Range and dimensions CA2 Variant CA2L Range and dimensions CA2L Evolution - kits Options - at the time of order Flange types - at the time of order...

  • Page 3: Declaration Of Performance

    Declaration of performance Harmonised standard EN 15650:2010...

  • Page 4: Product Presentation Ca2

    Product presentation CA2 Rectangular surface-mounted fire damper with a 60 minutes fire resistance on concrete walls. The CA2 damper is particularly suited for building sites where access to the damper is difficult or impossible from one side of the wall. The refractory casing is abestos free and resistant to humidity.

  • Page 5: Variant Ca2L

    Range and dimensions CA2L Variant CA2L Damper with a tunnel casing extension at one or both sides so that the damper blade does not exceed the tunnel. This version allows to connect a grill or a bend directly on the damper flange or to use a circular connection. ∎...

  • Page 6: Evolution - Kits

    Evolution - kits Evolution - kits Automatic unlocking mechanism CFTH with FCU and without FTH 72 KITS CFTH Upgradeable automatically unlocking mechanism KITS MANO EVO Spring return actuator BFL 24V KITS BFL24 Spring return actuator BFL 24V with plug (ST) KITS BFL24-ST Spring return actuator BFL 24V with thermo-electric fuse (T) KITS BFLT24...
  • Page 7 Evolution - kits Spring return actuator BFN 24V KITS BFN24 Spring return actuator BFN 24V with plug (ST) KITS BFN24-ST Spring return actuator BFN 24V with thermo-electric fuse (T) KITS BFNT24 Spring return actuator BFN 24V with thermo-electric fuse (T) and plug (ST) KITS BFNT24-ST Spring return actuator BFN 230V KITS BFN230...
  • Page 8 Evolution - kits Spring return actuator ONE 230V (with fusible link T) + unipolar beginning- and end-of- KITS ONE T 230 FDCU range switch Spring return actuator ONE 230V (with fusible link T) + bipolar beginning- and end-of-ran- KITS ONE T 230 FDCB ge switch Operating mechanism UNIQ (with fusible link) + unipolar beginning- and end-of-range UNIQ VD/VM FDCU...

  • Page 9: Options - At The Time Of Order

    Options - at the time of order Bipolar beginning and end of range switch KITS FDCB MAN Bipolar beginning and end of range switch KITS SN2 BFL/BFN Resetting motor ME 24V/48V (AC, DC) KITS ME MANO EVO Resetting motor ME 24V/48V (AC, DC) KITS ME UNIQ Fusible link FTH 72°C (for CFTH) KITS FTH72...

  • Page 10: Flange Types - At The Time Of Order

    Flange types - at the time of order Options - at the time of order Inspection shutter (set of 2) Air-tightness class C EN1751_C EN 1751 Flange types - at the time of order Connection to ducts with 30 mm flanges (either by sliding profile, or with bolts, or with PG30 clamps).
  • Page 11 Flange types - at the time of order Circular connection with rubber sealing ring. Grill. Very well suited as protection grill on the end piece of a duct system. W+62...

  • Page 12: Storage And Handling

    The air tightness class will be maintained if the damper is installed according to the installation manual. ∎ Rf-t fire dampers are always tested in standardised constructions according to EN 1366-2. The achieved results are valid for similar supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used during the test.

  • Page 13: Installation

    Installation in rigid wall The product was tested and approved in: Range Wall type Sealing Classification 200x200 mm ≤ CA2 ≤ 700x700 mm Rigid wall Aerated concrete ≥ 100mm Not applicable EI 60 (v i n o) S - (500 Pa)

  • Page 14: Operation And Mechanisms

    Operation and mechanisms Operation and mechanisms CFTH Automatically unlocking mechanism The unlocking mechanism CFTH automatically unlatches the damper blade when the temperature in the duct rises above 72°C. The damper can also be unlocked and reset manually. 1. unlocking button 2.
  • Page 15 ONE Spring return actuator for remote control The spring-return actuator ONE is designed to easily operate Rf-t fire dampers of all sizes, automatically or remotely.Five models are available, 24 or 230 volt, with FDCU or FDCB position switches; and 24 volt with plug (ST).
  • Page 16 UNIQ Upgradeable operating mechanism for remote control Compliant with NF S 61-937, the UNIQ operating mechanism is designed to operate Rf-t fire dampers of all sizes, easily and remotely. Four models are available: with FDCU or FDCB position switches and with or without ME resetting motor. All models are dual-voltage 24/48V and with an electrical impulse triggering (VD) with a possibility to change to power interruption triggering (VM) by removing a jumper.
  • Page 17 Operation and mechanisms MANO EVO Upgradeable automatically unlocking mechanism The fusible link of the upgradeable unlocking mechanism MANO EVO automatically unlatches the damper blade when the tempe- rature in the duct rises above 72°C. It is easy to upgrade the automatic MANO EVO mechanism into a remote controlled mechanism (remote electrical unlocking) or into a motorised mechanism (remote resetting).
  • Page 18 Operation and mechanisms BFL(T) Remotely controlled spring return actuator The spring return actuator BFL(T) is specially designed to remotely control fire dampers. The BFL(T) model is intended for fire dam- pers with smaller dimensions (ø ≤ 400 mm or W+H ≤ 1200 mm/1400 mm for CU-LT, CU-LT-1s). 1.
  • Page 19 The spring return actuator BFN(T) is specially designed to remotely control fire dampers. The BFN(T) model is intended for fire dam- pers with large dimensions (ø > 400 mm (CR2) or W+H > 1200 mm (CU2, CA2, CU2_15, CU4)) or for dampers CU-LT(-1s), CR60, CR120 with a production date before 1 July 2015.

  • Page 20: Electrical Connection

    Electrical connection Electrical connection CFTH UNIQ 24/48 VDC VD/VM 15 16 VD : unlocking through electrical impulse (with jumper) VM : unlocking through power interruption DCU : Unipolar beginning of range switch 24VDC FCU : Unipolar end of range switch 24VAC DCB : Bipolar beginning of range switch 230VAC...
  • Page 21 Electrical connection...
  • Page 22 Electrical connection Power consumption Power consumption Nominal voltage motor Nominal voltage magnet standard switches (stand-by) (operating) CFTH 1mA...6A, DC 5V...AC 250V ONE T 24 24 V AC/DC (-10/+20%) 0,12W 4,2W 10mA...100mA 60V FDCU ONE T 24 24 V AC/DC (-10/+20%) 0,12W 4,2W 10mA...100mA 60V...
  • Page 23 Electrical connection running resetting time noise level noise level Protection time cable supply / control cable auxiliary switch motor motor spring class spring IP 42 < 75 s (cabled) / < 30 s < 58 dB (A) < 60 dB (A) 1 m, 2 x 0.75 mm²...

  • Page 24: Weights

    41,5 44,2 46,9 49,6 52,4 55,1 57,8 32,3 35,1 38,0 40,8 43,6 46,5 49,3 52,1 55,0 57,8 60,6 CA2 + ONE T Hn\Wn [mm] 15,6 17,4 19,1 20,8 22,5 24,3 26,0 27,7 29,5 31,2 32,9 17,4 19,2 21,0 22,9 24,7...
  • Page 25 Weights CA2 + MANO EVO Hn\Wn [mm] 14,8 16,6 18,3 20,0 21,7 23,5 25,2 26,9 28,7 30,4 32,1 16,6 18,4 20,2 22,1 23,9 25,8 27,6 29,4 31,3 33,1 34,9 18,4 20,3 22,3 24,2 26,2 28,1 30,1 32,0 34,0 35,9 37,9...
  • Page 26 Weights CA2 + BFN Hn\Wn [mm] 52,5 52,8 55,4 52,8 55,5 58,2 52,5 55,4 58,2 61,0 CA2 + BFNT Hn\Wn [mm] 52,6 52,9 55,5 52,9 55,6 58,3 52,6 55,5 58,3 61,1...

  • Page 27: Selection Graphs

    Selection graphs Selection graphs v [m/s] Hn[mm] 7 8 9101112 p[Pa] 3 4 5 6 7 20 30 40 50 400 500 600 700800 1000 1500 Wn[mm] Hn[mm] v[m/s] 5 6 7 400 500 600 700800 1000 1500 L WA [dB(A)] Wn[mm] Δp [Pa] = ζ*v²*0,6 Hn\Wn [mm]...

  • Page 28: Example

    Required Δp= ca. 9 Pa (Cfr. selection graph) LWA= ca. 60 dB(A) Calculation Δp= 0.2 * (9m/s)² * 0.6 = 9.72Pa Selection data CA2 - A-weighted sound power level in the duct Hn\Wn [mm] Sn [m²] 0,0195 0,0255 0,0314 0,0374...
  • Page 29 Selection data Hn\Wn [mm] Sn [m²] 0,0359 0,0469 0,0578 0,0688 0,0797 0,0907 0,1016 0,1126 0,1235 0,1345 0,1454 Sn [%] 62,97 65,33 66,89 67,99 68,82 69,46 69,97 70,38 70,73 71,02 71,27 Q [m³/h] 1.320,00 1.630,00 1.930,00 2.230,00 2.540,00 2.840,00 3.150,00 3.450,00 3.750,00 4.060,00 4.360,00...
  • Page 30 Selection data Hn\Wn [mm] Sn [m²] 0,0605 0,0790 0,0974 0,1159 0,1343 0,1528 0,1712 0,1897 0,2081 0,2266 0,2450 Sn [%] 70,26 72,89 74,63 75,86 76,78 77,49 78,06 78,52 78,91 79,24 79,52 Q [m³/h] 1.900,00 2.320,00 2.740,00 3.160,00 3.580,00 4.010,00 4.430,00 4.850,00 5.270,00 5.690,00 6.110,00...

  • Page 31: Correction Factor Δl

    Correction factor ΔL Hn\Wn [mm] Sn [m²] 0,0851 0,1111 0,1370 0,1630 0,1889 0,2149 0,2408 0,2668 0,2927 0,3187 0,3446 Sn [%] 73,86 76,63 78,46 79,75 80,72 81,47 82,07 82,56 82,96 83,30 83,60 Q [m³/h] 2.470,00 3.010,00 3.550,00 4.080,00 4.620,00 5.150,00 5.680,00 6.220,00 6.750,00 7.280,00...

  • Page 32: Sample Order

    Approvals and certificates Correction factor ΔL To obtain the sound power level for the octave midband: LW oct = ΔL + Lwa [Hz] 1000 2000 4000 8000 3,8 m/s 4,5 m/s 5,3 m/s 6,4 m/s 7,6 m/s Sample order PG30 CFTH FCU product width height...
