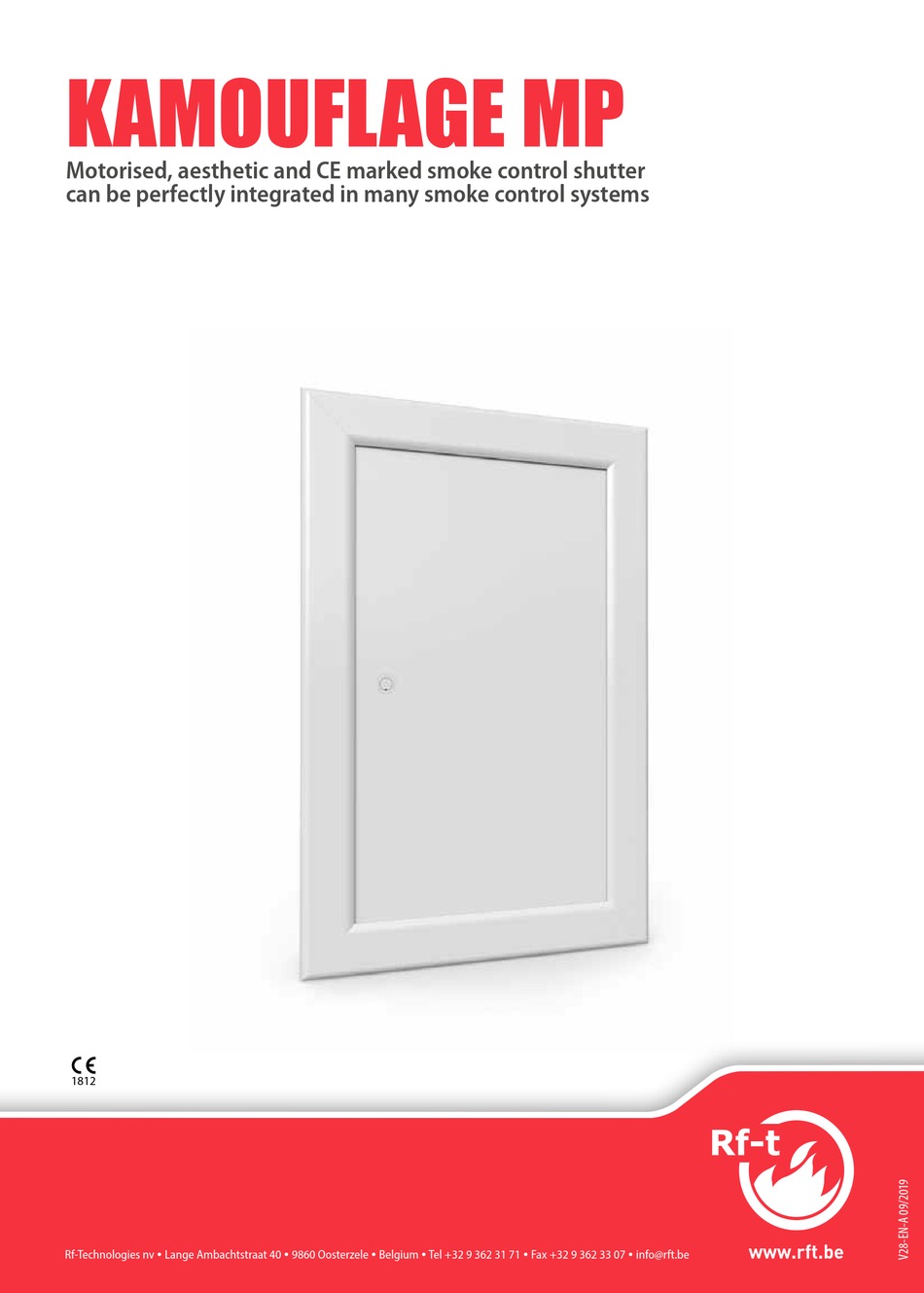

- Page 1 KAMOUFLAGE MP Motorised, aesthetic and CE marked smoke control shutter can be perfectly integrated in many smoke control systems 1812 www.rft.be Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel +32 9 362 31 71 Fax +32 9 362 33 07 info@rft.be...
-
Page 2: Table Of Contents
Table of content Table of content Declaration of performance Product presentation KAMOUFLAGE MP Range and dimensions KAMOUFLAGE MP 1V60 - 1V120 Evolution - kits Options - at the time of order Storage and handling Installation Operation: manual opening Operation: manual closing Electrical connection 9, 24 Position in the shaft... - Page 3 Explanation of the abbreviations and pictograms Explanation of the abbreviations and pictograms Wn = nominal width hod = horizontal duct KIT = kit (delivered separately for repair or Hn = nominal height vew = vertical wall penetration upgrade) Sn = free air passage V = volt PG = connection flange to the duct E = integrity...
-
Page 4: Declaration Of Performance
Declaration of performance Harmonised standard EN 12101-8:2011 max 2... -
Page 5: Product Presentation Kamouflage Mp

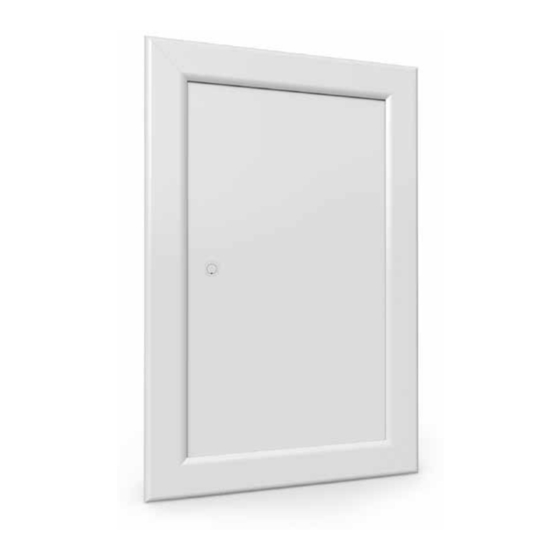

Product presentation KAMOUFLAGE MP Product presentation KAMOUFLAGE MP The Kamouflage MP is a motorised, aesthetic and CE marked smoke control shutter that can be perfectly integrated in many smoke control systemss. It is certified in accordance with EN12101-8, suitable for vertical mounting in ducts or concrete shafts. Offering 60 or 120 minute fire resistance at minimum pressure loss, it is classified as suitable for multi-compartment applications. -
Page 6: Range And Dimensions Kamouflage Mp 1V60 - 1V120
Range and dimensions KAMOUFLAGE MP Range and dimensions KAMOUFLAGE MP 1. Refractory material 2. Sealing if mounting frame 3. Mounting frame EASY-KAP ME/MP (optional) 4. EASY-KGC ME/MP mounting frame with drop guard (optional) 5. Nominal dimensions shutter Wn x Hn 6. -
Page 7: Storage And Handling
∎ Rf-t smoke dampers may be applied to ducts that have been tested according to EN 1366-8 and EN 1366-9, as appropriate. They have to be constructed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials. -
Page 8: Operation: Manual Opening
Installation Operation: manual opening 20° 1. Remove the finishing cap from the shutter. To do this, use the 2. Unlocking 1V hook with key ring that is delivered with the product. You may Turn the key 20° anti-clockwise and push the shutter into its attach this tool to the key through its handy key ring. -
Page 9: Electrical Connection
Installation Electrical connection 1. The electrical connection is possible via the 2 corners at the 2. Drill a hole in the refractory material at the choosen corner(s). side of the hinges. The galvanised part at the inside of the shutter is already indented. -
Page 10: Position In The Shaft
Installation Position in the shaft ≥125 ≥125 ≥125 1. The shutter is affixed to the smoke evacuation shaft through a sleeve. That sleeve can be installed either in the shaft, in the axis of the shaft or outside the shaft (or shaft extension). 3. -
Page 11: Installation Into Vertical Concrete Shaft With Built-In Mounting Frame
Installation Installation into vertical concrete shaft with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Concrete ≥ 90 mm EI 60 (v i n o) S 1500 C10000 AA multi Masonry, concrete blocks, concrete Kamouflage 60 MP... - Page 12 Installation 3. Put aside the screws that are affixed to one of the cross slats, 4. Rotate the four fastening plates on the damper 90° (to the then unscrew the 4 cross slats of the mounting frame and fold upright position). the 8 fastening plates in the frame.
-
Page 13: Installation Into Vertical Concrete Shaft (Without A Mounting Frame)
Installation Installation into vertical concrete shaft (without a mounting frame) The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Concrete ≥ 90 mm EI 60 (v i n o) S 1500 C10000 AA multi Masonry, concrete blocks, concrete Kamouflage 60 MP... -
Page 14: Installation Into Vertical Shaft With Built-In Mounting Frame: General Instructions For All Types Of Shafts (Other Than Concrete)
Installation Installation into vertical shaft with built-in mounting frame: general instructions for all types of shafts (other than concrete) EASY-KAP ME/MP KAMOUFLAGE MP ≥ 125 mm 1. Make an opening with dimensions (W+A) x (H+A) mm. 2. Two fixing lugs are provided at the bottom and at the top of A = 2 x thickness sleeve (e) + 20 mm. -
Page 15: Installation Into Vertical Shaft (Without A Mounting Frame): General Instructions For All Types Of Shafts (Other Than Concrete)
Installation 5. Open the shutter and position it in the mounting frame. Fasten the shutter onto the mounting frame with the 4 screws supplied, as shown in the drawing. Tightening the screws pulls the shutter towards the wall until its final position. It also makes it possible to slightly correct the angle of the shutter with respect to the mounting frame. -
Page 16: Installation Into Vertical Shaft Promatect L500 With Built-In Mounting Frame
Installation Installation into vertical shaft PROMATECT L500 with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Promatect L500 ≥ 30 mm EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 120 MP 350x385 mm ≤... -
Page 17: Installation Into Vertical Shaft Geoflam (Light) / Geotec With Built-In Mounting Frame
Installation Installation into vertical shaft GEOFLAM (LIGHT) / GEOTEC with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Geoflam ≥ 30 mm EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 60 MP... -
Page 18: Installation Into Vertical Shaft Tecniver With Built-In Mounting Frame
Installation Installation into vertical shaft TECNIVER with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Tecniver ≥ 35 mm EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 120 MP 350x385 mm ≤... -
Page 19: Installation Into Vertical Shaft Glasroc F V500 With Built-In Mounting Frame
Installation Installation into vertical shaft GLASROC F V500 with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Glasroc F V500 ≥ 35 mm EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 120 MP... -
Page 20: Installation Into Vertical Shaft Exthamat With Built-In Mounting Frame
Installation Installation into vertical shaft EXTHAMAT with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Exthamat ≥ 25 mm EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 120 MP 350x385 mm ≤... -
Page 21: Installation Into Vertical Shaft Desenfire (Hd) With Built-In Mounting Frame
Installation Installation into vertical shaft DESENFIRE (HD) with built-in mounting frame The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 MP 350x385 mm ≤ Kamouflage 1V MP ≤ 700x1075 mm Shaft Desenfire HD ≥ 25 mm HD EI 60 (v i n o) S 1500 C10000 AA multi Kamouflage 120 MP 350x385 mm ≤... -
Page 22: Installation With Minimal Distances
Installation Installation at minimal distances Wn+A Hn+A A=10mm (KAM ME/MP) A=20mm (KAM ME/MP + EASY KAP ME/MP) 1. The shutters can be installed at minimal distance on top of 2. In case several shutters are mounted at a minimal distance, or next to each other, if they are mounted in seperate sleeves the bearing and reinforcement points of the shaft must be made from the shaft material with the required fire resistance. -
Page 23: Product Maintenance
Maintenance Product maintenance Smoke control dampers must form part of a professionally designed Smoke and Heat Exhaust Ventilation System (SHEVS) that will be specially suited to an individual buildings size, usage and structure. SHEVS are Fire Safety Installations and it is essential they are subject to the routine inspection and maintenance requirements of the country of installation of the SHEV system. -
Page 24: Operation And Mechanisms
Operation and mechanisms Operation and mechanisms Operation: general points ∎ See under 'Installation' (manual opening and closing). Caution : please note dampers must be fully opened before starting supply and/or extract fans. † VA KAM MP MEC Mechanism for remote controlled unlocking and resetting. Mechanism for the smoke evacuation shutter KAMOUFLAGE MP. -
Page 25: Weights
Weights Weights KAMOUFLAGE MP 1V60 - 1V120 with ATOUT 1V MP RAL9010 Hn\Wn [mm] 385 kg 10,4 11,2 12,0 12,6 13,5 14,2 14,9 15,5 415 kg 11,0 11,8 12,6 13,3 14,2 14,9 15,7 16,3 445 kg 11,4 12,3 13,1 13,8 14,7 15,6 16,4... -
Page 26: Sample Order
Sample order KAMOUFLAGE MP 1V60 - 1V120 - Free air passage (m²) Hn\Wn [mm] 385 Sn [m²] 0,1080 0,1260 0,1430 0,1600 0,1780 0,1950 0,2120 0,2300 415 Sn [m²] 0,1180 0,1360 0,1550 0,1740 0,1930 0,2120 0,2310 0,2500 445 Sn [m²] 0,1270 0,1470 0,1680 0,1880...
