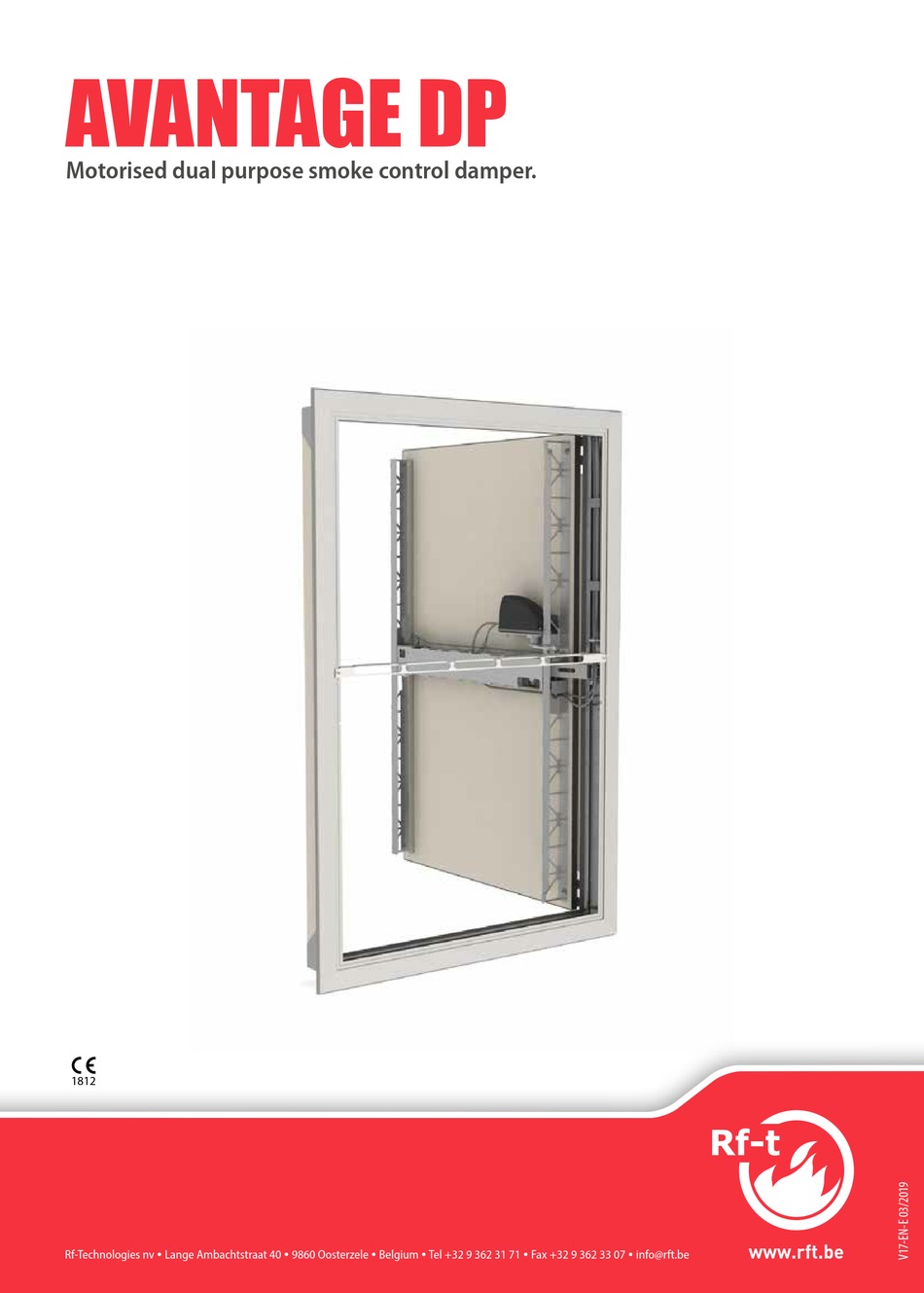

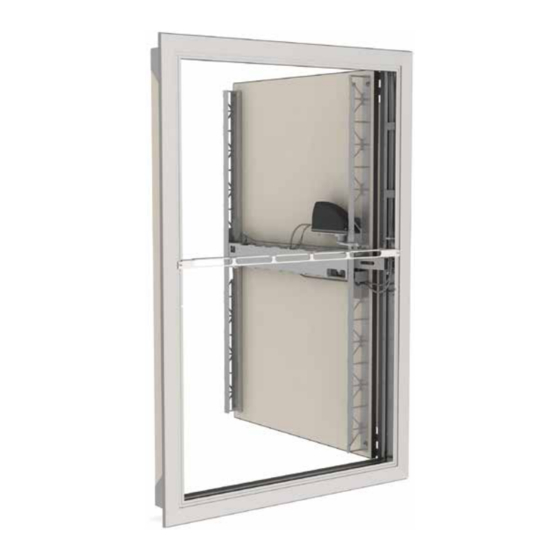

- Page 1 AVANTAGE DP Motorised dual purpose smoke control damper. 1812 www.rft.be Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel +32 9 362 31 71 Fax +32 9 362 33 07 info@rft.be...
-
Page 2: Table Of Contents
Table of content Table of content Declaration of performance Product presentation AVANTAGE DP Range and dimensions AVANTAGE DP 1V Evolution - kits Options - at the time of order Storage and handling Installation Warning Operation: manual opening Operation: manual closing... -
Page 3: Declaration Of Performance
Declaration of performance Harmonised standard EN 12101-8:2011... -
Page 4: Product Presentation Avantage Dp
Offering 60 or 120-minute fire resistance at minimum pressure loss, it is classified as suitable for multi-compart- ment applications. In addition, Avantage DP has a C 10.000 reliability classification that means it can be used in combined smoke control and environmental systems. -
Page 5: Evolution - Kits
Evolution - kits Evolution - kits Natural magnet 24 V DC KITS VD24-VA Limit switches 'open/closed' KITS FDC-VA Motor DP 24V KITS ME AVANDP Mounting frame (delivered separately) EASY-KAP Technical front protection grill (aluminium frame and perforated plate, fastened with GFV-PB screws 4.8x19mm), free air passage of 69,4% Options - at the time of order... -
Page 6: Storage And Handling
∎ Rf-t smoke dampers may be applied to ducts that have been tested according to EN 1366-8 and EN 1366-9 as appropriate, con- structed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials. -
Page 7: Operation: Manual Closing
Installation Operation: manual closing 20° 1. Resetting 1V Insert the key and turn 20° clockwise. Press the drive linkage bar to release from the stand-open position and pull the dam- per door slowly closed until the latch locates with the strike plate. -
Page 8: Position In The Shaft
Installation 3. It is recommended that once the holes have been drilled at the cable exit position, the cables are laid and clipped in posi- tion around the inside perimeter of the damper framing and each cable “Fed and Drawn” through these holes to the outside of the damper spigot. -
Page 9: Shock Absorbers For The Doors
Installation Shock absorbers for the doors 1. Shock absorbers (foam) come standard with the shutter. They 2. Be sure to cut these blocks to the correct dimensions so that can be affixed to the inner face of the door to prevent it from the blocking mechanism can engage when the door opens. -
Page 10: Installation Into Vertical Concrete Shaft With Built-In Mounting Frame
Shaft Concrete ≥ 70 mm EI 90 (v i n o) S 500 C10000 AA multi EASY-KAP AVANTAGE DP Mortar A=20-100 mm A=20 mm 1. In case of sealing the mounting frame: 2. The mounting frame should always be fastened to the Make an opening with dimensions (W+20) x (H+20) mm till concrete shaft with screws and dowels (Ø6 x minimum 60 mm,... - Page 11 Installation 3. Set aside the screws that are affixed to one of the cross slats, 4. Rotate the four fastening plates on the damper 90° (to the then unscrew the 4 cross slats of the mounting frame and fold upright position). the 8 plates in the frame.
-
Page 12: Installation Into Vertical Concrete Shaft (Without A Mounting Frame)
Concrete ≥ 70 mm EI 90 (v i n o) S 500 C10000 AA multi AVANTAGE DP 1. Rotate the four fastening plates on the damper 90° (to the 2. Make an opening with dimensions (W+10) x (H+10) mm. upright position). - Page 13 Desenfire ≥ 45 mm EI 120 (v i n o) S 500 C10000 AA multi AVANTAGE DP ≥ 105 mm 1. Rotate the four fastening plates on the damper 90° (to the 2. Make an opening with dimensions (W+A) x (H+A) mm.
- Page 14 Desenfire ≥ 45 mm EI 120 (v i n o) S 500 C10000 AA multi AVANTAGE DP ≥ 105 mm 1. Make an opening with dimensions (W+A) x (H+A) mm. 2. Two sealing lugs are provided at the bottom and at the top of A = 2 x thickness sleeve (e) + 20 mm.
-
Page 15: Product Maintenance
Installation 3. Set aside the screws that are affixed to one of the cross slats, 4. Rotate the four fastening plates on the damper 90° (to the then unscrew the 4 cross slats of the mounting frame and fold upright position). the 8 plates in the frame. -
Page 16: Operation And Mechanisms
Caution : please note dampers must be fully open before starting supply and/or extract fans. † VA DP MEC Mechanism for motorised unlocking and resetting. Mechanism for the motorised unlocking and resetting of the Smoke Control Damper Avantage DP, Kamouflage DP. 1. Motor and housing 2. Motor mounting bracket 3. -
Page 17: Weights
Weights Weights AVANTAGE DP 1V60 - 1V120 Hn\Wn [mm] 385 kg 10,3 11,0 11,6 415 kg 10,4 11,0 11,5 12,0 445 kg 10,3 10,8 11,4 11,9 12,5 475 kg 10,0 10,6 11,2 11,8 12,3 12,9 505 kg 10,4 11,0 11,5... -
Page 18: Selection Data
0,511 0,448 0,400 0,361 0,329 0,303 AVANTAGE DP 1V60 - 1V120 - Free air passage (m²) Hn\Wn [mm] 385 Sn [m²] 0,1090 0,1270 0,1450 0,1630 0,1810 0,1990 0,2170 0,2350 415 Sn [m²] 0,1190... -
Page 19: Sample Order
Sample order Sample order AVANTAGE DP 1V 120 685 VD24 product 1 shutter (1V) fire resistance of 60 or 120 minutes width height option: type magnet and voltage Approvals and certificates All our products are submitted to a number of tests by official test institutes. Reports of these tests form the basis for the approvals of the products.
