Aruba 303 Series Installation Manual
Hide thumbs Also See for 303 Series:

Advertisement

Quick Links

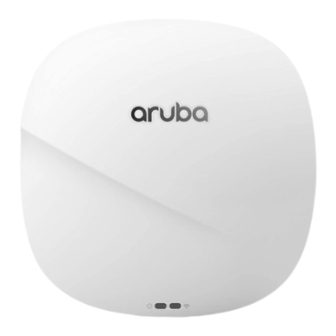

Aruba 303 Series Campus Access Points
Installation Guide
The Aruba 303 Series campus access points support IEEE802.11ac Wave 2, delivering high performance with the
MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g /n wireless
services.
The 303 Series access points provide the following capabilities:
IEEE 802.11a/b/g/n/ac operation as a wireless access point
IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3af PoE
Integrated Bluetooth Low Energy (BLE) radio
Package Contents
303 Series Access Point
Ceiling mount bracket (Spare: AP-220-MNT-C1 mount kit)
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 303 Series access points.

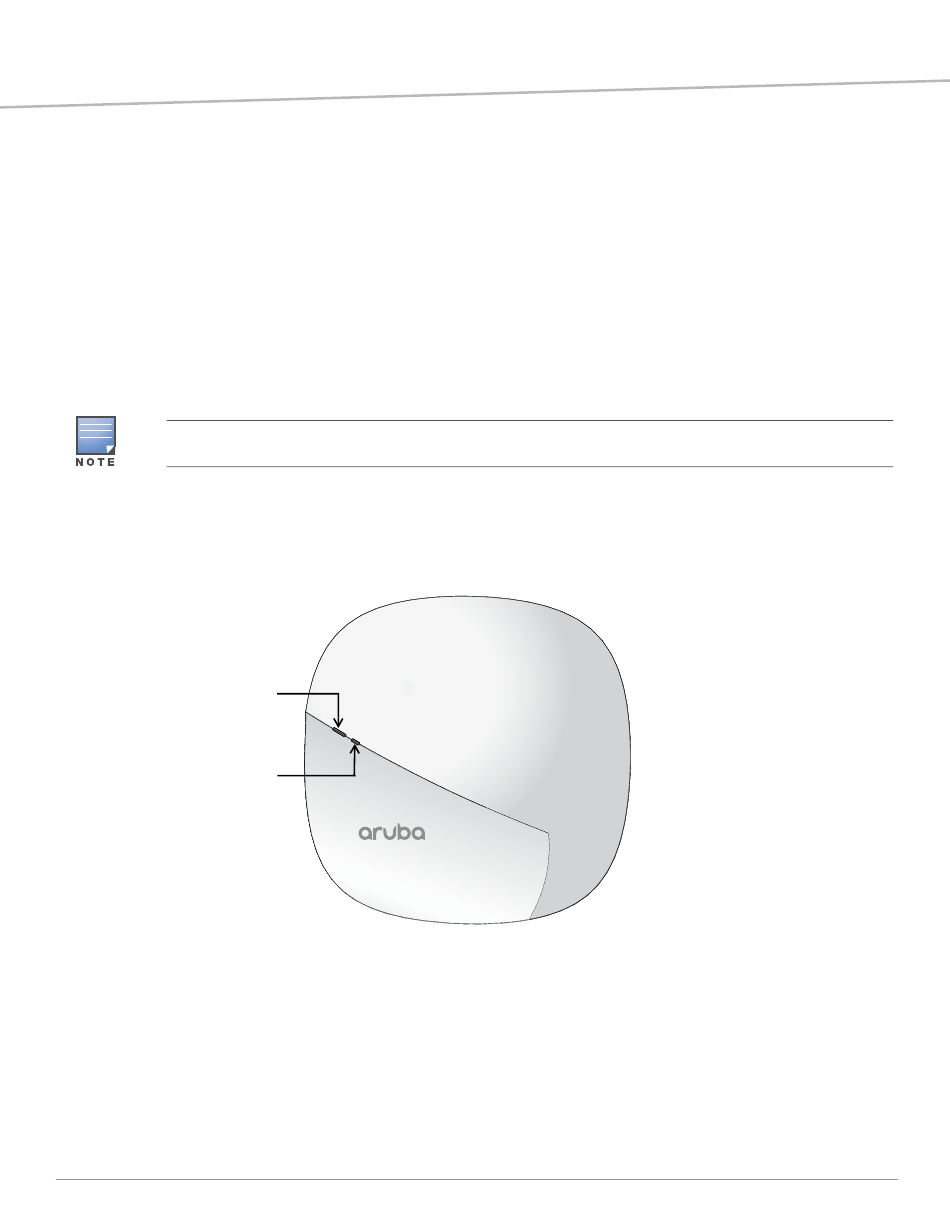

Figure 1
System Status
Radio Status
Rev07 | May 2023
303 Series (front view)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 303 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aruba 303 Series

  • Page 1 Aruba 303 Series Campus Access Points Installation Guide The Aruba 303 Series campus access points support IEEE802.11ac Wave 2, delivering high performance with the MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g /n wireless services. The 303 Series access points provide the following capabilities: IEEE 802.11a/b/g/n/ac operation as a wireless access point...
  • Page 2 The 303 Series access points have two LEDs that indicate the system and radio status of the device. These two LEDs can be configured via ArubaOS or Aruba Instant software into three separate modes: Normal mode (by default): See Table 1 ...
  • Page 3: Console Port

    CBL-SERU) is needed to use this interface. It is sold separately to connect the AP to a serial terminal or a laptop for direct local management. DC Power Socket If PoE is not available, a proprietary Aruba AP-AC2-12B power adapter kit (sold separately) can be used to power the 303 Series access points. | Installation Guide...
  • Page 4: Reset Button

    Reset Button To reset the 303 Series access points to factory default settings, press and hold down the reset button using a small, narrow object such as a paper clip for several seconds while powering up the AP, or for more than 10 seconds during normal operation.
  • Page 5: Pre-Installation Checklist

    Aruba Downloadable Regulatory Table at www.arubanetworks.com. Verifying Pre-Installation Connectivity The instructions in this section are applicable to the 303 Series access points running ArubaOS only. Before you install access points in a network environment, make sure that the access points will be able to locate and connect to the controller when they are powered on.
  • Page 6: Installing The Access Point

     Installing the Access Point The 303 Series access points ship with a ceiling mount bracket to attach to a 9/16” or 15/16” ceiling rail. Additional ceiling or wall mount kits are sold separately as accessories. Service to all Aruba products should be performed by trained service personnel only.
  • Page 7 5). Make sure that any cable slack is above the ceiling tile. 4. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the ceiling tile rail. | Installation Guide Aruba 303 Series Campus Access Points...
  • Page 8: Verifying Post-Installation Connectivity

    1). Refer to the ArubaOS Quick Start Guide for further details on verifying post- installation network connectivity. Electrical and Environmental Specifications For additional specifications on this product, please refer to the product data sheet at www.arubanetworks.com. Aruba 303 Series Campus Access Points | Installation Guide...
  • Page 9: Regulatory Information

     If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12Vdc, minimum 1A, marked “LPS” and “Class 2”, and suitable for plugging into a standard power receptacle in the US and Canada.
  • Page 10 (2) ce périphérique doit accepter toute interférence, y compris les interférences susceptibles de provoquer un dysfonctionnement. En cas d'utilisation dans la plage de fréquences de 5,15 à 5,25 GHz, cet appareil doit uniquement être utilisé en Aruba 303 Series Campus Access Points | Installation Guide...
  • Page 11: Eu Regulatory Conformance

    5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL EU Regulatory Conformance Aruba Networks Inc., hereby declares that the 303 Series Wireless Access Points are in compliance with directives listed below Radio Equipment Directive 2014/53/EU ...
  • Page 12: Нормативные Требования Евразийского Экономического Союза

    1, Телефон/факс: +375 17 392 28 20 ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-Фараби даңғ ылы, 77/7, Телефон/факс: +7 (727) 355 35 50 Oman OMAN - TRA D080320 R/5543/18 Philippines Type-Approval No. ESD-1817237C Aruba 303 Series Campus Access Points | Installation Guide...
  • Page 13 Singapore DB100427 | Installation Guide Aruba 303 Series Campus Access Points...
  • Page 14: Contact Aruba

    Attn: General Counsel WW Corporate Headquarters 1701 E Mossy Oaks Rd Spring, TX 77389 United States of America Warranty This hardware product is protected by an Aruba warranty. For more details, visit www.hpe.com/us/en/support.html Aruba 303 Series Campus Access Points | Installation Guide...
