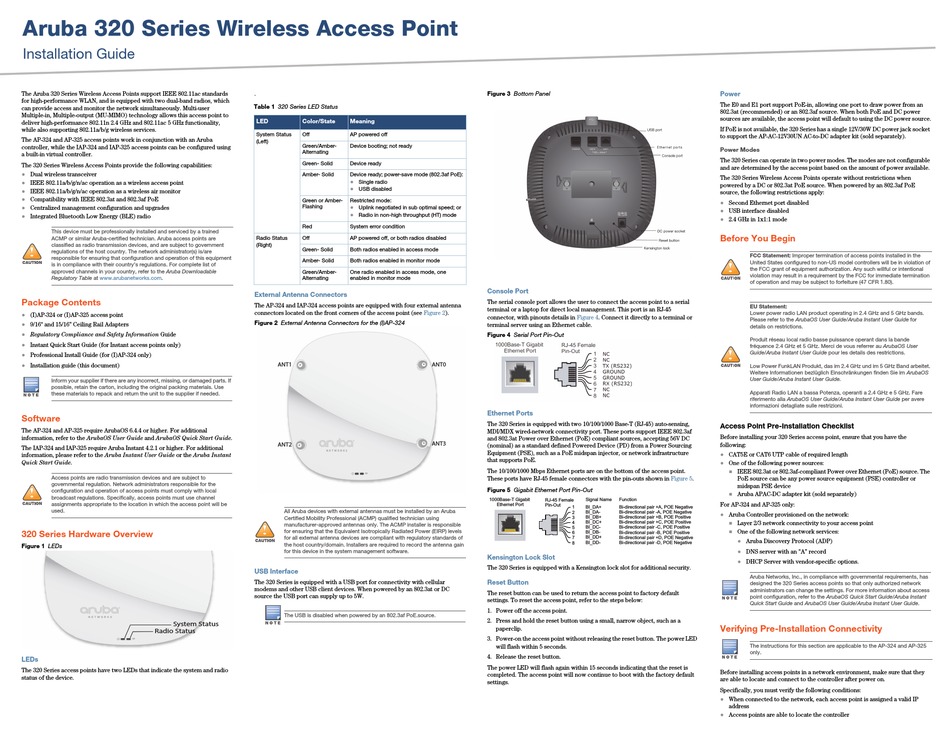

Aruba 324 Installation Manual

Aruba 320 Series Wireless Access Point

Installation Guide

The Aruba 320 Series Wireless Access Points support IEEE 802.11ac standards
for high-performance WLAN, and is equipped with two dual-band radios, which
can provide access and monitor the network simultaneously. Multi-user
Multiple-in, Multiple-output (MU-MIMO) technology allows this access point to
deliver high-performance 802.11n 2.4 GHz and 802.11ac 5 GHz functionality,
while also supporting 802.11a/b/g wireless services.
The AP-324 and AP-325 access points work in conjunction with an Aruba
controller, while the IAP-324 and IAP-325 access points can be configured using
a built-in virtual controller.
The 320 Series Wireless Access Points provide the following capabilities:
 Dual wireless transceiver
IEEE 802.11a/b/g/n/ac operation as a wireless access point

 IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3at and 802.3af PoE

 Centralized management configuration and upgrades
 Integrated Bluetooth Low Energy (BLE) radio
This device must be professionally installed and serviced by a trained
ACMP or similar Aruba-certified technician. Aruba access points are
classified as radio transmission devices, and are subject to government
!
regulations of the host country. The network administrator(s) is/are
responsible for ensuring that configuration and operation of this equipment
is in compliance with their country's regulations. For complete list of
approved channels in your country, refer to the Aruba Downloadable
Regulatory Table at www.arubanetworks.com.

Package Contents

(I)AP-324 or (I)AP-325 access point

 9/16" and 15/16" Ceiling Rail Adapters
 Regulatory Compliance and Safety Information Guide
 Instant Quick Start Guide (for Instant access points only)
Professional Install Guide (for (I)AP-324 only)

 Installation guide (this document)
Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use
these materials to repack and return the unit to the supplier if needed.
Software
The AP-324 and AP-325 require ArubaOS 6.4.4 or higher. For additional
information, refer to the ArubaOS User Guide and ArubaOS Quick Start Guide.
The IAP-324 and IAP-325 require Aruba Instant 4.2.1 or higher. For additional
information, please refer to the Aruba Instant User Guide or the Aruba Instant
Quick Start Guide.
Access points are radio transmission devices and are subject to
governmental regulation. Network administrators responsible for the
!
configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel
assignments appropriate to the location in which the access point will be
used.

320 Series Hardware Overview

Figure 1 LEDs

System Status

Radio Status

LEDs

The 320 Series access points have two LEDs that indicate the system and radio
status of the device.
.
Table 1 320 Series LED Status
LED Color/State Meaning
System Status Off AP powered off
(Left)
Green/Amber- Device booting; not ready
Alternating
Green- Solid Device ready
Amber- Solid Device ready; power-save mode (802.3af PoE):
 Single radio
 USB disabled
Green or Amber- Restricted mode:
Flashing
 Uplink negotiated in sub optimal speed; or
 Radio in non-high throughput (HT) mode
Red System error condition
Radio Status Off AP powered off, or both radios disabled
(Right)
Green- Solid Both radios enabled in access mode
Amber- Solid Both radios enabled in monitor mode
Green/Amber- One radio enabled in access mode, one
Alternating enabled in monitor mode

External Antenna Connectors

The AP-324 and IAP-324 access points are equipped with four external antenna
connectors located on the front corners of the access point (see Figure
Figure 2 External Antenna Connectors for the (I)AP-324
ANT0
ANT1
ANT3
ANT2
All Aruba devices with external antennas must be installed by an Aruba
Certified Mobility Professional (ACMP) qualified technician using
manufacturer-approved antennas only. The ACMP installer is responsible
!
for ensuring that the Equivalent Isotropically Radiated Power (EIRP) levels
for all external antenna devices are compliant with regulatory standards of
the host country/domain. Installers are required to record the antenna gain
for this device in the system management software.
USB Interface
The 320 Series is equipped with a USB port for connectivity with cellular
modems and other USB client devices. When powered by an 802.3at or DC
source the USB port can supply up to 5W.
The USB is disabled when powered by an 802.3af PoE.source.
Figure 3 Bottom Panel
12V . . . 2.5A
12V ... 2.5A
Console Port
The serial console port allows the user to connect the access point to a serial
terminal or a laptop for direct local management. This port is an RJ-45
2).
connector, with pinouts details in Figure 4. Connect it directly to a terminal or
terminal server using an Ethernet cable.
Figure 4 Serial Port Pin-Out

Ethernet Ports

The 320 Series is equipped with two 10/100/1000 Base-T (RJ-45) auto-sensing,
MDI/MDX wired-network connectivity port. These ports support IEEE 802.3af
and 802.3at Power over Ethernet (PoE) compliant sources, accepting 56V DC
(nominal) as a standard defined Powered Device (PD) from a Power Sourcing
Equipment (PSE), such as a PoE midspan injector, or network infrastructure
that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the access point.
These ports have RJ-45 female connectors with the pin-outs shown in
Figure 5 Gigabit Ethernet Port Pin-Out
RJ-45 Female Signal Name Function
Pin-Out
1 BI_DA+ Bi-directional pair +A, POE Negative
BI_DA- Bi-directional pair -A, POE Negative
2
BI_DB+ Bi-directional pair +B, POE Positive
3
BI_DC+ Bi-directional pair +C, POE Positive
4
BI_DC- Bi-directional pair -C, POE Positive
5
BI_DB-
6 Bi-directional pair -B, POE Positive
BI_DD+
7 Bi-directional pair +D, POE Negative
BI_DD-
8 Bi-directional pair -D, POE Negative
Kensington Lock Slot
The 320 Series is equipped with a Kensington lock slot for additional security.

Reset Button

The reset button can be used to return the access point to factory default
settings. To reset the access point, refer to the steps below:
1. Power off the access point.
2. Press and hold the reset button using a small, narrow object, such as a
paperclip.
3. Power-on the access point without releasing the reset button. The power LED
will flash within 5 seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is
completed. The access point will now continue to boot with the factory default
settings.

Power

The E0 and E1 port support PoE-in, allowing one port to draw power from an
802.3at (recommended) or an 802.3af source. When both PoE and DC power
sources are available, the access point will default to using the DC power source.
If PoE is not available, the 320 Series has a single 12V/30W DC power jack socket
to support the AP-AC-12V30UN AC-to-DC adapter kit (sold separately).

Power Modes

The 320 Series can operate in two power modes. The modes are not configurable
and are determined by the access point based on the amount of power available.
The 320 Series Wireless Access Points operate without restrictions when
powered by a DC or 802.3at PoE source. When powered by an 802.3af PoE
source, the following restrictions apply:
Second Ethernet port disabled

 USB interface disabled
 2.4 GHz in 1x1:1 mode
Before You Begin
FCC Statement: Improper termination of access points installed in the
United States configured to non-US model controllers will be in violation of
!
the FCC grant of equipment authorization. Any such willful or intentional
violation may result in a requirement by the FCC for immediate termination
of operation and may be subject to forfeiture (47 CFR 1.80).
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands.
Please refer to the ArubaOS User Guide/Aruba Instant User Guide for
details on restrictions.
Produit réseau local radio basse puissance operant dans la bande
fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au ArubaOS User
!
Guide/Aruba Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im ArubaOS
User Guide/Aruba Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla ArubaOS User Guide/Aruba Instant User Guide per avere
informazioni detagliate sulle restrizioni.

Access Point Pre-Installation Checklist

Before installing your 320 Series access point, ensure that you have the
following:
 CAT5E or CAT6 UTP cable of required length
 One of the following power sources:
IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The

Figure 5. PoE source can be any power source equipment (PSE) controller or
midspan PSE device
Aruba APAC-DC adapter kit (sold separately)

For AP-324 and AP-325 only:
 Aruba Controller provisioned on the network:
 Layer 2/3 network connectivity to your access point
One of the following network services:

 Aruba Discovery Protocol (ADP)
DNS server with an "A" record

DHCP Server with vendor-specific options.

Aruba Networks, Inc., in compliance with governmental requirements, has
designed the 320 Series access points so that only authorized network
administrators can change the settings. For more information about access
point configuration, refer to the ArubaOS Quick Start Guide/Aruba Instant
Quick Start Guide and ArubaOS User Guide/Aruba Instant User Guide.

Verifying Pre-Installation Connectivity

The instructions for this section are applicable to the AP-324 and AP-325
only.
Before installing access points in a network environment, make sure that they
are able to locate and connect to the controller after power on.
Specifically, you must verify the following conditions:
When connected to the network, each access point is assigned a valid IP

address
 Access points are able to locate the controller
