Page 2: Table Of Contents
Information which is already a part of the Installation & Operating Instructions, is not repeated here again. If these instructions are not available, you can always download them in their latest version from our website at www.brunner.de. Older versions can be ordered directly from Ulrich Brunner GmbH.

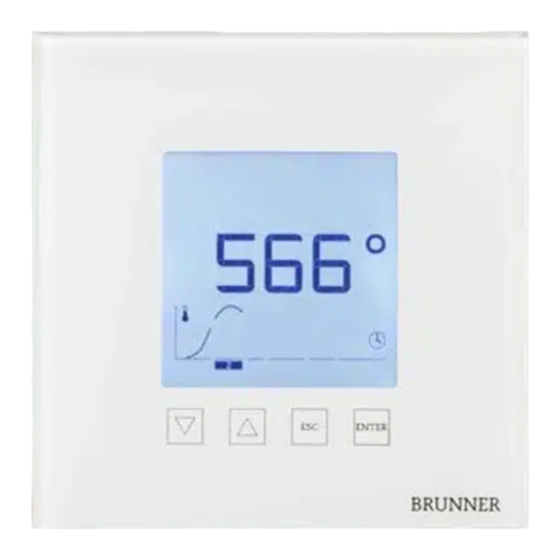

Page 3: Eas 3 With Display
The EAS parameters can be changed directly on the display. The following graphic shows the different para- meter blocks, which are available for selection. You can always leave the menu by pressing the ESC button. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 4 Do not press any buttons during calibration, otherwise a calibration error could occur! Calibration is possible with open stove door only! Calibration is not possible, when the stove type ‘KSO’ is selected. The parameters P202 and P204 restore the settings to factory default. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 5 Im. 2: Einstellen des Nullpunktes In the following parameter blocks you can find the parameters related to combustion, to A4 relay and general EAS performance. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 10: Parameters Menu (Software > 321)
Do not press any buttons during calibration, otherwise a calibration error could occur! Calibration is possible with open stove door only! Calibration is not possible, when the stove type ‘KSO’ is selected. The parameters P202 and P204 restore the settings to factory default. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 11 Im. 4: Einstellen des Nullpunktes In the following parameter blocks you can find the parameters related to combustion, to A4 relay and general EAS performance. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 16: Eas 3 App
If settings on the device are changed via app, the oven door must be open during this time. Settings on the EAS 3 may only be made when the furnace control is in idle mode. There must be no burn- ing.
Page 17 - The “red” LED on device is lit: - Connect the end device with the Service access point: WLAN name: EAS3SERVICE Password: BR987654321 Open the application; Connection set-up: © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 18 LOGIN to activate the Service access. After successful login (authentication), the application will auto- matically switch to the Craftsman menu; more details in sec- tion Parameters menu for craftsmen. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 19: Craftsman Logout
Sign-in as contractor (Craftsman) (see chapter Login for craftsman). When you have successfully switched into Contractor Programming Mode (LED is red), and the EAS 3 application is open, the Craftsman menu will be opened automatically when the sign-in (authentication) process is completed.
Page 20: Selection Of Heater Type (P100)
SELECTION OF HEATER TYPE (P100) Press the Select heater button to open the P100 menu. Click on the row with the heater type indication (e.g. HKD 5, HKD 5.1) to open a pop-up menu. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 21: Calibration Of Motor (P200)
Now you can select a heater type number between 01 and 070. The number associated with the heater type can be found in the programming instructions or in the installation instructions (chapter Commissioning of EAS 3). The value must be confirmed after selection by clicking the Set value button.
Page 22 0 and the previous calibration will be deleted. Click Enter, to save the new motor setting. Note: The motor calibration in case of damper flap is analogical to the air supply calibration Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 23: Heater Parameters (P300)
If the values cannot be shown on a single page, you can scroll down to see the remaining part. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 24: Combustion Parameters (P400)
Reset now. 3.4.4 COMBUSTION PARAMETERS (P400) In this menu, you can set the parameters for the combustion process. The value ranges are shown in the programming instructions (chapter General parameters). Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 25 The parameters of combustion process can be reset to initial values by clicking P407 Default settings. The pop-up menu must be confirmed by selecting Reset now. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 26: General Parameters I (P500/1)
1, after automatic transmis- sion of data, the current values for each parameter are shown. If the values cannot be shown on a single page, you can scroll down to see the remaining part. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 27: General Parameters 2 (P500/2)
3.4.6 GENERAL PARAMETERS 2 (P500/2) In this menu you can set the General parameters’ part 2 (P513 – P517). The value ranges are shown in the programming instructions (chapter General parameters). © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 28 The parameters of combustion process can be reset to initial values by clicking P518/2 Default settings. The pop-up menu must be confirmed by selecting Reset now. Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 29: Damper Flap Parameters (P600)
DAMPER FLAP PARAMETERS (P600) The damper flap function can be configured in the P600 menu. Under P600 Damper flap K2, after automatic transmission of data, the current values for each parameter are shown: © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 30 When P601 is set to „1”, the damper flap is present and the damper flap symbol is visible too. This symbol changes during heater operation, depending on its current status: Damper flap open 1/4 closed 1/2 closed 3/4 closed closed Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 31: For The Damper Flap Parameters
K2 Step width for flap movement in flap CLOSED direction dT plus K2 Temperature difference for temperature rise on T1 dT minus K2 Temperature difference for temperature drop on T1 © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 32: Stove Parameters (Software ≤ 321)
100...1200 P311 Nachlege Start Threshold value note reload- start °C 100...1200 P312 Nachlege Ende Threshold value note reload- end °C 100...1200 Preset parameter values: see Preset parameter values for stove types Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 33: Stove Parameters (Software > 321)
100...1200 P313 Nachlege Start Threshold value note reload- start °C 100...1200 P314 Nachlege Ende Threshold value note reload- end °C 100...1200 Preset parameter values: see Preset parameter values for stove types © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 34: General Parameters
Combustion settlement time 1...20 P509 Ofen kalt Temp. Temp. for monitoring, if stove cold °C 0...50 P510 Ofen kalt Zeit Time for monitoring, if stove cold 10...30 P511 Min.Abbrand Minimal combustion time 20...150 Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 35 Configuration of input DI 2 1 (ON with 0 V) 2 (ON with 12 V) Number of started combustion cycles P516 Anz. Heizvorgänge (Stage2) P517 Max E-Temp. Maximal temperature of electronics °C © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 36: Preset Parameter Values For Stove Types Without Damper Flap (Software ≤ 321)
°C °C HKD2 HKD4 HKD5 HKD6 B5 - B6 8 HKD4SK KamKe RF55 RF66 KOPA STIL EckKa 180Ka *Grun- HF10 HF15 HFSK SF10 SFSK 25 B7 - B8 26 HerdKe KKE33 Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 37 DF 33 HKD3 chitek- boiler Scandi- navian * The parameter set 16 concerns exclusively handcrafted masonry heaters. The parameter values must be adapted to the circumstances! HefeTemp. = Combustion error temp. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 38: Preset Parameter Values For Stove Types Without Damper Flap (Software > 321)
°C °C °C °C °C HKD2 HKD4 HKD5 HKD6 B5 - B6 HKD4SK KamKe RF55 RF66 KOPA STIL EckKa 180Ka *Grun- HF10 HF15 HFSK SF10 SFSK B7 - B8 HerdKe KKE33 Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 39 DF 33 HKD3 Architek- Kessel Scandi- navian * The parameter set 16 concerns exclusively handcrafted masonry heaters. The parameter val- ues must be adapted to the circumstances! HefeTemp. = Combustion error temp. © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 40: Preset Parameter Values For Stove Types With Damper Flap (Software ≤ 321)
°C °C °C HKD2 HKD4 HKD5 HKD6 B5 - B6 HKD4SK KamKe RF55 RF66 KOPA STIL EckKa 180Ka GrundO HF10 HF15 HFSK SF10 SFSK B7 - B8 HerdKe KKE33 HKD2.2XL HKD2.2XLSK Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 41: Preset Parameter Values For Stove Types With Damper Flap (Software > 321)
TYPES WITH DAMPER FLAP (SOFTWARE > 321) ltem Name T1_Soll_K2 dPplus%K2 dPminus% K2 dT plus K2 dT minus K2 °C °C °C HKD2 HKD4 HKD5 HKD6 B5 - B6 HKD4SK KamKe © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 42 B7 - B8 HerdKe KKE33 HKD2.2XL HKD2.2XLSK WF 33 WF 50 Panorama GOT / GOT+GOF flat GOT / GOT +GOF corner GOT / GOT +GOF Tunnel WF 25 Architektur HKD 7-12 Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 43: Switching Behaviour Of Relay A4 Depending On Digital Inputs Di 1 And Di 2
12VDC 0VDC closed 0VDC 12VDC open 12VDC 12VDC open P501 P502 P514 P515 DI 1 DI 2 Relais A4 0VDC 0VDC closed 12VDC 0VDC closed 0VDC 12VDC closed 12VDC 12VDC open © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 44 0VDC 12VDC closed 12VDC 12VDC closed P501 P502 P514 P515 DI 1 DI 2 Relais A4 0VDC 0VDC closed 12VDC 0VDC closed 0VDC 12VDC closed 12VDC 12VDC closed 0VDC 0VDC open Programming Instructions EAS 3 (2.2) © 2022 Brunner GmbH...
Page 45 12VDC 12VDC open P501 P502 P514 P515 DI 1 DI 2 Relais A4 0VDC 0VDC open 12VDC 0VDC open 0VDC 12VDC closed 12VDC 12VDC open 0VDC 0VDC offen 12VDC 0VDC closed © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 46: Updating Via Eas3
IMPORTANT: During the update, please REMEMBER: 1. The stove door must be open 2. Distance between mobile device and the EAS 3: max. 3m 3. Mobile device battery status at least 30% The EAS3 controller software is integrated with the application and is updated together with the application software.
Page 47 If you click on the menu without starting the update, it cannot be ensured that the application will function proper- When the update is completed successfully (= 100%), the application will be completely functional. Information about the current ver- sion and available updates can be checked under Menu / Update: © 2022 Brunner GmbH Programming Instructions EAS 3 (2.2)
Page 48 Ulrich Brunner GmbH BRUNNER products are offered and sold exclusively by qualified dealers and service cen- tres. Zellhuber Ring 17-18 Technical and range-related changes as well as errors reserved. D-84307 Eggenfelden All images may contain additional functions or special equipment that are subject to a sur- charge.
