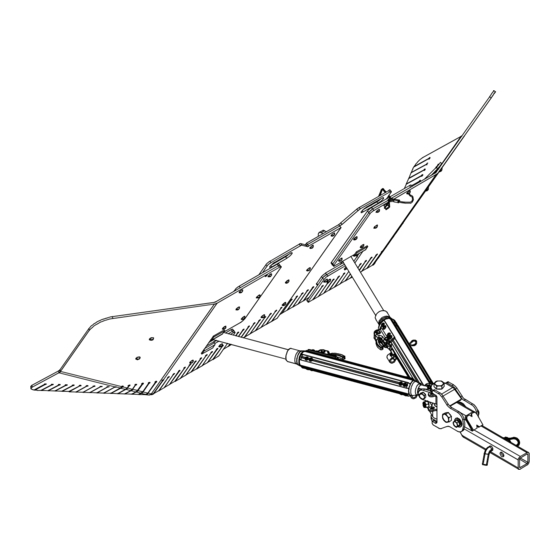

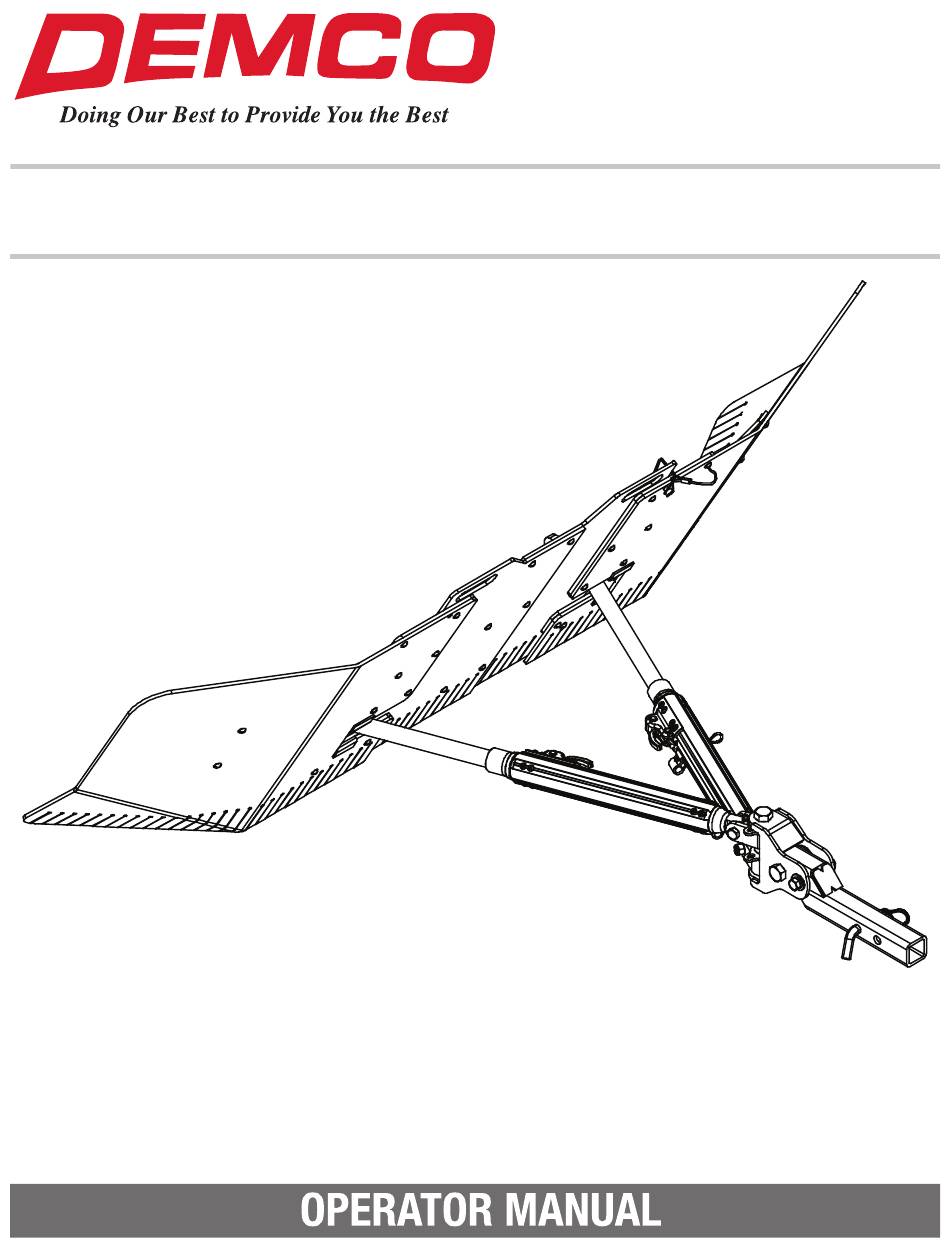

- Page 1 TB20048, Rev 1 08/16 SENTRY DEFLECTOR Tow Bar Mounted The Sentry Deflector fits pull ear widths of 20” to 31”...
-
Page 2: General Information
INTRODUCTION Thank you for purchasing a Demco Sentry deflector. We feel you have made a wise choice and hope you are com- pletely satisfied with your new tow bar. WARRANTY POLICY, OPERATOR MANUALS & REGISTRATION Go online to www.demco-products.com to review Demco warranty policies, operator manuals and register your Demco product. - Page 3 ASSEMBLY INSTRUCTIONS 3. Attach tow bar to towed vehicle and latch rear connect- ing legs by backing towed vehicle. Long end of Sentry connecting clevis must be on top. If not, unlatch rear connecting leg and rotate shaft, reattach. 4. Slide right and left wings into Sentry connecting clevis until wings are approximately 1/4”...
-
Page 4: Mounting Instructions
MOUNTING INSTRUCTIONS 1. Slide right and left wings into Sentry connecting clevis until wings are approximately 1/4” away from bottoming out against clevis. 3. Push down on center section until it snaps into place. Insert pin through hole provided and snap wire over pin to secure Sentry together as a unit. - Page 5 OPTIONAL ADAPTOR KITS SENTRY ADAPTER KIT (9523027) FOR ROADMASTER MX & MS BASEPLATES Demco Excalibar II or Stowmaster 5000 & Blue Ox Aladdin on Blue Ox Aventa II on Demco Dominator, Sterling & Falcon on Commander on Eagle 5000 & 8000 on...
-
Page 6: Parts Breakdown
PARTS BREAKDOWN DRILLED HOLES *Commander Hardware Demco Tabless Baseplates STANDARD BRACKET WITH DEMCO SENTRY DEFLECTOR Demco Excalibar II or Demco Dominator, Sterling & Falcon on Stowmaster 5000 & Blue Ox Aladdin on Blue Ox Aventa II on Excalibar, or Aluminator Commander on Demco &... -
Page 7: Parts List
PARTS LIST SENTRY (9523135) PARTS LIST ITEM PART # QTY DESCRIPTION ITEM PART # QTY DESCRIPTION 10138-81 SENTRY MOUNTING CLEVIS 02875-95 BUSHING .875 LONG 07164-95 BOLT, .50 X 3” 00698-95 BUSHING 1” LONG 02178 NUT, .50 NYLON LOCK 11264 BOLT, .25NC X 1.50” PHILLIPS TRUSS 03809 WEAR BUSHING, EXCALI-BAR &...
