Summary of Contents for Demco Hijacker 6005 UMS

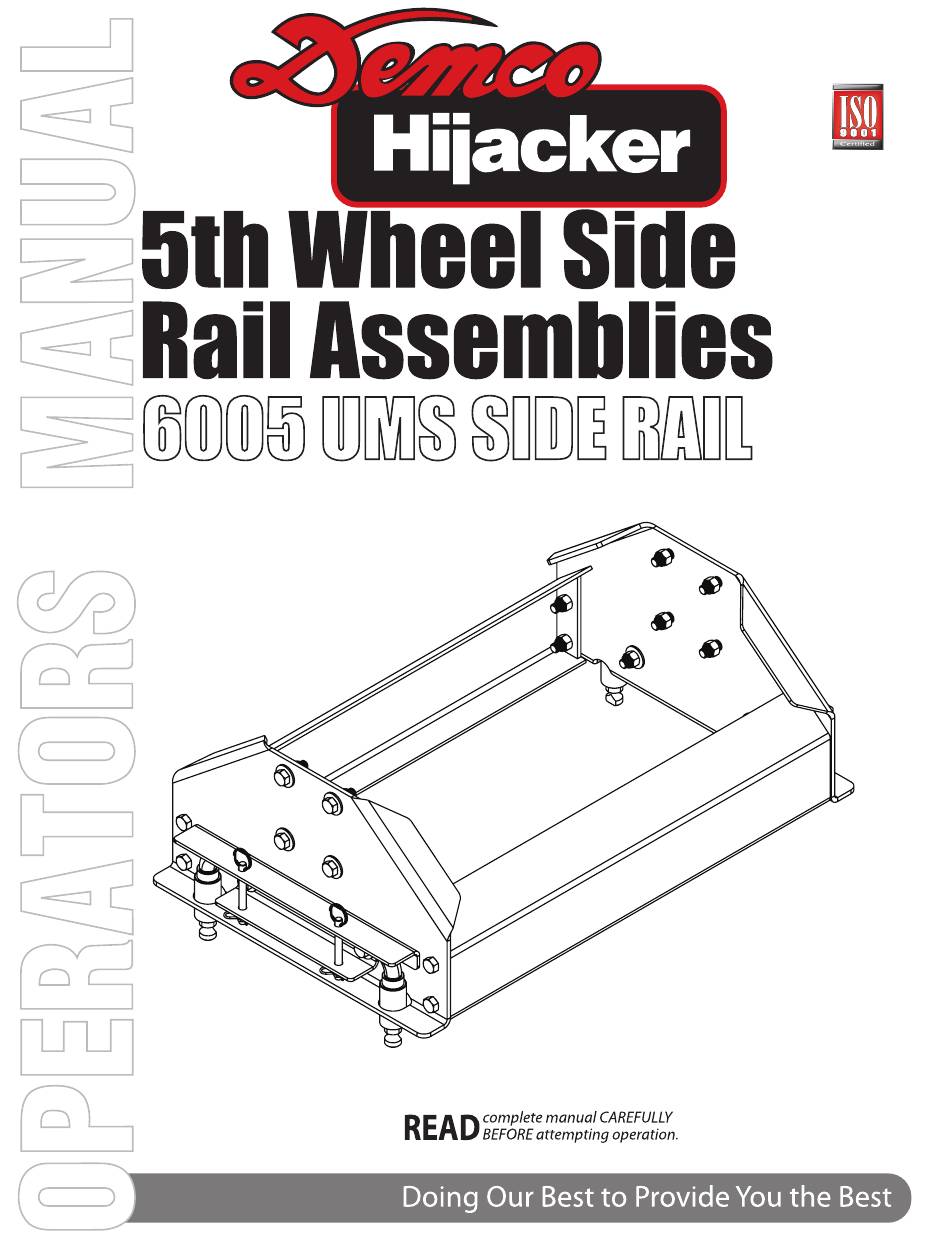

- Page 1 8-12 HJ26005 rev 0...
- Page 2 6005 UMS Side Rail Assembly Instructions Place the base rails on a flat level surface and insert and lock the side rail plates into the base rail holes as shown in drawing # 1. Loosely bolt the saddle bracket (5990) to the side rails using the 1/2” x 1 1/2” bolts, flat washers, and lock nuts provided in the 6005 bolt package.
- Page 3 6005 Parts Breakdown 6005 Parts Breakdown ITEM PART # DESCRIPTION 00085 .50 FLAT WASHER 01254 BOLT, .50 NC X 1.50 GR.5 HEX 02178 NUT, .50NC LOCK, NY. INSERT 07225 SPLIT RING 14262-30 UMS SIDE RAIL BRACE 14263-95 UMS LOCK PIN ASSEMBLY, RIGHT ITEM PART # DESCRIPTION...
- Page 4 P.O. BOX 189 4010 320th St., BOYDEN, IA. 51234 PH: (712) 725-2311 FAX: (712) 725-2380 TOLL FREE: 1-800-54DEMCO (1-800-543-3626) www.towdemco.com...
