Summary of Contents for Demco Hijacker 5998 Ultra Slide

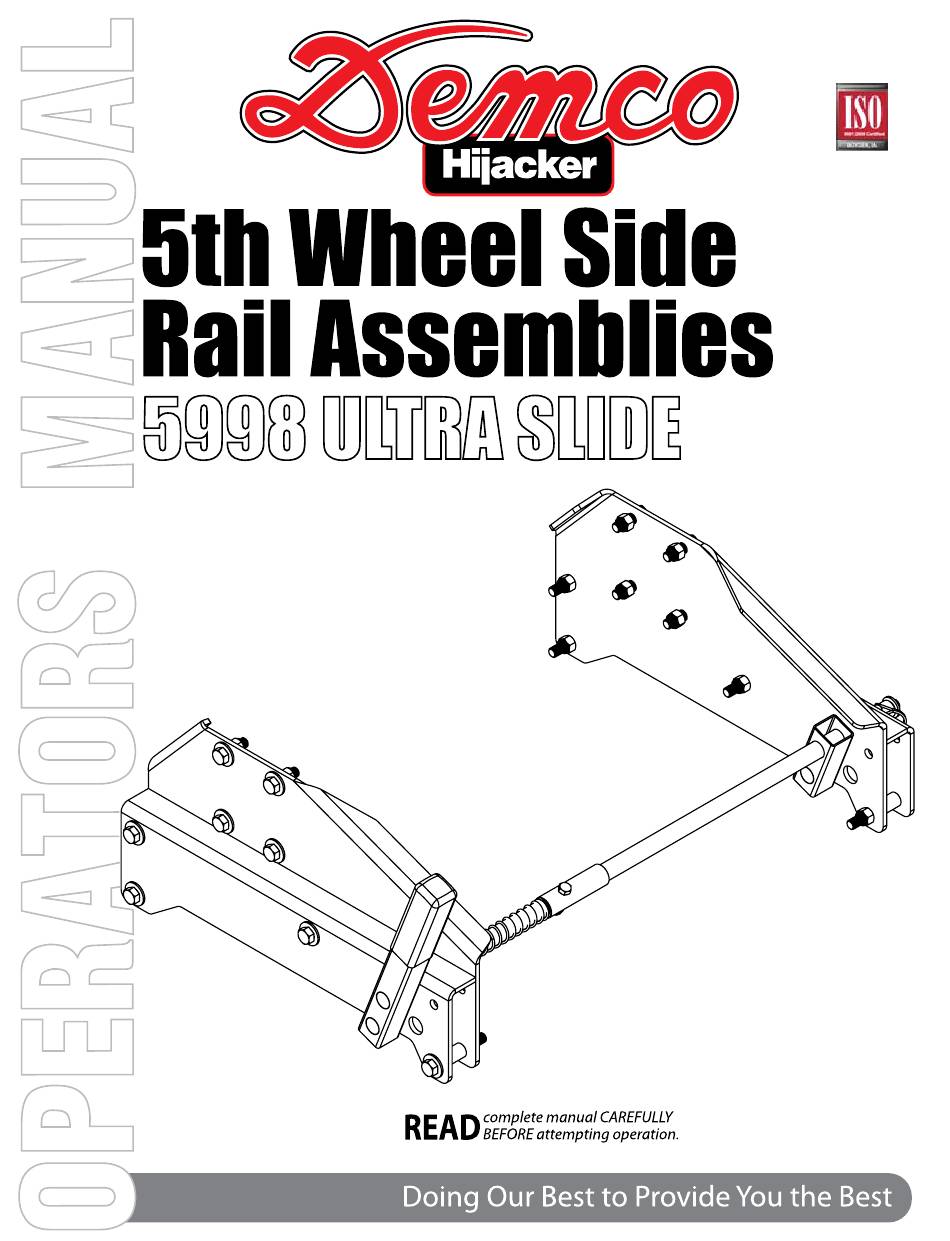

- Page 1 8-12 HJ25998 rev 0 Page 1...
- Page 2 Page 2...
-
Page 3: Torque Specifications
WARRANTY POLICY, OPERATOR MANUALS & REGISTRATION Go online to www.demco-products.com to review Demco warranty policies, operator manuals and register your Demco product. Torque Specifications BOLT TORQUE DATA FOR STANDARD NUTS, BOLTS, AND Torque figures indicated are valid for non-greased CAPSCREWS. - Page 4 5998 ULS Assembly Instructions On a flat, level surface, place the 5999 slider base rails into the 6014 bedrails and pin them into place with the 14226 bedrail pull pins. Drop the two siderails onto the base rails and install the 14178-95 spacer bushings under the slider base rails using the ½”...
- Page 5 5998 ULS Alignment Procedure In the event that the locking bar is binding or out of alignment slightly, the following procedure has worked to eliminate this occurrence should it happen. Loosen off the bolts that attach the side plates to the saddle bracket and remove the top 2 bolts from either side.
- Page 6 5998 Parts Breakdown 5998 Parts Breakdown ITEM PART # QTY DESCRIPTION 00085 .50 FLAT WASHER 00908 BOLT, .375 NC X 1.75 HEX GR.5 01254 BOLT, .50 NC X 1.50 GR.5 HEX 01897 BOLT, .50NC X 3.50 HEX HEAD 02178 NUT, .50NC LOCK, NY. INSERT 02592 NUT, .375NC NYLON LOCK 09229...
- Page 7 Page 7...
- Page 8 4010 320th St., BOYDEN, IA. 51234 PH: (712) 725-2311 FAX: (712) 725-2380 TOLL FREE: 1-800-54DEMCO (1-800-543-3626) www.demco-products.com Go online to www.demco-products.com for Demco warranty policies, operator manuals & product registration. Page 8...
