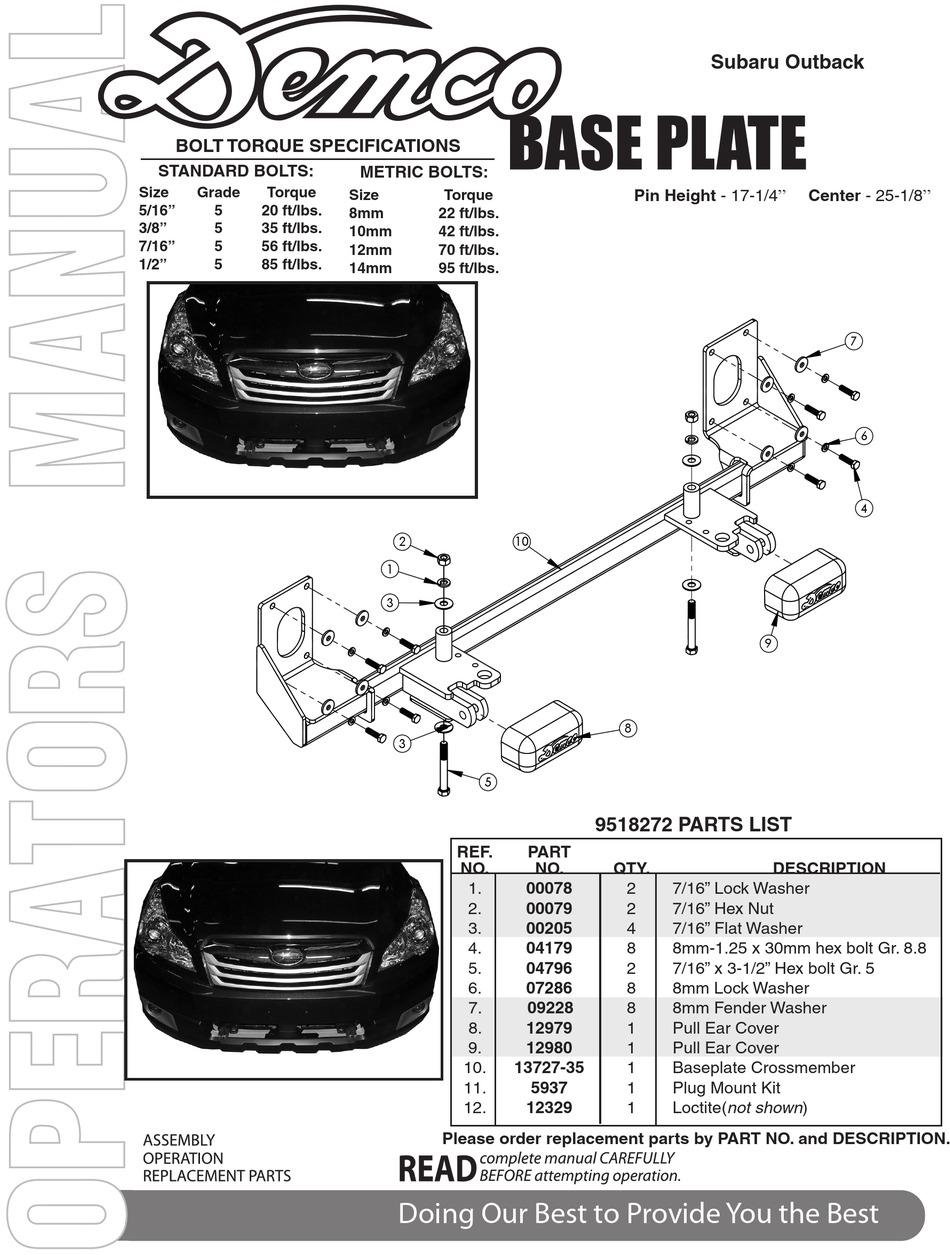

Demco BASE PLATE Operator's Manual

BOlT TORQuE sPECifiCaTiONs
sTaNDaRD BOlTs:
size grade Torque
5/16" 5 20 ft/lbs.
3/8" 5 35 ft/lbs.
7/16" 5 56 ft/lbs.
1/2" 5 85 ft/lbs.
mETRiC BOlTs:
size Torque
8mm 22 ft/lbs.
10mm 42 ft/lbs.
12mm 70 ft/lbs.
14mm 95 ft/lbs.
2 10
1
3
3
5
REf. PaRT
NO.
1. 00078
2. 00079
00205
3.
04179
4.
04796
5.
6. 07286
7. 09228
8. 12979
12980
9.
13727-35
10.
11.
12. 12329
Please order replacement parts by PaRT NO. and DEsCRiPTiON.
Doing Our Best to Provide You the Best
subaru Outback
Pin Height - 17-1/4"
8
9518272 PaRTs lisT
NO. QTy.
2 7/16" Lock Washer
2 7/16" Hex Nut
4 7/16" Flat Washer
8 8mm-1.25 x 30mm hex bolt Gr. 8.8
2 7/16" x 3-1/2" Hex bolt Gr. 5
8 8mm Lock Washer
8 8mm Fender Washer
4010 320TH ST. PO BOX 189
BOYDEN, IOWA 51234
1 Pull Ear Cover
THE DRAWING AND ALL
INFORMATION THERE
1 Pull Ear Cover
ON ARE THE PROPERTY OF
DEMCO
1 Baseplate Crossmember
5937 1 Plug Mount Kit
1 Loctite(not shown)
Center - 25-1/8"
7
6
4
9
PART #
00078
2 00079
3 00205
4 04179
DEsCRiPTiON
5 04796
6 07286
7 09228
8 12979
9 12980
10 13270-35
DRAWN BY
DATE
03/25/10
DKY
ENG APPOV.
DATE
DKY
03/29/10
UNLESS OTHERWISE
THIRD ANGLE
SPECIFIEDALL DIMENSIONS
PROJECTION
ARE IN INCHES
TOLERANCES
.X = .060 MIN. MACHINE SUFACE 250
.XX = ±.030 BREAK ALL SHARP EDGES
.XXX = ±.010 BEND AND DRAFT ±1°
