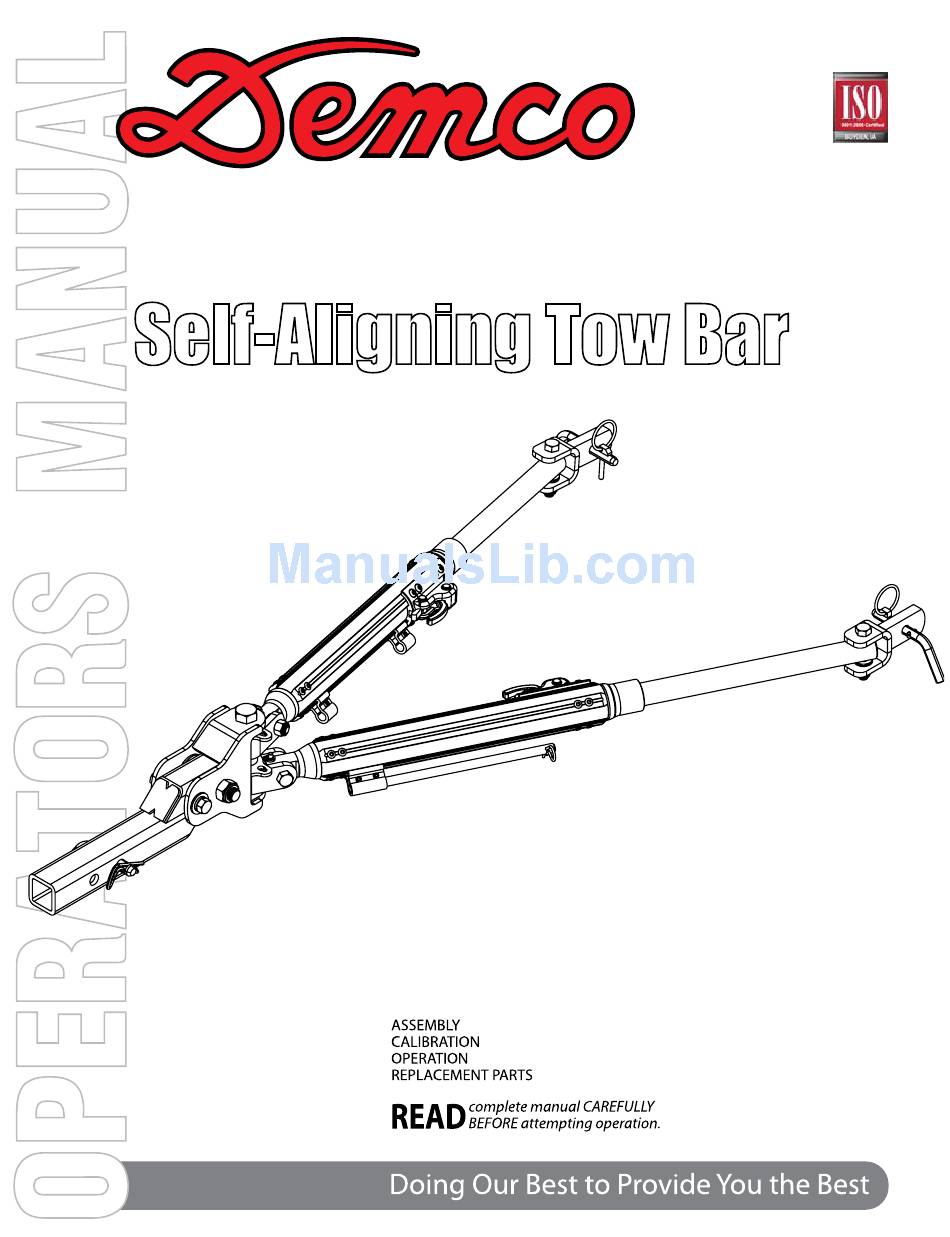

- Page 1 3/17 TB20036,Rev 12 Dominator Page 1...
-
Page 2: Table Of Contents
WARRANTY POLICY, OPERATOR MANUALS & REGISTRATION Go online to www.demco-products.com to review Demco warranty policies, operator manuals and register your Demco product. Exceeding weight limitations or not using a towing vehicle larger and at least 500 lbs. heavier than the... -
Page 3: Safety Sign Location
SAFETY SIGN LOCATIONS Types of safety sign and locations on the are shown in illustration below. Good safety requires that you familiarize yourself with various safety signs, type of warning, and particular func- tion related to that area, that requires your SAFETY AWARENESS. CAUTION Page 3... -
Page 4: Safety Definitions
This signal word Demco, 4010 320th Street, Boyden, IA 51234, ph: (712) is to be limited to the most extreme situations typically for 725-2311 or (712) 725-2302, Toll Free: 1-800-543-3626 tow bar components which, for functional purposes, cannot Fax: (712) 725-2380, http://www.demco-products.com... -
Page 5: Lighting And Marking
LIGhTING AND MARkING It is the responsibility of owner to know lighting and marking requirements of local highway authorities and to install and maintain equip- ment to provide compliance with regulations. Light bar kits are available from your dealer or from manufacturer. SAFETY SIGN CARE • Keep safety signs clean and legible at all times. -
Page 6: During & Following Operation
DURING OPERATION • Always follow state and local regulations regarding auxiliary lighting when towing. Be sure to check with local law enforcement agen- cies for your own particular regulations. Only safety cables (not elastic or nylon/plastic tow straps) should be used to retain connec- tion between towing unit and towed vehicle in event of separation. -
Page 7: Performing Maintenance
A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this tow bar. • Any disassembly of the Dominator must be performed by an authorized dealer or sent back to Demco for repair and maintenance. Page 7... -
Page 8: Bolt Torque
Torque Specifications BOLT TORqUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS. Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt chart as guide. Re- place hardware with same grade bolt. NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout assembly of equipment. Torque figures indicated are valid for non-greased or non-oiled threads and heads unless otherwise specified. -
Page 9: Important Notice
Be sure to check that receiver on towing vehicle is not inset to far. When attaching a Demco towing product it is important that turning clearance is adequate. A receiver that is inset to far on a towing vehicle will shorten turning radius. Failure to check this may result in towing or towed vehicle to be damaged. -
Page 10: Hooking Up, And Operating Instructions
Perform a tow bar safety check, look for any Step 1. Out of the box, the Dominator tow bar is setup for loose fasteners, condition of safety cables, excessive movement the recommended positions for the safety cables and light in connecting leg shaft when the shaft is extended and locked. -
Page 11: Unhooking Tow Bar
Up Position Down Position NOTE: The Dominator comes with a 1-1/2” off-set receiver that can be flipped to help level the tow bar with the towed ve- hicle. The receiver is in the up position from factory, to change to the lower position, remove both 1/2” bolts and washer from side of receiver joint head. -
Page 12: Dominator Tow Bar Parts Breakdown
02397 LYNCH PIN need to be serviced before towing. 02534 WASHER, MACHINE .75 X 14GA NR (PLATED) 02961 .75NC NYLON INSERT LOCK NUT Dominator must be serviced by an 03803-81 CONNECTING CLEVIS authorized dealer or sent to Demco. 03809 CLEVIS SPACER WASHER 03878-95... - Page 13 US Patent #’s - 6,764,092, 6,612,604, 6,502,847, 7,837,216, 8,573,630 & 8,573,629 DECALS ORDER qTY. DESCRIPTION TB21036 2 Dominator Decal Torque to 85 ft/lbs TB21038 1 User Instruction Decal TB21037 1 Warning Do Not Exceed Weight Limits & Manufacturers Patent / Hitch Rating Decal Please order replacement parts by PART NO.
-
Page 14: Safety Cable Kit Parts Breakdown
SAFETY CABLES (STANDARD & REqUIRED FOR TOWING) PARTS LIST REF. PART qTY. DESCRIPTION 9523051 54” Safety Cable kit (complete) Standard 13273 Straight Safety Cable w/Hooks 54” 9523055 64” Safety Cable kit (complete) Optional 13507 Straight Safety Cable w/Hooks 64” Please order replacement parts by PART NO. and DESCRIPTION. SAFETY CABLES ExTENSIONS PARTS LIST REF. -
Page 15: Optional 4" Or 6" Drop/Lift Receiver Hitch
6-WayAuxiliary Coiled Lighting Cable w/recpt. 9523009 9523004 & Towed Vehicle Tail Light Wiring/Diode Kit 9523010 Towed Vehicle Tail Light Wiring/Diode Kit Only 9523011 9523006 & Towed Vehicle Tail Light Wiring/Diode Kit 9523054 7 to 6-WayAuxiliary Coiled Lighting Cable w/recpt. NOTE: For replacement parts, call original manufacturer Please order replacement parts by PART NO. and DESCRIPTION. or DEMCO at 1-800-543-3626 Page 15... -
Page 16: Optional Locking Pins
OPTIONAL TOW-BAR TO BASE PLATE LOCkING PINS PARTS LIST REF. PART DESCRIPTION 9523067 Tow-Bar to Base Plate Locking Pin Set 14054 Tow-Bar to Base Plate Single Locking Pin Assembly Please order replacement parts by PART NO. and DESCRIPTION. OPTIONAL 3-PIECE LOCkING PINS PARTS LIST REF. -
Page 17: Optional Tow Bar Light Bar Parts Breakdown
LIGhT BAR PARTS LIST REF. PART qTY. DESCRIPTION kkLB Dominator Light Bar (complete) TESTING LIGhTS BEFORE USE 01772 Nylon Security Strap with hooks & tightener 1. With headlights in “ON” position, the tail lights and the... - Page 18 Page 18...
- Page 19 Page 19...
- Page 20 4010 320th St., BOYDEN, IA. 51234 Ph: (712) 725-2311 FAx: (712) 725-2380 TOLL FREE: 1-800-54DEMCO (1-800-543-3626) www.demco-products.com Go online to www.demco-products.com for Demco warranty policies, operator manuals & product registration. Page 20...
