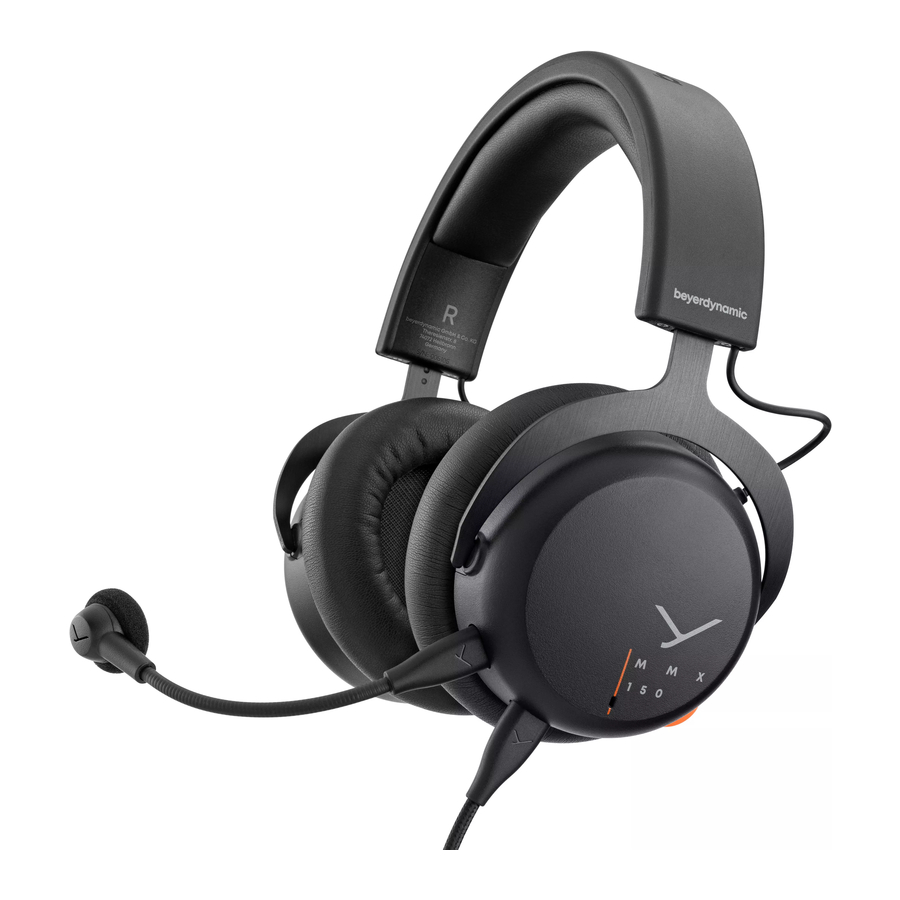

Beyerdynamic MMX 150 - USB Gaming Headset (closed) Manual

Also See for MMX 150:

Table of Contents

SERVICE

If you require service, please contact qualified service personnel or directly:
beyerdynamic Service- und Logistik Center
E-mail: service@beyerdynamic.de
Dismantling the headset yourself will invalidate the guarantee.

1 x USB-C to USB-A cable, 2.4 m (7.9 ft), to connect the headset to a computer
1 x USB-C to 4-pole Jack (CTIA) cable, 1.2 m (3.9 ft), to connect the headset to analogue/mobile devices*
1 x Microphone pop shield

*Control elements and Augmented Mode are not available when using this cable

Accessories and replacement equipment can be found at: www.beyerdynamic.com
If you have technical questions while using the headset or need further guidance, please visit our FAQ website at: support.beyerdynamic.com

Use a soft cloth moistened with water to clean the surface.
Make sure that no water enters the headset.
Do not use cleaning agents containing solvents.
Never use a vacuum cleaner for cleaning the headset, as this may cause irreparable damage.

Observe the position of the jack

Press USB-C connector firmly into the headset

Pull the connection carefully to disconnect, if you want to use another cable

Using the USB-C to USB-A cable, connect the headset (USB-C) and the other end (USB-A) to your device (e.g. computer / console).
For devices with USB-C ports, please use a thirdparty USB-A to USB-C adapter or cable.
Once the headset is connected, it will automatically install the drivers. This may take a few seconds. It should now be ready and selected as the main device. The lightguide around the control wheel will illuminate orange.
Please also check your systems audio settings and select the MMX 150 as input and output device, if it's not already selected.

CONNECTION TO THE GAME CONTROLLER, SOUNDCARD, MOBILE ETC.

Connect the USB cable as previously described and connect it to your device's jack socket. The output signal should now be played back by the MMX 150, as well as input signals that will be picked up by the microphone. When on a computer please also check your systems audio setting and select your computers sound card as input and output d evice.
Please note: The control elements and Augmented Mode are not a vailable when using this cable, since there is no power supply.
Connect the jack connector of the cable to a headphone socket only! If you connect the headset to any other jack socket, the headset could be damaged.

The lightguide will illuminate orange, when the headset is connected to a device (e.g. computer / console) and nothing else has been activated.

Press the control wheel briefly to mute the microphone.
A high sound will indicate the mute status and a red light at the end of the microphone, as well as around the control wheel, will illuminate.
Press the control wheel briefly again to un-mute the microphone. A deep sound will indicate the un-muted status and the red light will go off.

Using the Augmented Mode, your headphones works as if they were open i.e. you can hear your own voice more naturally and your surroundings such as people talking to you or the doorbell.
Press and hold the control wheel (2 seconds). The Augmented Mode is enabled when you hear the voice prompt. The lightguide around the control wheel will illuminate turquoise.
To disable the Augmented Mode, press and hold the control wheel again for 2 seconds. The turquoise light will go off.

To remove the ear pad, gently turn it counter-clockwise and pull it off.
To attach the ear pad, place it onto the orange housing and gently turn it clockwise until it sits tight.

Headphone
Transducer type		Dynamic
Operating principle		Closed
Sound coupling to the ear		Circumaural
Frequency response		5 - 30,000 Hz
Impedance		32 Ω
Max. sound pressure level @1 mW / 500 Hz		116 dB SPL
THD		< 0.5%
Headband pressure		4.5 N
Connection		USB-C
Weight (headphone)		304 g (10.72 oz)
Microphone
Transducer type		Electret condenser
Capsule diameter		9.9 mm (0.39")
Polar pattern		Cardioid
Frequency response		5 - 18,000 Hz
Max. SPL		118 dB
Signal-to-noise ratio		67 dB

Risk of injury

We would like to point out that excessively high volumes and long listening times may cause hearing damage. Hearing defects always constitute an irreversible impairment of hearing ability. If you suffer from tinnitus, do not use headphones or reduce the volume.
When connecting the headset, please ensure that the volume is turned down to minimum. Adjust the volume after putting on the headset.

Danger to life

Headphones drastically reduce perception of external sounds. Using headphones in road traffic can be potentially dangerous. The user's hearing must not be impaired to the extent that it causes road safety risks. Please also make sure that you do not use the headphones in traffic, especially within an area of potentially dangerous machines and tools.
Furthermore, avoid using headphones in situations where hearing must not be affected, especially when crossing a railway crossing or at a construction site.

Liability / intended use

Do not use the product for any application which is not described in this product information.
beyerdynamic is not liable for improper use of the product and its accessories.
