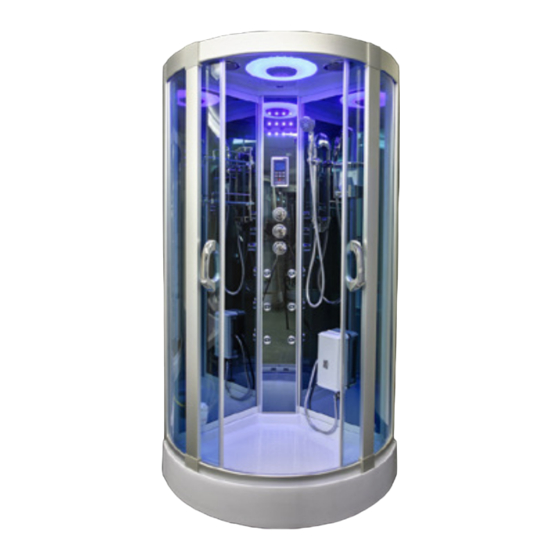

Model: 9008 / 9008S / 9012
9013 / 9040
Assembly & Fitting Instructions
For the latest fitting instructions please visit www.insigniarange.co.uk
Contents
Introduction
Staring the Installation
Connecting The Shower Accessories 23
Product Testing
Frequently asked Questions
3
5
6
7
11
26
27
33
38
39
40
43
44
Advertisement
Table of Contents
Related Manuals for Insignia 9008
Summary of Contents for Insignia 9008
-
Page 1: Table Of Contents

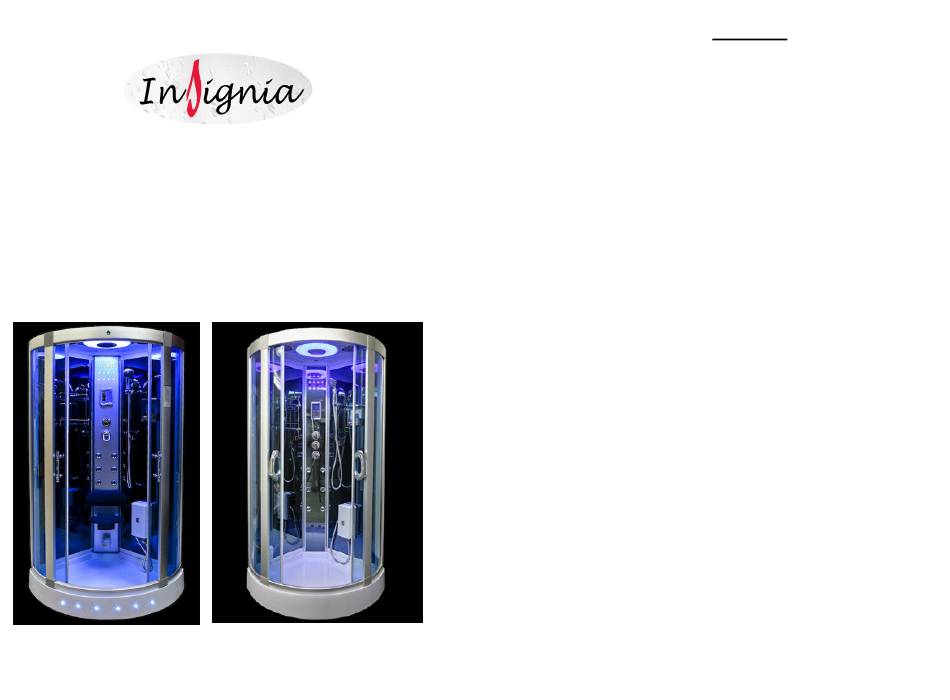

Contents Introduction Electrical Requirements Tools Required Model: 9008 / 9008S / 9012 What’s in the boxes Staring the Installation 9013 / 9040 Connecting The Shower Accessories 23 Electric Connections Water Connections Assembly & Fitting Instructions Product Testing Testing for Leaks... - Page 2 Thank you for your recent purchase of an Insignia steam shower. ASSEMBLY AND SIMPLE PLUMBING Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many...
-
Page 3: Electrical Requirements
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! REMEMBER: These showers are designed to be free standing and movable Note for electrician. This product comes with 13 amp plug(s) fitted from their location should you have need to replace anything. AL- with RCD unit. We leave the way you prefer to connect this to your- WAYS USE Flexible braided water inlet pipes at least a metre long self due to continued additions to current regulations. -
Page 4: What's In The Boxes
What’s In The Boxes? Please check with pictures, some of the items have been assem- bled by ourselves in order for ease of recognition as to what they are and can be used as reference in later construction Shower tray Roof section Shower waste (part of fitting kit if purchased) Overhead shower head fitted (loosely) - Page 5 Glass pack Rear glasses x2 and 2 x top and bottom curve supports 2 x curved doors 1 x door handle pack Lengths of glass seal trim 2 x magnet trim 2 x front upright columns 2 x corner columns 2 x door seals Centre control column, grab handle and back...
- Page 6 VERY IMPORTANT Tray Feet Have you got everything? If not please contact your supplying dealer now. Remember NEVER book your tradesman until every- thing has arrived, been checked and is present. No replacement / missing parts can obtained free of charge during or after build only within the timescale permitted (48 hours after delivery) and always BEFORE build.
- Page 7 When you are happy the tray is set up correctly you can now move this out to a better working position. Taking now the left hand (as you look from the front) rear wall, it will have “LEFT” written on it and this will be at the top. Also take the centre column with appliances attached to it and place on the shower tray.
- Page 8 Moving on to the top and bottom curved rails and the two upright Column showing “UP” aluminium columns. Columns fit on each end of the exposed rear panel glasses and will form the front part of the shower support. Take one column (each are marked TOP) and the bottom curved rail, at the bottom of each upright you will see two slots, screw the upright to the curve with screws supplied through slots.
- Page 9 When this stage is complete repeat the same assembly with the second glass and again firmly press into the other channel. Now take the 2 x front columns with grey plastic clips attached. Press one into the opposite end of the glass panel you have just fixed and over the seal.
- Page 10 You now need to fix the two front columns into place. Align the pre drilled holes and screw into place as the picture below shows: Offering up the top rail to slot into clips Screwing top curved rail into place Picture shows top fixing repeat both sides and at the bottom as well Now your assembly is almost complete.
- Page 11 Top door wheels in place note cam adjustment 2 x bottom wheels in runner Now taking the complete roof section make sure the overhead rain shower is tight and offer over the structure to fit inside frame sup- port. When in place screw through pre drilled holes. Place over shower frame Magnets fitted to doors to attract each other For the latest fitting instructions please visit www.insigniarange.co.uk...
- Page 12 Congratulations nearly finished, you are now ready to couple wa- ter hoses! You now need to fit all internal items supplied inside the shower cabin. These are for 9040, 9008, 9012, 9013 models Hand shower riser bar, flexi hose and actual hand shower...
-
Page 13: Electric Connections
Electric Connections. Seal where shown in red on assembly! - Not after At this stage you will need to connect the following. These are all 12V and considered “safe” for DIY connection as each is labelled and low voltage. NEVER CONNECT TO MAINS AT THIS STAGE Overhead light * Led rear panel lights* Ozone (if fitted) * Speaker * fan * Aerial (unfold if fitted) * C.D Telephone (if required most do not bother!) external jacks if required NOTE! If you purchased the... -
Page 14: Water Connections
Shower Water Connections Going to the rear of the shower, you now have hoses coming from the water diverter valve, these are marked as to their location. Connect each to their respective positions. NOTE Check each con- nection has a seal in before tightening fully. Please note overhead shower shows arrow to left, in fact this goes vertical. - Page 15 Connecting the steam generator Checked neoprene seals are in position? Fitted at the bottom of the shower rear panel (NOT APPLICABLE TO 9013 NON STEAM MODELS) you will find the steam generator which will look similar to the picture below. Connect white insu- lated hose to the shower steam pod.
- Page 16 Pressure Requirements from your house supply. with a washing machine or dishwasher, it is highly recommended accessible water valve taps are installed to turn off the shower We recommend a bar pressure between 2 and 3 bar. If you have a when not In use.
- Page 17 1. On/Off Switch TESTING PRODUCT. 2. Radio frequency 3. Volume setting With the shower still not fully positioned as you will require it. 4. Steam Unit operation—Press this button to active the steam Complete the following tests: function. If no water is present the unit will not function for safety reasons.
- Page 18 1. On/Off Switch 2. Light On/Off CONTROL PANEL FOR NON STEAM 9013 MODEL 3. Rear internal Led lights and tray lights if fitted 4. Fan Operation 5. Radio Operation 6. Volume Up 7. Volume Down 8. Reset The radio 9. Tune 10.
-
Page 19: Testing For Leaks
Dry area thoroughly and reseal on the OUTSIDE. Again remember 9008 / 9008S / 9012 / 9013 9040 where you see water may not be exactly where the leak is, it could have run round to a low point. -
Page 20: Safety
28 days from the day this product was delivered to you. For Always be aware of the steam outlet pod position. Never use in cost and enabling kindly contact Insignia on 0844 800 3069. close proximity to the person using it. - Page 21 And for the smaller items Please note you are not covered for consequential or incidental just contact Insignia on 0844 800 3069 for on the spot advice and damage however caused relating to any product part failure. This help.
-
Page 22: Spare Part
Returned Goods FAQs What water pressure is required to operate you showers correctly and what Your attention is drawn to the terms and conditions. Any returned about your baths and basin taps? Item must be accompanied by a return form. Using our customer 2.5 bar is what we consider optimum pressure for all. - Page 23 After build check 100% for leaks and cure at the time. When high failure rate, we could go on. With Insignia we guarantee only the latest cured he should never have needed to come back. Sorry for bad news! technology is used, even if a customer has ordered from our advertising some- thing we have deleted, we upgrade free of charge before delivery.
- Page 24 I am a big guy, will the shower trays or baths you sell support my weight. cleaning, use a mild non abrasive cleaner and avoid No problem unless you are massive in which case you would probably not fit in detergents, disinfectants or cleaning products that come in an aerosol can.
- Page 25 delivery. If out of warranty you will be contacted and advised of cost first. Pay- Only a matter of minutes, no need to take taps off the bath or shower and cost ment can be made instantly over the telephone to avoid delay. is minimal.
- Page 26 Whatever is missing has been sucked into the system, if small it would get fired out of the jets but if a large section it will jam the pump. This is what has hap- pened to you. You now need a tradesman to remove the cover of the pump and the remove the offending item from the impeller.
