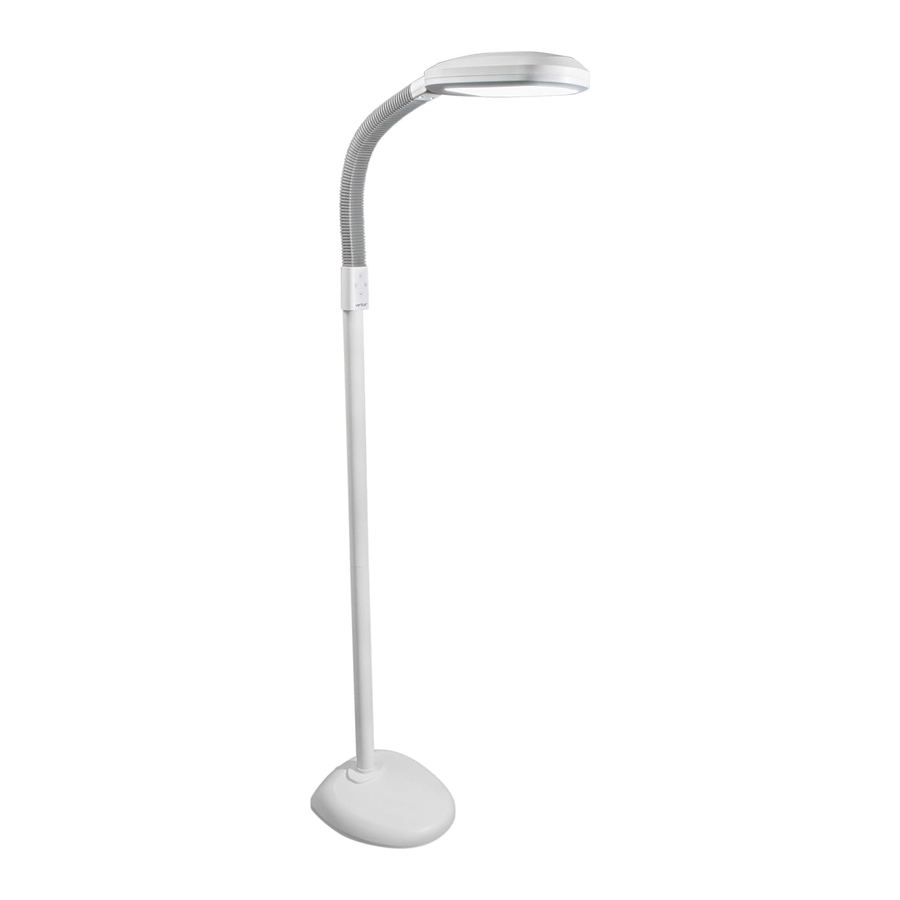

Verilux SmartLight VF09 - LED Floor Lamp Manual

Components

What's Included
Remove all packaging material. Please refer to the Assembly Instructions to assemble the lamp. Check the carton for these items:

LED lamp
User manual
Power adapter
Allen wrench
Screw (1) (may be installed in base)

Assembly Instructions

Find the wire on gooseneck (A) and insert it into the pole (B), then twist the pole (B) clockwise to connect.
Find the pole (C), and insert the wire through it, then connect the two poles together twisting (C) clockwise.
Connect the two wires together and insert the pole into the base (D). Tighten the screw using the supplied allen wrench underneath the base (E) after you make sure the touch panel is facing the front.

Operation

Power Supply: Plug in the AC adapter into an electrical outlet. Plug the connector of the AC adapter into the LED SmartLight Floor Lamp. (Only use with the supplied AC adapter to avoid damage and fire.)

On/Off: To turn on the light, gently touch the on/off touch sensitive control button. (When you turn off the light using the on/off button, it will return to the last setting of brightness and temperature when you turn it on again.)

Mode: There are three color temperatures. To change the temperature simply touch the mode button to change from 5000K (daylight) to 4000K (natural) and then to 3000K (warm).

Up/Down: There are five illuminance levels of light intensity on the lamp at each color temperature. Use the Up/Down touch buttons to adjust the illuminance accordingly.

Unplug the power cord if the lamp will not be used for long periods of time.

Technical Specifictions

LED SmartLight Floor Lamp
Adapter input voltage: 80-240 VAC, 50/60Hz
Adapter output voltage: DC19.2V, 0.65A
Power consumption: 14 watts
Operating temperature: -20°C to 40°C

Color temperatures:
Warm:	2700K – 3000K
General Ambient:	3500K – 4500K
Reading/Tasking:	4745K – 5311K

CRI: >90
Luminous flux: 950 Lumens maximum
Warranty: 1 Year

Troubleshooting

Before Requesting Service On Your Verilux Lamp, Please:

Make sure the power cord is inserted fully and securely.
Make sure there is power to the wall outlet or try another outlet.

Do not operate this lamp if the lamp or the power supply has been damaged in any way. Use only the power cord supplied with your lamp.

Problem	Check	Solution
Light won't come on	Outlet end of power cord	Be sure it is properly plugged into a working outlet.
	Input jack of the power plug	Be sure it is properly seated in the receptacle on the base.
	Wire in pole and base during assembly	Be sure wires were properly connected during assembly.

Important Safeguards

To avoid electrocution, shock or personal injury, do not operate this lamp near water, or when wet or damp. Unplug lamp before cleaning and ensure lamp is dry before restoring power.

Use only a class 2 or limited power supply provided with the lamp with 120 VAC input.
For indoor household use only.

This product may cause interference with radios, cordless telephones or devices that use a wireless remote control, such as televisions. If interference occurs, move the product away from the device, plug the product or device into a different outlet or move the lamp out of the line of sight of the remote control receiver.
Do not operate this lamp if it or the power supply has been damaged in any way.
Do not dismantle. There are no user-serviceable parts in this lamp.

SAVE THESE INSTRUCTIONS

One-Year Limited Warranty

Many questions may be answered by visiting www.verilux.com, or you may call our Customer Service Department at 800-786-6850 during normal business hours.

This limited warranty is provided by: Verilux, Inc., 340 Mad River Park, Waitsfield, VT 05673

To obtain a Return Authorization, please contact the Verilux Customer Service Department at 800-786-6850.

If, during the first year of ownership, this product fails to operate properly, it should be returned as specified at www.verilux.com/warrantyreplacement or as instructed by a Verilux customer service representative at 800-786-6850.

Please visit our web site at: www.verilux.com or call 1-800-786-6850

Representatives are available Monday — Friday 9:00a.m to 5:00p.m. EST

verilux
340 Mad River Park, Waitsfield, VT 05673
