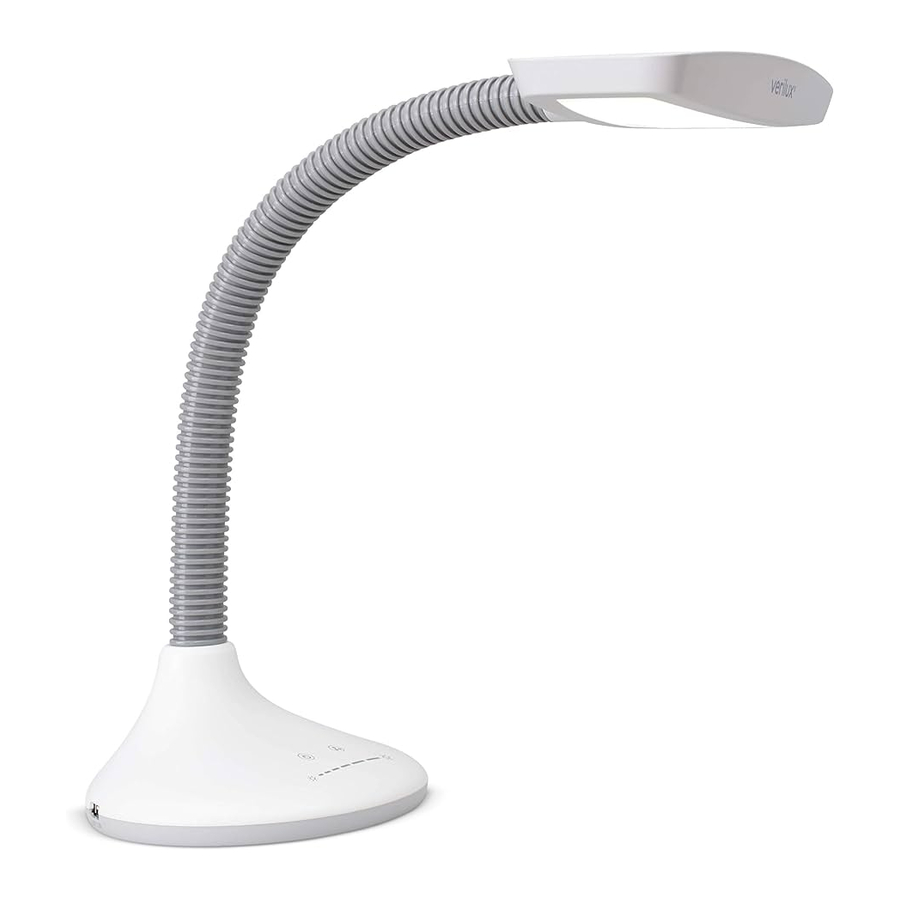

Verilux SmartLight VD46 - LED Desk & Table Lamp Manual

Components

What's Included
Remove all packaging material. Your lamp is fully assembled and ready for use. Check the carton for these items:

LED lamp
User manual
Power adapter

Features

Long-life, energy-efficient LEDs greatly reduce operating costs over the life of the lamp.
On base 1.0 amp USB port keeps your devices – and you – connected.
Simple and easy operation with the touch controls. On/Off, eight light intensity levels on a sliding light dimmer and three color temperatures, or modes, can all be adjusted with easy to read touch "buttons" or controls.
Dimmable light intensity with a range from very dim to very bright in eight different levels with a sliding light dimmer touch control. At the very lowest light level, the LED SmartLight Desk Lamp can be used as a night light.
Light intensity stays the same when different color temperatures are selected with the color temperature touch control.

Operation

Power Supply: Plug in the AC adapter into an electrical outlet. Plug the connector of the AC adapter into the LED SmartLight Desk Lamp. (Only use with the supplied AC adapter to avoid damage and fire.)

On/Off: To turn on the light, gently touch the on/off touch sensitive control button. (When you turn off the light using the on/off button, it will return to the last setting of brightness and temperature when you turn it on again.)

Mode: There are three color temperatures. To change the temperature simply touch the mode button to change from 5000K (daylight) to 4000K (natural) and then to 3000K (warm).

Sliding Light Dimmer: There are eight illuminance levels of light intensity on the lamp at each color temperature. Use the slider by touching the sliding light dimmer with your fingertip to change the illuminance.

Unplug the power cord if the lamp will not be used for long periods of time.

Technical Specifictions

LED SmartLight Desk Lamp
Adapter input voltage: 80-240 VAC, 50/60Hz
Adapter output voltage: DC5V, 3A
USB output: DC5V, 1.0A
Power consumption: 18 watts
Operating temperature: -20°C to 40°C

Color temperatures:
Warm:	2700K – 3000K
General Ambient:	3500K – 4500K
Reading/Tasking:	4745K – 5311K

CRI: >90
Luminous flux: 600 Lumens maximum
Warranty: 1 Year

Troubleshooting

Before Requesting Service On Your Verilux Lamp, Please:

Make sure the power cord is inserted fully and securely.
Make sure there is power to the wall outlet or try another outlet.

Do not operate this lamp if the lamp or the power supply has been damaged in any way. Use only the power cord supplied with your lamp.

Problem	Check	Solution
Light won't come on	Outlet end of power cord	Be sure it is properly plugged into a working outlet.
Light won't come on	Input jack of the power plug	Be sure it is properly seated in the receptacle on the base.

Important Safeguards

To avoid electrocution, shock or personal injury, do not operate this lamp near water, or when wet or damp. Unplug lamp before cleaning and ensure lamp is dry before restoring power.

Use only a class 2 or limited power supply provided with the lamp with 120 VAC input.
For indoor household use only.

This product may cause interference with radios, cordless telephones or devices that use a wireless remote control, such as televisions. If interference occurs, move the product away from the device, plug the product or device into a different outlet or move the lamp out of the line of sight of the remote control receiver.
Do not operate this lamp if it or the power supply has been damaged in any way.
Do not dismantle. There are no user-serviceable parts in this lamp.

SAVE THESE INSTRUCTIONS

One-Year Limited Warranty

Many questions may be answered by visiting www.verilux.com, or you may call our Customer Service Department at 800-786-6850 during normal business hours.

This limited warranty is provided by: Verilux, Inc., 340 Mad River Park, Waitsfield, VT 05673

To obtain a Return Authorization, please contact the Verilux Customer Service Department at 800-786-6850.

If, during the first year of ownership, this product fails to operate properly, it should be returned as specified at www.verilux.com/warranty or as instructed by a Verilux customer service representative at 800-786-6850.

Please visit our web site at: www.verilux.com or call 1-800-786-6850

Representatives are available Monday — Friday 9:00a.m to 5:00p.m. EST
