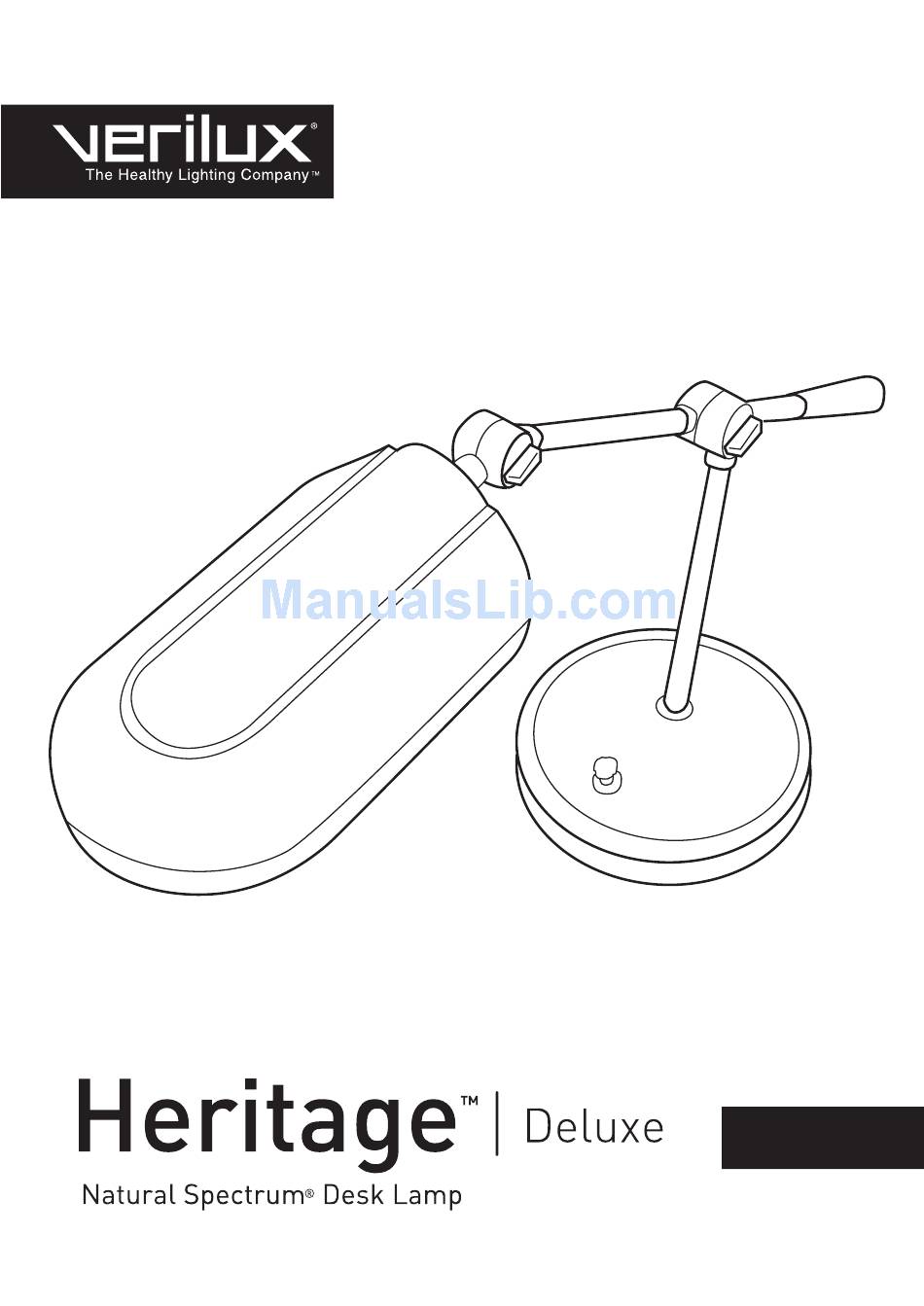

- Page 1 VD03...
- Page 2 Many other healthy lighting products are available through our catalog and online. To request a copy of our catalog, call our toll-free number 1-888-544-4865. You may also visit us on the web at www.Verilux.com to learn more about Verilux products. Have a Bright Day!
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing the Heritage Desk Lamp. Please read the following safety information before using. To reduce the risk of fi re, electrical shock, or injury to persons: • Do NOT dismantle. • Do NOT alter power cord. •... -
Page 4: Getting Started
Main Parts & Controls A. Lamp Head B. Switch C. Lamp Head Swivel Knob D. Lamp Arm E. Center Swivel Knob F. Counter Weight Arm Close-up of Lamp Head GETTING STARTED G. Vertical Shaft H. Lamp Base I. Power Cord J. - Page 5 ASSEMBLY INSTRUCTIONS Please Read Operating Instructions Carefully Before Using the Heritage Desk Lamp: 1. Set lamp base on the desk and insert the counter weight arm (F) onto the center swivel (E) and screw clockwise to tighten. (Fig.1) 2. To lift lamp head, loosen swivel knob (C), adjust head to desired angle.
- Page 6 ASSEMBLY INSTRUCTIONS cont. 4. Attach the ballast to the power cord. Use care to align the 4-pin plug properly. DO NOT FORCE – the 4-pin plug was designed to fi t in only one orientation. (Fig. 3) 5. Plug ballast into a standard 120V 50/60Hz outlet.
- Page 7 ADJUSTING THE HERITAGE DESK LAMP The Heritage™ Desk Lamp adjusts several ways: 1. To adjust lamp height – hold lamp arm with one hand, loosen center swivel knob (E). Raise or lower lamp arm (D) to desired height. Tighten knob. (Fig. 5) 2.
- Page 8 BULB REPLACEMENT INSTRUCTIONS Removal 1. Unplug lamp from power source. 2. To access the bulb, remove Optix glare control fi lter by depressing the thumb tab and lifting it out. 3. Firmly hold bulb base (B) and pull bulb (C) from the socket (A) in an outward motion.
-
Page 9: Troubleshooting
The LED indicator light on the ballast allows you to troubleshoot any problems with the lamp’s function. When replacing your Verilux in the power cord properly. The 4-pin plug was designed to fi t in only one orientation (See Assembly Instructions on page 5). -
Page 10: Care And Cleaning
CARE & CLEANING Your desk lamp is made from high quality materials that will last for many years with minimum care. You may want to periodically clean the lamp, using a mild non-abrasive cleaner and soft cloth. When cleaning, make sure you have turned off and unplugged the unit, and allowed suffi... -
Page 11: Warranty
During the limited warranty period, Verilux, Inc. will, at its option, repair or replace defective parts of this product, at no charge to the customer, subject to the following limitations. - Page 12 Please visit our web site at: www.Verilux.com 340 Mad River Park, Waitsfi eld, VT 05673 1-888-544-4865 Printed in China for Verilux, Inc. © Copyright 2007 Verilux, Inc. All rights reserved. VD09-MAN-Rev3...
