Roland CY-13R, CY-12C - V-CYMBAL RIDE, CRASH Manual

Getting Started

What's in the Package

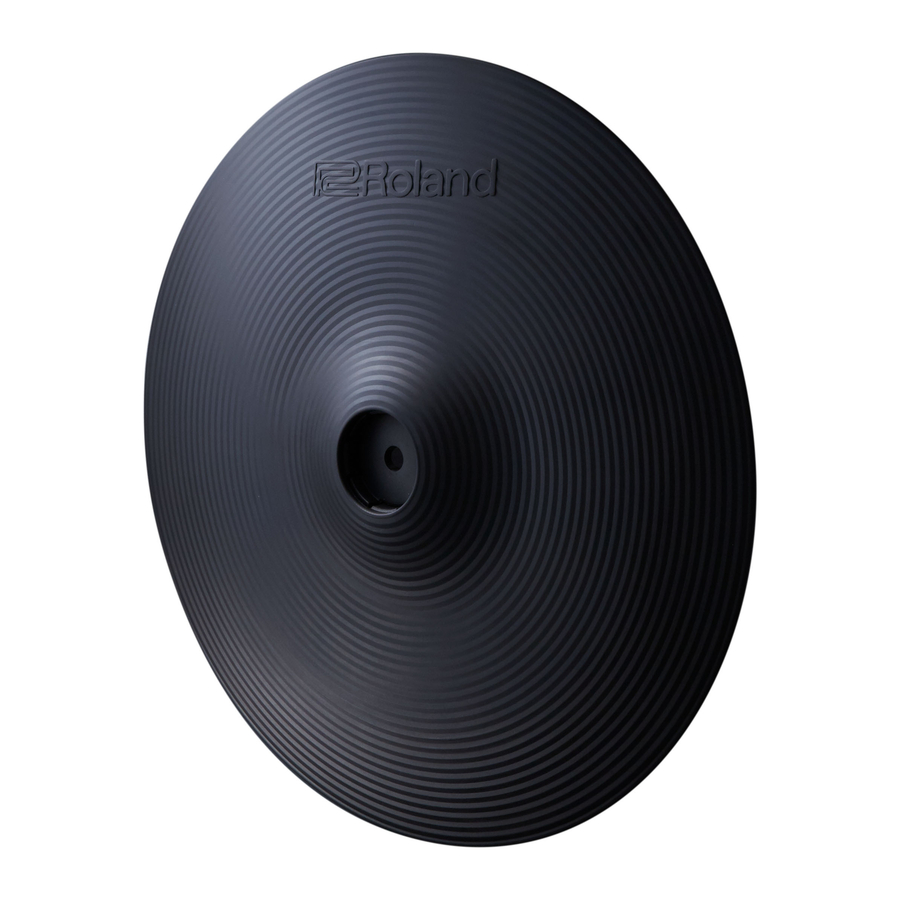

CY-13R (Ride)

• CY-13R Cymbal pad
• Wing nut

• Felt washer

• Stopper

• Connection cable (stereo) x 2
• Cable tie

• Owner's manual (this document)

CY-12C (Crash)

• CY-12C Cymbal pad
• Wing nut

• Felt washer

• Stopper

• Connection cable (stereo)
• Cable tie

• Owner's manual (this document)

Definitions & Names of Parts

CY-13R

Diameter: 13 inches

* The CY-13R is not capable of detecting the striking position. If you're using a Roland percussion sound module that is capable of detecting the striking position, you'll need to set the ride's Position Ctrl to OFF.
For details on how to make the setting, refer to the owner's manual that came with your percussion sound module.

CY-12C

Diameter: 12 inches

* The CY-12C has no BOW/BELL OUTPUT jack.

Main Specifications

* In the interest of product improvement, the specifications and/ or appearance of this unit are subject to change without prior notice.

Making the Settings

Mounting on the Stand

1. Use a commercially available drum key to tighten the stopper bolt.
   Attach the stopper so that the bolt is on the righthand side, from the performer's perspective.
   Tighten the bolt with a commercially available drum key
   The stopper keeps the V-Cymbal from turning, preventing the tangling of cables on the stand.

2. Attach the V-Cymbal, while positioning it so the Roland logo is located on the side opposite the performer.

3. Tighten the included felt washer and the wing nut to obtain the desired movement.
   * Use the included felt washer and wing nut.
   * Double sounding may occur if the wing nut is loose.
4. Secure the cables in place with the cable tie, and leave some slack in the cables to ensure they are not pulled by the movement of the V-Cymbal pads.

   1. Be sure to make this small plastic hook visible from you.
      Wind a cable tie around a cable.
   2. Wind a cable tie around the pipe and tighten it in order to not to slip.
      Insert the small plastic hook to a hole to secure the cable to the cymbal arm.

* Take care to ensure that the cables do not touch the V-Cymbal pads and/ or the stand. A cable touching a V-Cymbal pad or a stand may cause double sounding or other incorrect operation.

Connecting to a Percussion Sound Module

* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
* Use the supplied connection cables (stereo) to make the connections. If monaural cables are used, edge shots, bell shots, and choke play cannot be supported.

Connect the L-shaped plug of the included cable to the CY-13R/12C.
The CY-12C has no BELL OUTPUT jack. Make the connection to the BOW/EDGE OUTPUT jack.

*1 Set the Crash 2 Usage parameter to "RIDE BELL."

About three-way triggering (CY-13R only)
The CY-13R can take advantage of your percussion sound module's three-way triggering functionality to allow you to play bow, bell, and edge separately.
Connect the two outputs BOW/BELL and BOW/ EDGE to the percussion sound module at the same time.
For details on the connection method and settings, refer to the owner's manual for your percussion sound module.
* If you won't be using the three-way triggering functionality, connect the BOW/EDGE OUTPUT jack (not both) to your percussion sound module.
* Although you'll be able to play using the bow and bell sections when connected to the BELL OUTPUT jack, you won't be able to use the choking technique.

Playing Methods

Bow Shot

This is the most common playing method, playing the middle area of the cymbal.
It corresponds to the sound of the "head-side" of the connected trigger input.

Edge Shot

This playing method involves striking the edge with the shoulder of the stick.
When played as shown in the figure, the "rim-side" sound of the connected input is triggered.

* On the CY-13R, edge shots are possible when the connection is made to the BOW/EDGE OUTPUT jack.

Bell Shot

CY-13R Only
This playing method involves striking the bell.
On the CY-13R, when played as shown in the figure, the "rim-side" sound of the connected input is triggered.
Strike the bell somewhat strongly with the shoulder of the stick.

* Bell shots are possible when the connection is made to the CY13R's BELL output.
* On the CY-12C, bell shots are not supported.

Choke Play

Choking (pinching) the cymbal's edge with the hand immediately after hitting the cymbal makes the sound stop.
Choke the location of the edge sensor shown in the figure. If you choke an area where there is no sensor, the sound does not stop.

* When ONLY using the BELL output of the CY-13R, the choke function will not work.

Trigger Parameter Settings for the Percussion Sound Module

Recommended Settings for the Trigger Parameters
These are the recommended trigger parameter settings when using the V-Cymbal with various models of sound module.
You may need to adjust the trigger parameters depending on how you've attached the V-Cymbal and the location at which you've installed it.
* In order to use three-way triggering with the CY-13R, you must make settings on your percussion sound module to use its three-way triggering functionality. For details on the procedure, refer to the owner's manual for your percussion sound module.

USING THE UNIT SAFELY

About WARNING and CAUTION Notices
	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse e ects caused with respect to the home and all its furnishings, as well to domestic animals or pets.
About the Symbols
	The symbol alerts the user to important instructions or warnings. The speci c meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The symbol alerts the user to items that must never be carried out (are forbidden). The speci c thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The symbol alerts the user to things that must be carried out. The speci c thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

•
  Do not open or perform any internal modifications on the unit.
•
  Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.
• Never install the unit in any of the following locations.
  • Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
  • Damp (e.g., baths, washrooms, on wet floors); or are

  • Exposed to steam or smoke; or are
  • Subject to salt exposure; or are
  • Humid; or are
  • Exposed to rain; or are

  • Dusty or sandy; or are
  • Subject to high levels of vibration and shakiness.
• This unit should be used only with a stand (MDS series) that is recommended by Roland.
•
  When using the unit with a stand (MDS series) recommended by Roland, the stand (MDS series) must be carefully placed so it is level and sure to remain stable. If not using a stand (MDS series), you still need to make sure that any location you choose for placing the unit provides a level surface that will properly support the unit, and keep it from wobbling.
• Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.
•
  Protect the unit from strong impact.
  (Do not drop it!)

• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.
•
  Never climb on top of, nor place heavy objects on the unit.
•
  Should you remove the stopper bolt, keep them in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

IMPORTANT NOTES

Placement

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not allow rubber, vinyl, or similar materials to remain on this unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the output jacks. Rough handling can lead to malfunctions.
• When connecting/disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you.
• This instrument is designed to minimize the extraneous sounds produced when it's played. However, since sound vibrations can be transmitted through floors and walls to a greater degree than expected, take care not to allow these sounds to become a nuisance to neighbors, especially when using headphones.
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• The rubber portion of the striking surface is treated with a preservative to maintain its performance. With the passage of time, this preservative may appear on the surface as a white stain, or reveal how the pads were struck during product testing. This does not affect the performance or functionality of the product, and you may continue using it with confidence.
• Continuous playing may cause dis-coloration of the pad, but this will not affect the Pad's function.
