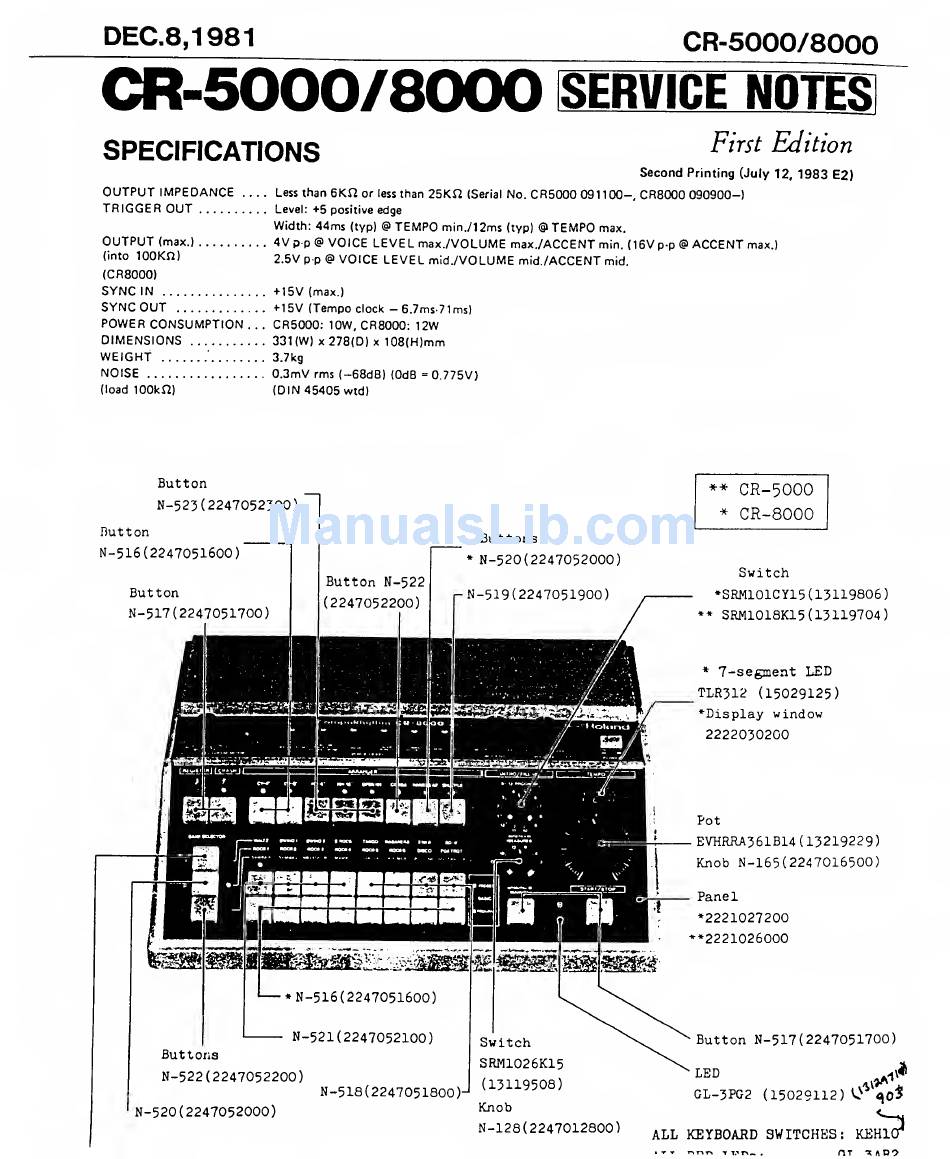

Roland CR-5000 Service Notes

DEC.8,1981
CR-5000/8000
CR-5000/8000
service
notes
SPECIFICATIONS
First
Edition
Second
Printing (July 12, 1983
E2)
OUTPUT IMPEDANCE
Less than 6Kfi
or
less
than 25Kft
(Serial
No.
CR5000
091100-, CR8000 090900-)
TRIGGER OUT
Level:
+5
positive
edge
Width:
44ms
(typ)
@ TEMPO
min./12ms
(typ)
@
TEMPO
max.
OUTPUT
(max.)
4Vpp @
VOICE LEVEL max./VOLUME max./ACCENT
min.
(16V
p-p
<g>
ACCENT
max.)
(into
100KS1)
2.5Vp-p
@
VOICE LEVEL
mid./VOLUME mid./ACCENT
mid.
(CR8000)
SYNC
IN
+15V(max.)
SYNC OUT
+15V (Tempo
clock
-
6.7ms-71ms)
POWER CONSUMPTION
. .
.
CR5000:
10W, CR8000:
12W
DIMENSIONS
331 (W) x 278(D)
x
108(H)mm
WEIGHT
'
3.7kg
NOISE 0.3mV
rms (-68dB) (OdB
=
0.775V)
(load
lOOkH) (DIN 45405
wtd)
Button
N-523(2247052300)
Button
N-516( 2247051600)
Button
N-517(2247051700)
Buttons
*
N-520(2247052000)
Switch
SRM1026K15
(13119508)
Knob
**
CR-5000
* CR-8000
Switch
*SRM101CY15(
13H9806)
l
*
SRM1018K15( 13119704)
* 7-segment LED
TLR312 (15029125)
Display
window
2222030200
Pot
EVHRRA361B14
(
13219229
)
Knob N-165(2247016500)
Panel
•2221027200
2221026000
Button N-517 (2247051700)
LED
***n
GL-3PG2 (15029112)
^0>
N-128(2247012800)
ALL KEYBOARD SWITCHES: KEHlCf
r
nnn
Ti.in-
.
m
*x
huo
