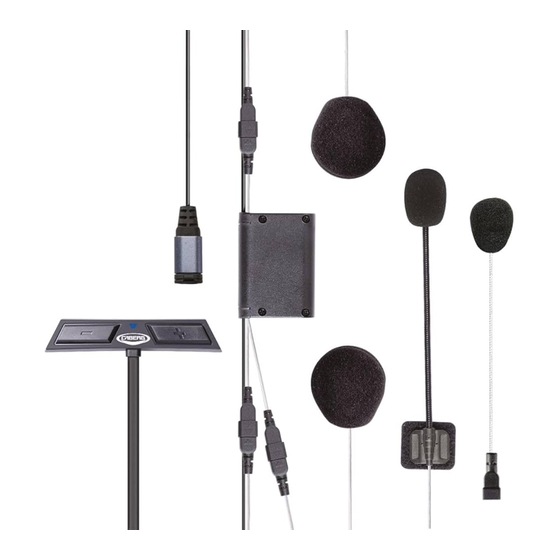

Caberg A9235 PRO SPEAK EVO Assembly

ASSEMBL Y

A9235 PRO SPEAK EVO

FOR RIVIERA V4 X

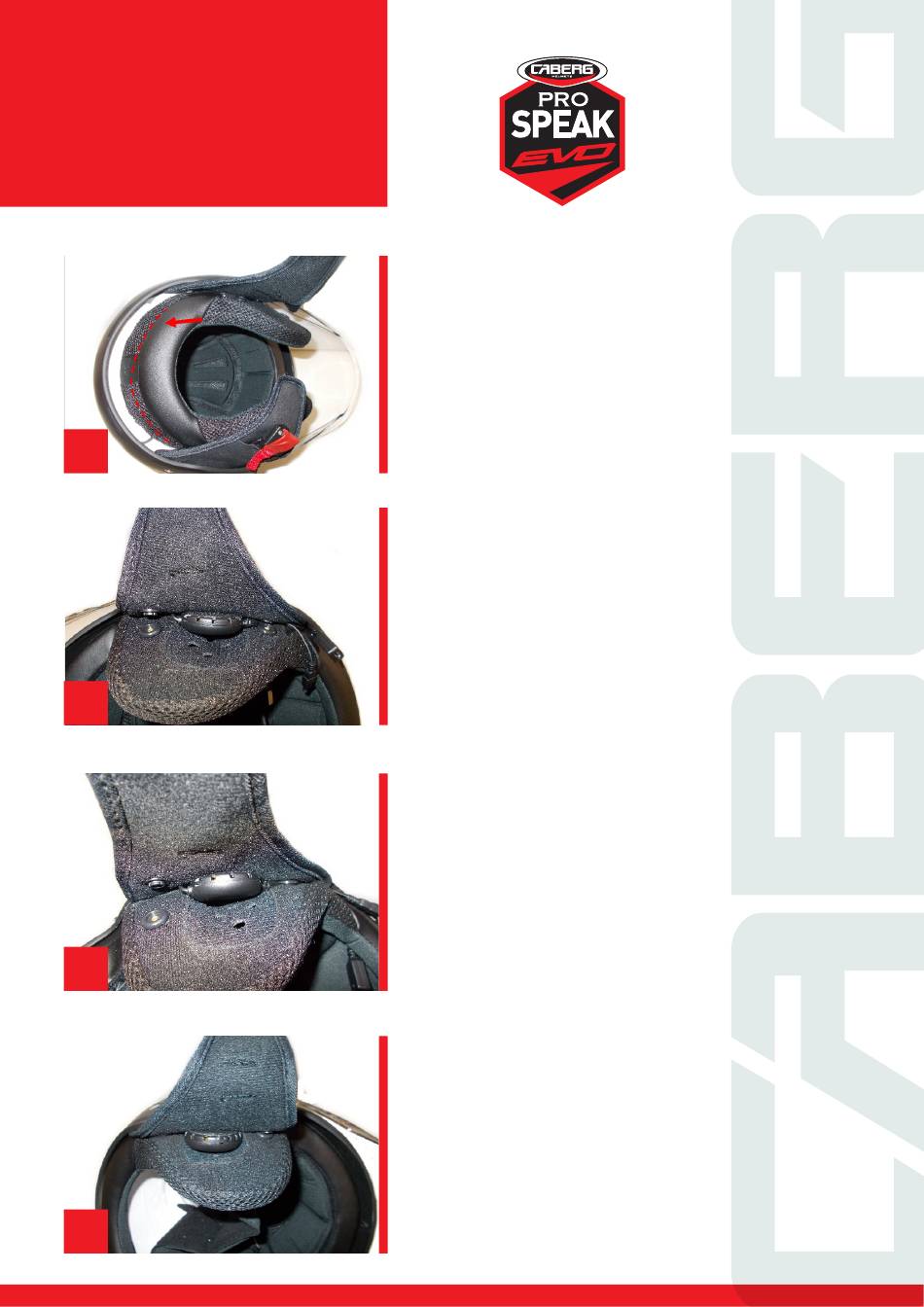

Remove both cheek pads and place the

cables under the rear cushion.

Place the right speaker (R) behind the

cheek pad at the holes using the velcro

on the back of the speaker.

Repeat the operations for the right

speaker (R) to position the left (L).

Snap in the cheek pad's buttons on both

sides paying attention to not ''pinch'' the

cables''.

Table of Contents

Need help?

Do you have a question about the A9235 PRO SPEAK EVO and is the answer not in the manual?

Page 1 ASSEMBL Y A9235 PRO SPEAK EVO FOR RIVIERA V4 X Remove both cheek pads and place the cables under the rear cushion. Place the right speaker (R) behind the cheek pad at the holes using the velcro on the back of the speaker.
Page 2 ASSEMBL Y A9235 PRO SPEAK EVO FOR RIVIERA V4 X Attach the microphone on the comfort padding with the Velcro on the back of the microphone base. Adjust the microphone’s position by deforming its boom. WARNING check that the triangle on the microphone is facing the mouth.
Page 3 ASSEMBL Y A9235 PRO SPEAK EVO FOR RIVIERA V4 X Fit the keypad on the left side (helmet on), approximately 10 mm from the lower edge of the shell using the provided adhesive. Make sure that there is no interference with the chin guard and full contact surface between the adhesive keypad and the outer shell.
