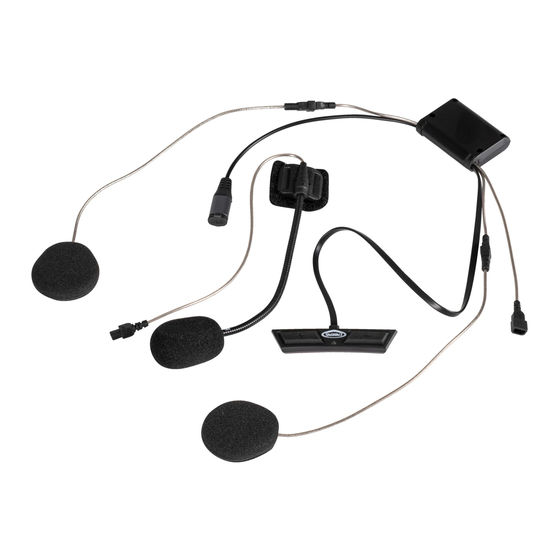

Caberg PRO SPEAK EVO Assembly
Hide thumbs
Also See for PRO SPEAK EVO:
- Instructions manual (49 pages) ,
- Assembly (3 pages) ,
- Assembly (3 pages)
Advertisement
Quick Links
ASSEMBL Y
1.
2.
3.
4.

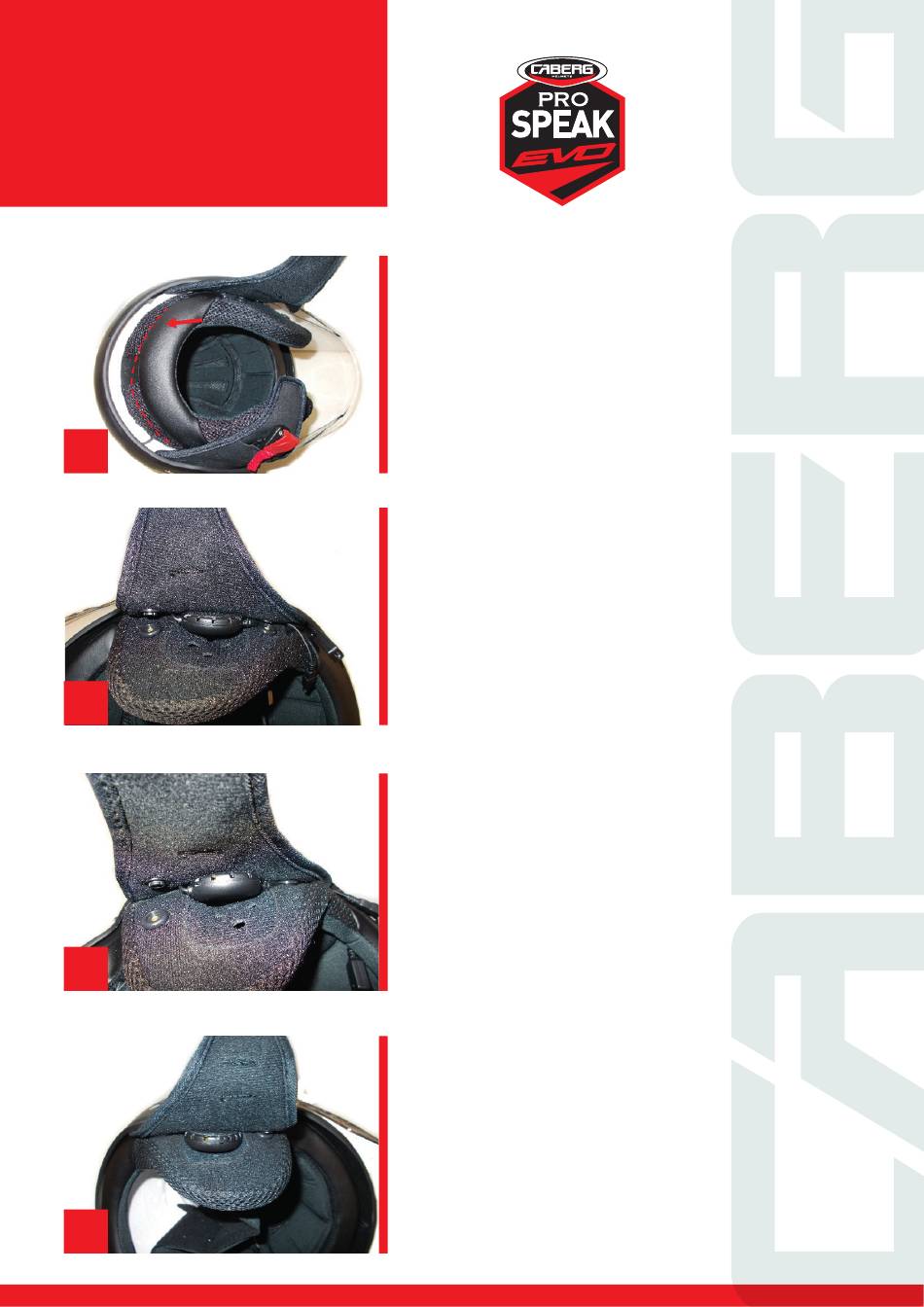

Remove both cheek pads and place the
cables under the rear cushion.
Place the right speaker (R) behind the
cheek pad at the holes using the velcro
on the back of the speaker.
Repeat the operations for the right
speaker (R) to position the left (L).
Snap in the cheek pad's buttons on both
sides paying attention to not ''pinch'' the
cables''.
Advertisement
Related Manuals for Caberg PRO SPEAK EVO
Summary of Contents for Caberg PRO SPEAK EVO
- Page 1 ASSEMBL Y Remove both cheek pads and place the cables under the rear cushion. Place the right speaker (R) behind the cheek pad at the holes using the velcro on the back of the speaker. Repeat the operations for the right speaker (R) to position the left (L).
- Page 2 ASSEMBL Y Attach the microphone on the comfort padding with the Velcro on the back of the microphone base. Adjust the microphone’s position by deforming its boom. WARNING check that the triangle on the microphone is facing the mouth. Place the BT controller in the designated slot on the back of the inner shell.
- Page 3 ASSEMBL Y Fit the keypad on the left side (helmet on), approximately 10 mm from the lower edge of the shell using the provided adhesive. Make sure that there is no interference with the chin guard and full contact surface between the adhesive keypad and the outer shell.
