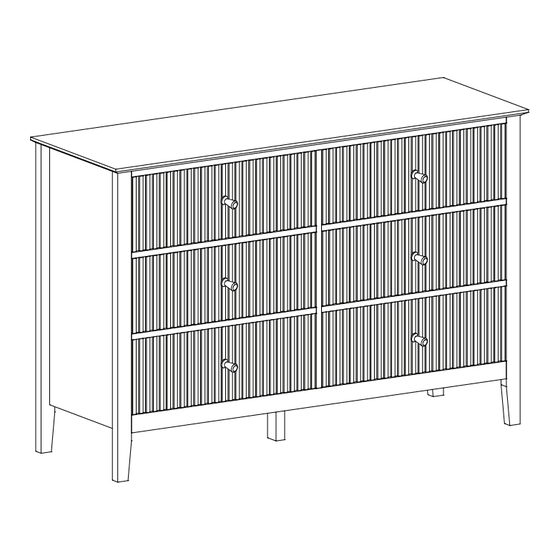

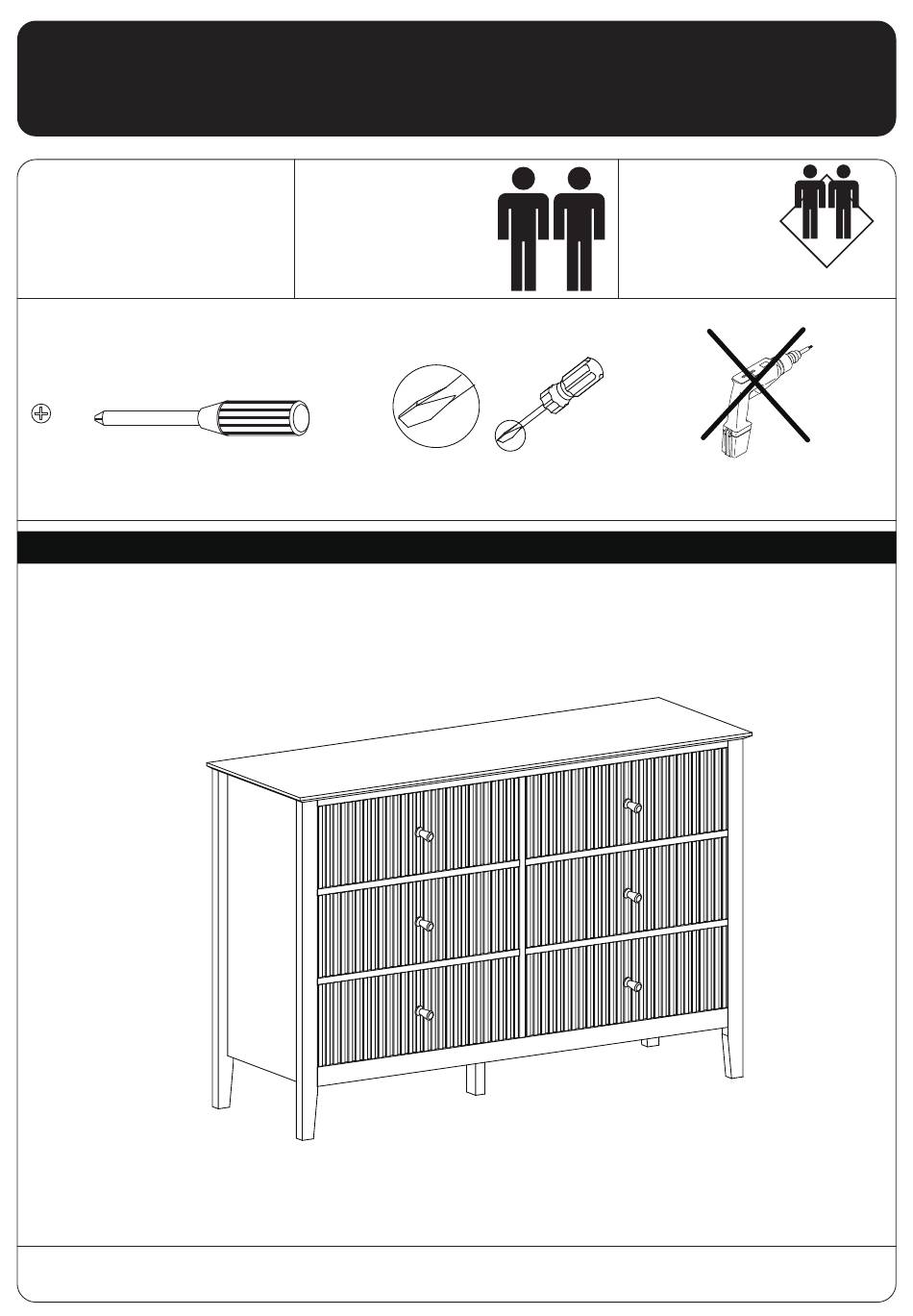

- Page 1 Zara Fluted 6 Drawer Chest FLOOR AREA 90min 2M x 2M APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE REQUIRED ASSEMBLY TOOLS PHILLIPS SCREWDRIVER Flat Head screwdriver DO NOT USE POWER DRILL 1 / 21...
- Page 2 Zara Fluted 6 Drawer Chest Important Please read these instructions carefully before use and keep for future reference. • This product is intended for domestic use only and is not designed for commercial use. • Do not assemble/use this item if any components are missing or damaged.
- Page 3 Zara Fluted 6 Drawer Chest Assembly Tips For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assemble your product safely. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 Zara Fluted 6 Drawer Chest Tips before you start: QUICKFIT Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten. CAM LOCK When fitting cam lock, ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the centre of the cam lock when the two panels are joined.
- Page 5 Zara Fluted 6 Drawer Chest 5 / 21...
-
Page 6: Parts List
Zara Fluted 6 Drawer Chest PARTS LIST 2PCS 4PCS 13 1PC 6PCS 6PCS 6PCS 17 6PCS 2PCS 6PCS 6PCS 6 / 21... -
Page 7: Hardware List
Zara Fluted 6 Drawer Chest HARDWARE LIST Ax67 Bx67 Cx20 Dx48 Ex36 Qx12 Rx12 7 / 21... - Page 8 Zara Fluted 6 Drawer Chest STEP 1 26 x A STEP 2 STEP 2 6 x B 4 x C 8 / 21...
- Page 9 Zara Fluted 6 Drawer Chest STEP 3 SAFETY RELEASE TAB STEP 2 STEP 4 6 x D 3 x Q 9 / 21...
- Page 10 Basic Kitchen Cart Zara Fluted 6 Drawer Chest STEP 5 6 x B 4 x C STEP 2 STEP 6 6 x D 3 x Q 10 / 21...
- Page 11 Zara Fluted 6 Drawer Chest STEP 7 12 x D 6 x Q STEP 2 STEP 8 4 x A 11 / 21...
- Page 12 Zara Fluted 6 Drawer Chest STEP 9 1 x A 1 x B STEP 2 STEP 10 4 x B 2 x H 12 / 21...
- Page 13 Zara Fluted 6 Drawer Chest STEP 11 7 x B 3 x C 4 x E STEP 2 STEP 12 7 x B 3 x C 13 / 21...
- Page 14 Zara Fluted 6 Drawer Chest STEP 13 2 x I 2 x J 2 x K STEP 2 STEP 14 6 x A 14 / 21...
- Page 15 Zara Fluted 6 Drawer Chest STEP 15 3 x S STEP 2 STEP 16 6 x B 6 x C 15 / 21...
- Page 16 Zara Fluted 6 Drawer Chest STEP 17 24 x D 12 x R STEP 2 STEP 18 30 x A 30 x B 16 / 21...
- Page 17 Zara Fluted 6 Drawer Chest STEP 19 30 x E STEP 2 STEP 20 6 x F 6 x G 17 / 21...
- Page 18 Zara Fluted 6 Drawer Chest STEP 21 2 x J 2 x M 2 x N 8 x O 8 x P STEP 2 STEP 22 2 x E 2 x J 2 x L NOTE: Refer to next page for drawer installation guidelines...
-
Page 19: Drawer Right
Zara Fluted 6 Drawer Chest Drawer Installation Guide Before you insert the drawers into the frame, please ensure that the ball bearing sliders (on the assembled unit) have been placed to the front of the main unit. If the bearings are in the middle of the slider it will be difficult to install the drawers correctly. - Page 20 Zara Fluted 6 Drawer Chest NOTE: 20 / 21...
- Page 21 Zara Fluted 6 Drawer Chest Wall Mounting & Fixing Guide NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer.
