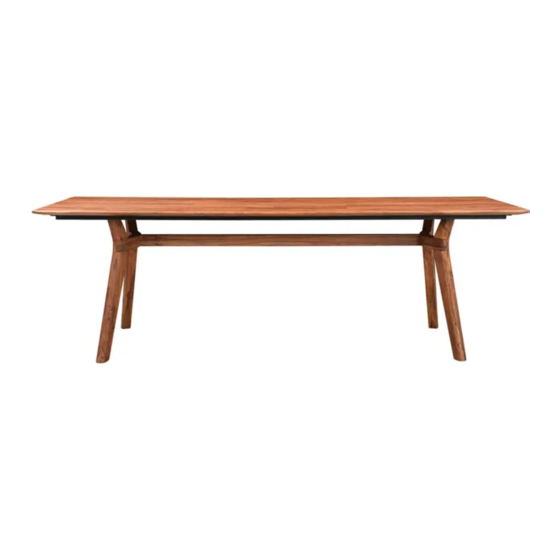

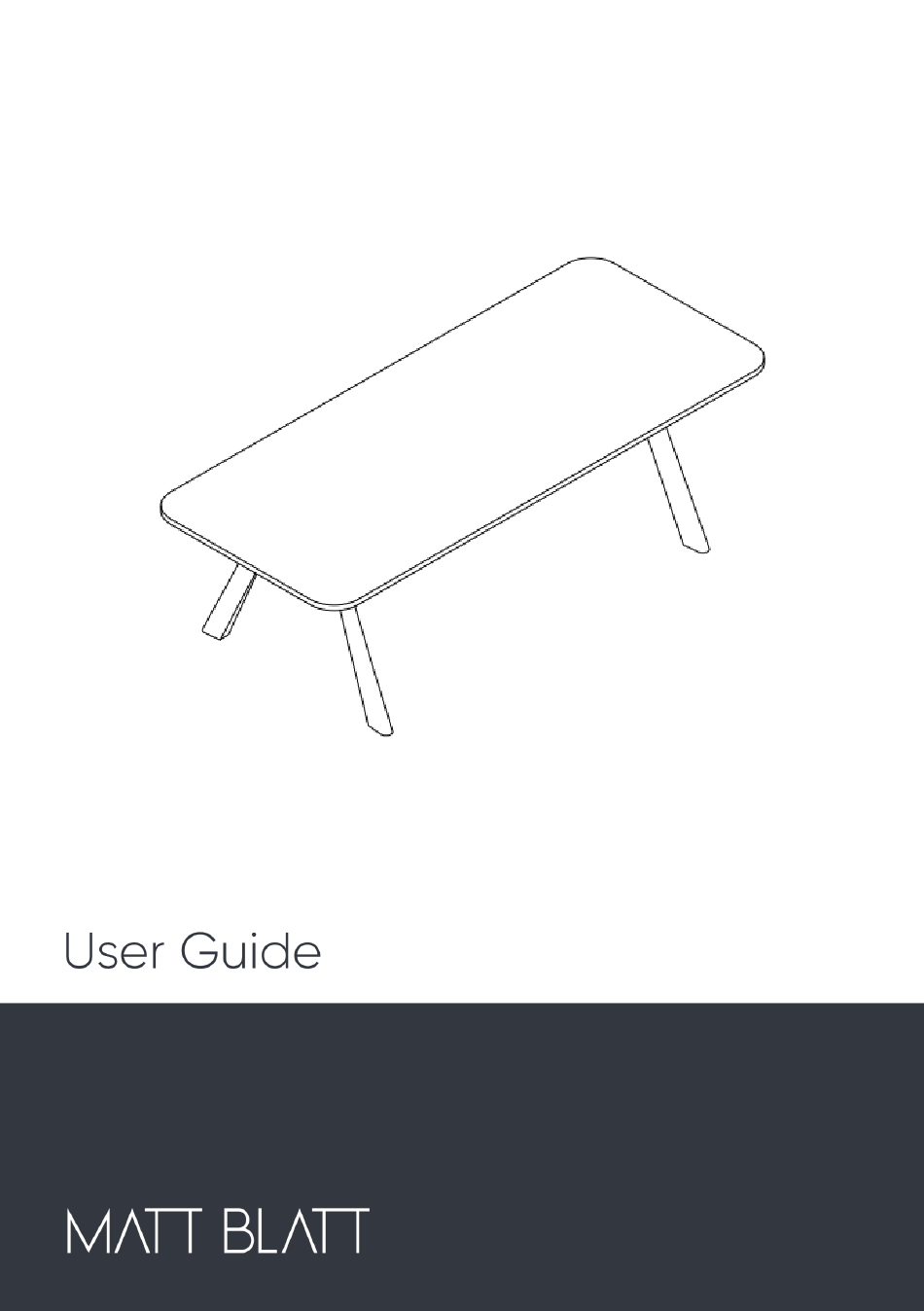

- Page 1 BILLIE DINING TABLE LARGE MBBILLIDTLA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Care Information: • Periodically check and re-tighten any fasteners. Dust weekly using a soft cloth. • Do not use harsh abrasives, chemicals or polishes containing silicone. • Avoid direct sunlight as this will cause the timber to change colour. •... - Page 4 COMPONENTS Dining Top Dining Centre Ply Dining Base Leg (x2) 70MM M8 Allen Bolt (x4) 20MM M8 Washer (x4) 20MM M8 Bolts (x16) 25MM M8 Washer (x16) Allen Key 12MM 13M Spanner...
- Page 5 ASSEMBLY Step 1: Using the Allen Key, attach the Centre Ply to the Legs of Dining Table using the 70mm bolt (4) and 20mm washers (5). Do not overtighten, only tighten bolts to 80%.
- Page 6 Step 2: Fix the complete Leg set to the Dining Table Top using the 20mm bolts (6) and 25mm washers (7). The 12mm spanner (9) will be required to tighten the bolts. Do not overtighten, only tighten bolts to 80%.
- Page 7 Step 3: Return to tighten all bolts. Warning: Two people may be required to lift this table. Do not attempt to lift by yourself. Assembly complete!
-
Page 8: Need More Information
NEED MORE INFORMATION? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.mattblatt.com.au...
