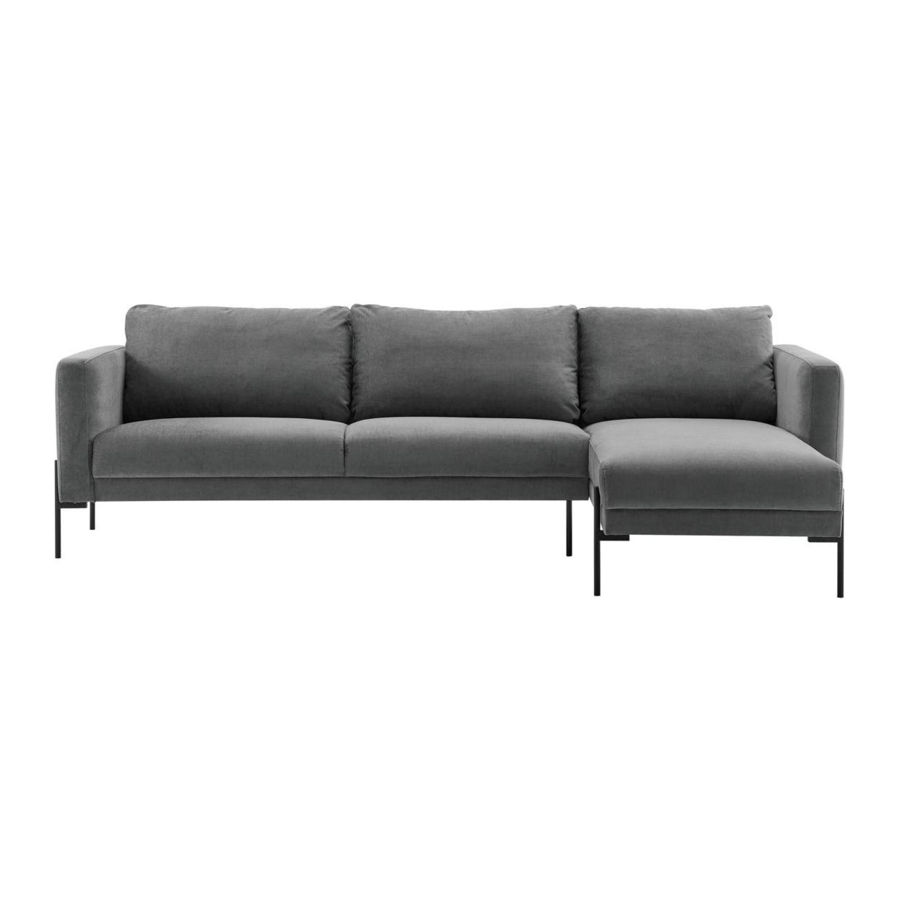

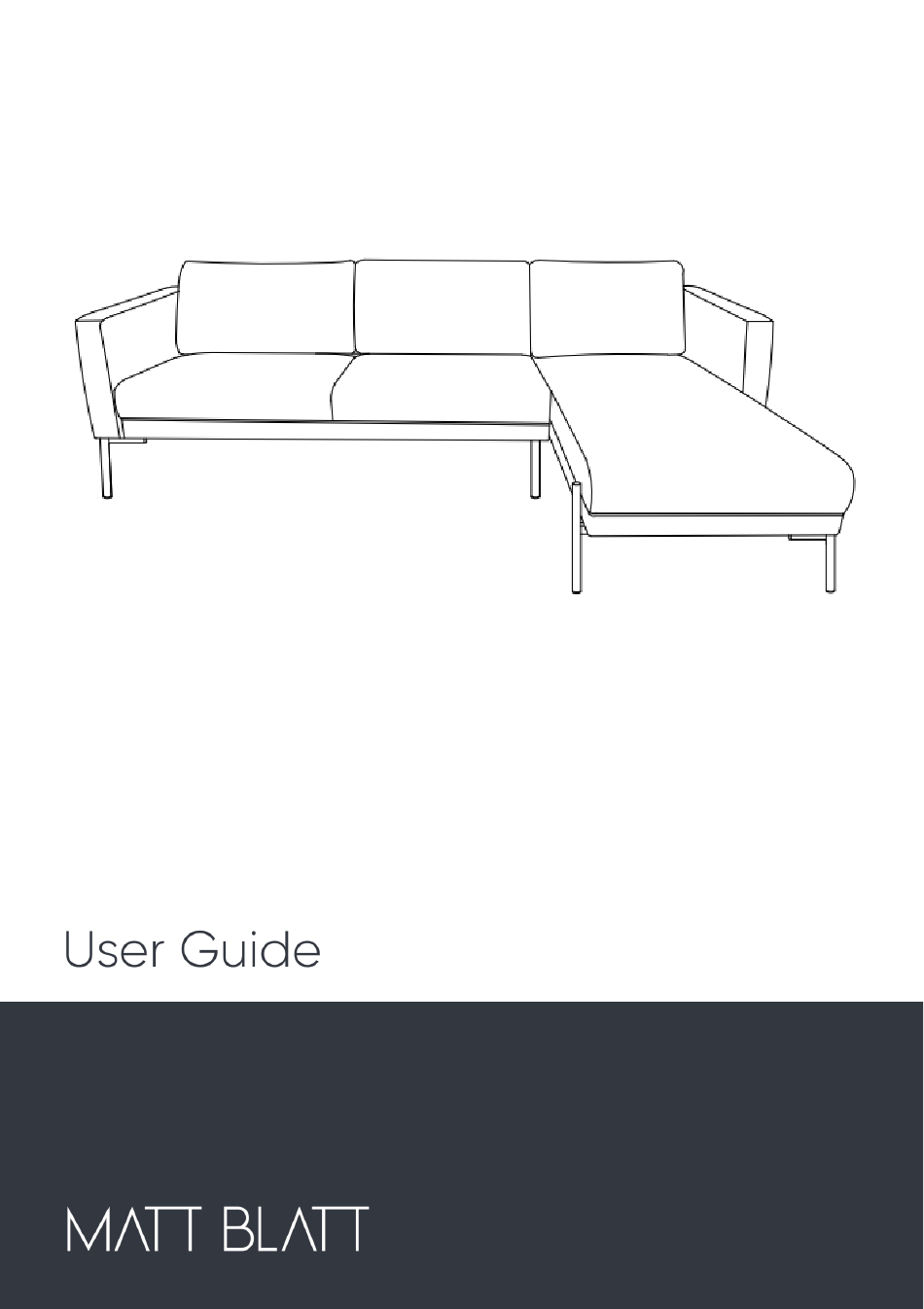

- Page 1 KINGSLEY CHAISE SOFA MBKINGSRHMA & MBKINGSRHGA...
- Page 3 SAFETY & WARNINGS Read these instructions carefully and keep for future reference. Refer to “components”, and ensure you have all items. Before assembling, place all items on a soft, clean and flat surface such as a carpet to prevent scratches.
- Page 4 COMPONENTS 1 Seat 2 Chaise 3 Small pillow 4 Large pillows (x2) 5 Legs (x6) 6 Support FITTINGS A M8x38mm B Ø13mm Spring C Ø25mm Flat D 5mm Allen key (x2) Bolts (x14) washer (x14) washer (x14)
- Page 5 ASSEMBLY Step 1: Remove the x2 Legs, Support leg and Fittings from the underside of the seat (1). Step 2: Remove the x4 Legs and Fittings out from the underside of the Chaise (2).
- Page 6 Step 3: Using the Allen key (D), attach the Legs (5) and Support leg (6) to the underside of the Seat (1) with the Bolts (A), Spring washers (B) and Flat washers (C). Step 4: Using the Allen key (D), attach the Legs (5) to the underside of the Chaise (2) with the Bolts (A), Spring washers (B) and Flat washers (C).
- Page 7 Step 5: Lift the Seat end and connect it to the Chaise. Step 6: Place the Small pillow (3) and the x2 Large pillows (4) in position Complete!
- Page 8 NEED MORE INFORMATION? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.mattblatt.com.au...
