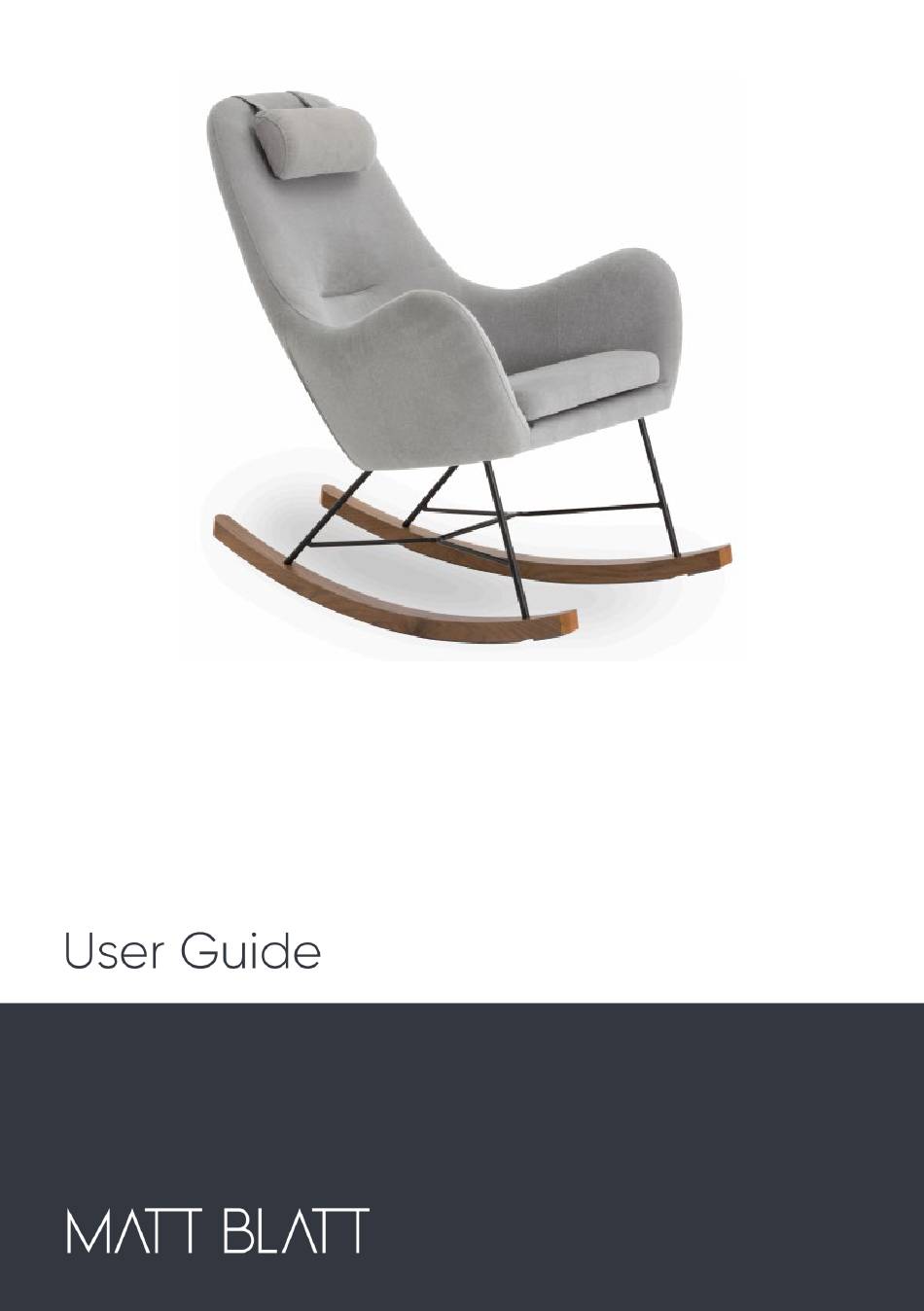

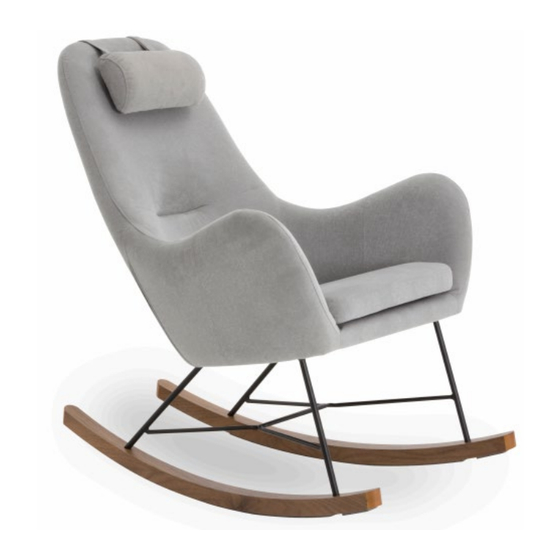

- Page 1 KENNETH DAHL DIXIE ROCKING CHAIR MBKENDDRCGA, MBKENDDRCMA...
- Page 3 COMPONENTS 1 Chair Body 2 Leg Frame A 3 Leg Frame B 4 Wooden Feet 5 35mm M8 6 20mm M8 7 15mm M4 (x2) Screws (x4) Screws (x6) Screws (x2) 8 Φ9xΦ13x3 Spring 9 Φ9xΦ16x2 10 Allen Key #4 11 Allen Key #5 Washers (x4) Washers (x4)
- Page 4 ASSEMBLY Step 1 Using the #5 Allen key [11], attach the Leg Frames [2, 3] to the Chair Body [1] with the 20mm screws [6]. Then, using the #4 Allen key [10], connect the Leg Frames [2, 3] together with the 15mm screws [7].
- Page 5 Step 2 Using the #5 Allen key [11], connect the wooden feet [4] to the leg assembly with the 35mm screws [5], ensuring the washers [9] and spring washers [8] are in place as shown in the below illustration. Do not overtighten.
- Page 6 Step 3 Return to all of the screws and tighten to 100%.
- Page 7 Complete!
-
Page 8: Need More Information
NEED MORE INFORMATION? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.mattblatt.com.au...
