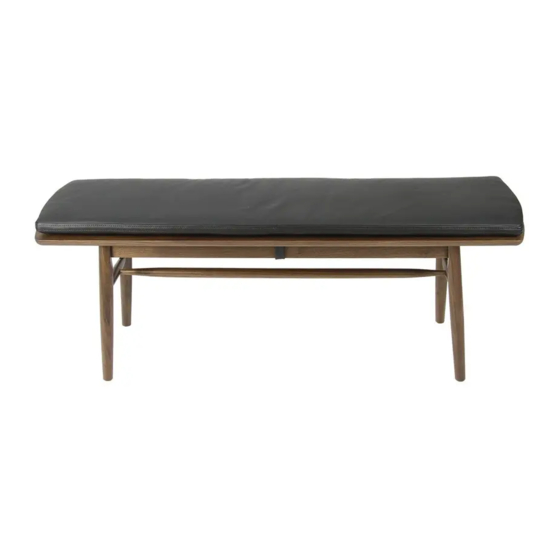

- Page 1 HORSTEN DINING BENCH MBHORTDBBWA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Please do not discard any of the packing until you have checked all parts and components are present. If there is any foam packing, double check that no additional hardware/fittings are lodged within it before discarding. •... - Page 4 COMPONENTS 1. Seat Top 2. Right Leg 3. Left Leg (x2) (x2) 4. Centre Stretcher 5. Cushion 6. Hex Head Screws 7. Spring Washer 8. Flat Washer (x4) (x4) (x4) 9. Spanner 10. Screws (x4)
- Page 5 ASSEMBLY Step 1: Using the Spanner [9], attach the Right and Left Legs [2, 3] to the seat top [1] with Hex head Screws [6]. Do not fully tighten the screws.
- Page 6 Step 2: Attach Centre Stretcher [4] to the Right and Left Legs [2, 3] with CSK Screw [10]. Following step 2, fully tighten all screws from steps 1 and 2. Step 3: Attach the Cushion [5] to the Seat Top and strap the supplied Velcro under the seat top.
- Page 7 Assembly complete!
-
Page 8: Need More Information
NEED MORE INFORMATION? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.mattblatt.com.au...
