4x4 4K HDBaseT
Supporting Uncompressed 4K 60Hz 4:4:4

Introduction

FEATURES:
Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a
single CAT6A cable
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features a simultaneous HDMI and HDBaseT™ output
Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4 x audio breakout from HDMI source inputs
- 4 x audio breakout from zone outputs
- 4 x audio return from zone outputs*
- 1 x optical and 1x analogue audio input
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
Web interface module for control and configuration of the Matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers
Advanced EDID management and HDCP 2.3 compliant
Supplied with 4 x RX18G HDBaseT™ Receivers
* Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
**ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G only
Contact:
support@blustream.com.au
HMX44-18G-KIT
Quick Reference Guide
TM
ARC Matrix

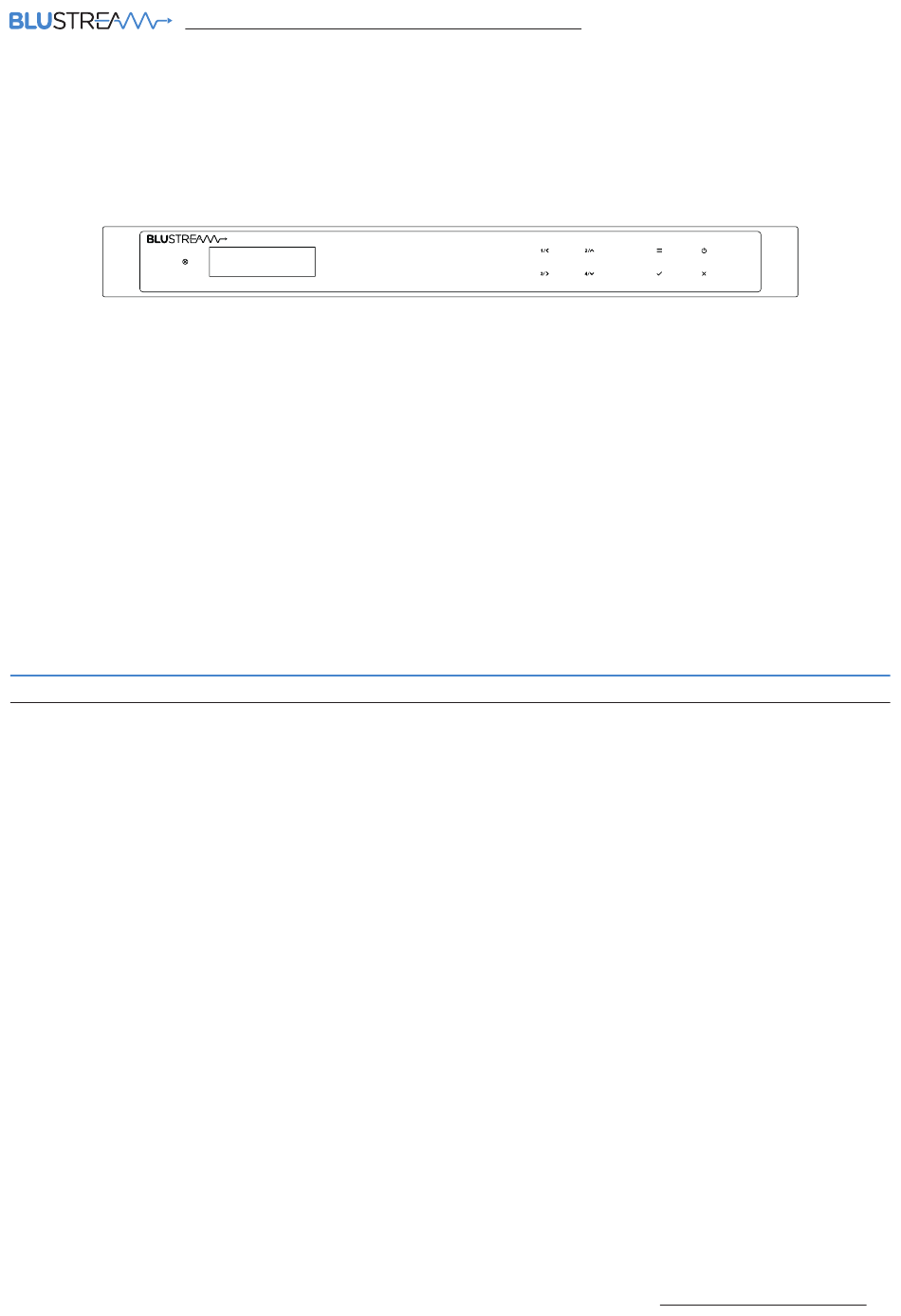

The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K
60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bi-
directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single
CAT6A cable.
The HMX44-18G supports uncompressed distribution of the latest HDR resolutions
including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your
critical viewing areas.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI
on output 1, video smart scaling on HDBaseT outputs, and an independent 14x4 audio
matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for
control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to
enable seamless 3rd party control integration.
|
support@blustream-us.com
HMX44-18G-KIT
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMX44-18G-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Bluestream HMX44-18G-KIT

  • Page 1 HMX44-18G-KIT QUICK REFERENCE GUIDE HMX44-18G-KIT Quick Reference Guide 4x4 4K HDBaseT ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4 Introduction The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bi- directional IR &...
  • Page 2 HMX44-18G-KIT QUICK REFERENCE GUIDE Front Panel Description 4x4 4K HDBaseT ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4 IR Receiver Window Selection Buttons - Multi-use buttons Select Button – Press to confirm changes within the Matrix menu Primary Use: LCD Display – Shows the status of input /...
  • Page 3 HMX44-18G-KIT QUICK REFERENCE GUIDE Web-GUI Control The HMX44-18G features an in-built web-GUI which can be used for control and configuration of the Matrix. By default the matrix is set to DHCP, however if a DHCP server (eg: network router) is not installed, the matrix IP address will revert to the below details:...
  • Page 4 HMX44-18G-KIT QUICK REFERENCE GUIDE Specifications Package Contents • Video Input Connectors: 4 x HDMI Type A, 19-pin, female • 1 x HMX44-18G • Video Output Connectors: • 4 x RX18G 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors •...
  • Page 5 HMX44-18G-KIT QUICK REFERENCE GUIDE Information A. Read these instructions – All the safety and operating instructions should be read before this product is operated. B. The apparatus should be connected to a mains socket outlet with a protective earthing connection.
  • Page 6 HMX44-18G-KIT QUICK REFERENCE GUIDE www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
  • Page 7 HMX44-18G-KIT QUICK REFERENCE GUIDE Notes... Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 8 www.blustream.com.au www.blustream-us.com www.blustream.co.uk HMX44-18G_QRG_REVA2...
