Bluestream C44CS-KIT Quick Reference Manual

4x4 HDBaseT
HDMI 1

Introduction

FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum
original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-
HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
• Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19" rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant
*CSC feature compatible with RX70CSL only
Contact: support@blustream.com.au
C44CS-KIT
Quick Reference Guide
Matrix - Supporting 4K 60Hz 4:4:4
TM
INPUT OUTPUT
HDMI 2 HDMI 3 HDMI 4 HDMI 1 HDBT 1 HDBT 2

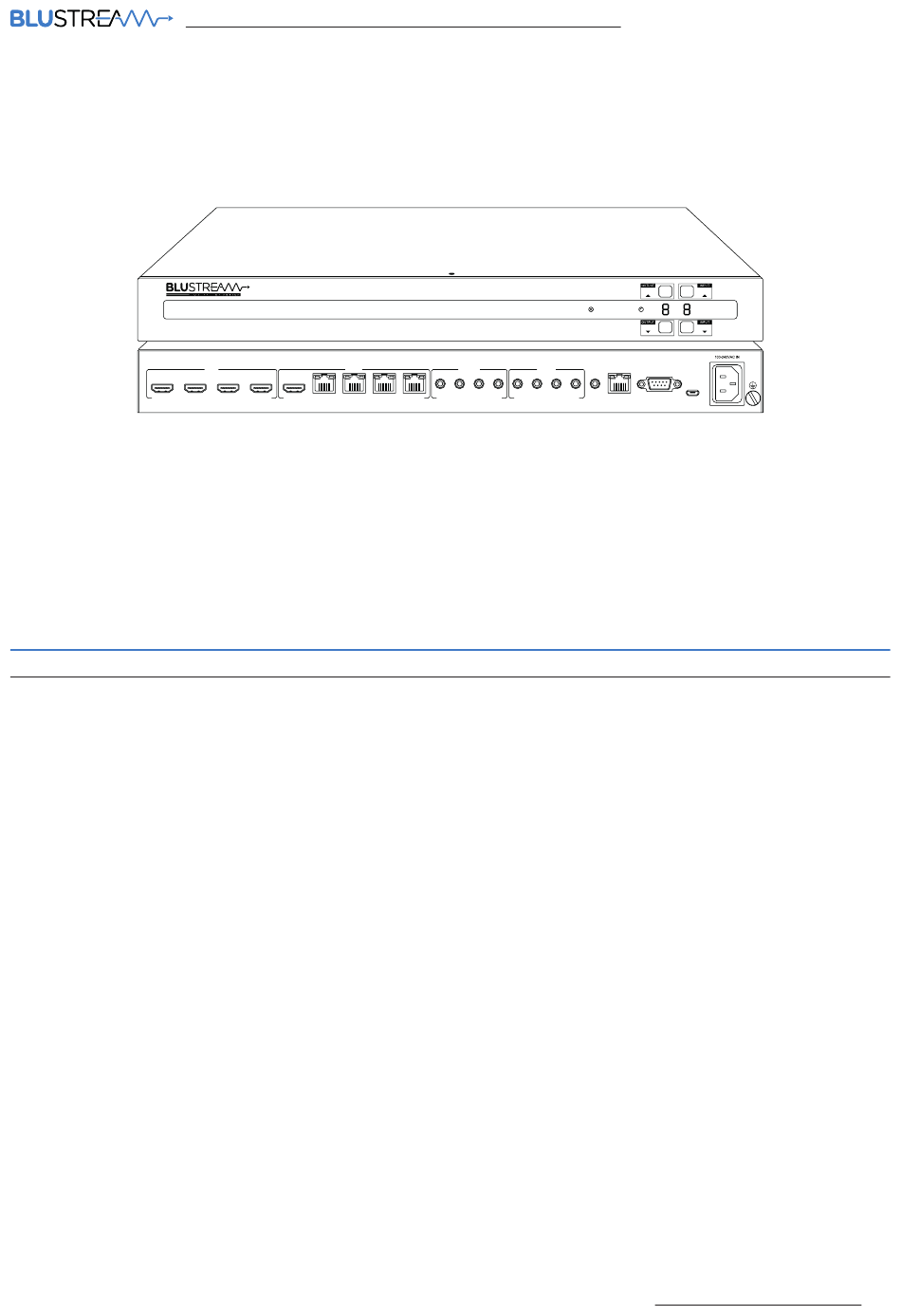

Our Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and
value for the custom installation market. The C44CS-KIT is a HDMI 2.0 4K 60Hz
4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional
IR, and PoC up to lengths of 70m over a single CAT cable. The matrix also
provides advanced features including simultaneous HDBaseT™ / HDMI on
output 1, video down conversion on HDBaseT™ outputs and a web browser
interface module for control and configuration of the matrix. The C44CS-KIT is
supplied with 4 x RX70CSL receivers.
| support@blustream-us.com
IR OUTPUT IR INPUT
HDBT 3 HDBT 4 1 2 3 4 1 2
| support@blustream.co.uk
QUICK REFERENCE GUIDE
C44CS-KIT
3 4 IR CTRL TCP/IP RS-232 UPGRADE
C44CS
01
