  • Page 1 OUTPUT INPUT OUTPUT INPUT 4x4 4K HDMI 2.0 Matrix INPUT OUTPUT CMX44CS IR OUT IR OUT IR OUT IR OUT IR IN COAX IR IN COAX IR IN COAX IR IN COAX RS-232 TCP/IP IR CTRL EDID HDMI 1 HDMI 2...

  • Page 2: Table Of Contents

    CMX44CS USER MANUAL Contents Introduction Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions care- Front Panel Description fully before connecting, operating or adjusting this product. Please keep this Rear Panel Description manual for future reference.

  • Page 3: Introduction

    Introduction Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX44CS supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion.

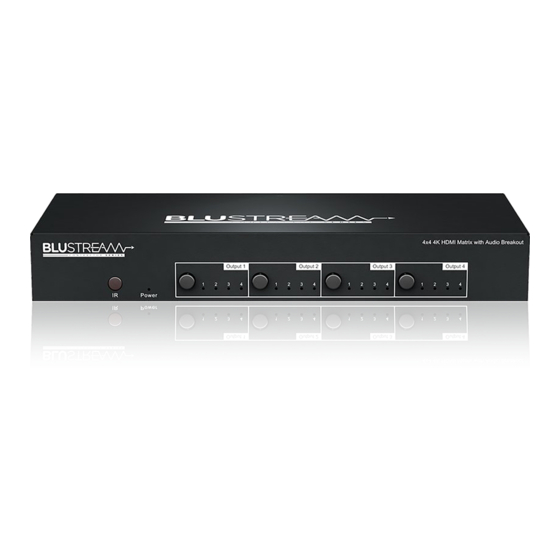

  • Page 4: Front Panel Description

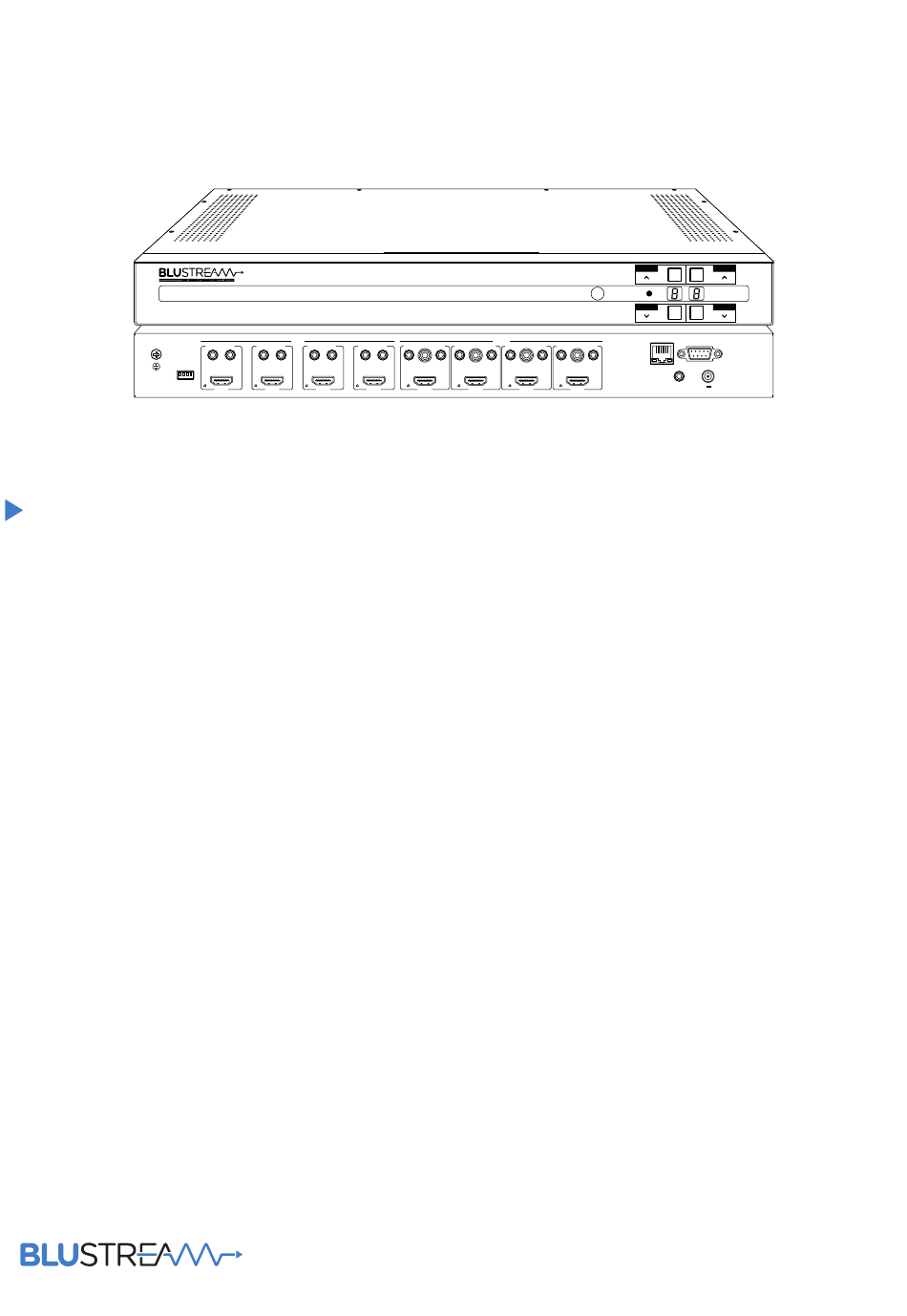

    CMX44CS USER MANUAL Front Panel Description OUTPUT INPUT OUTPUT INPUT 4x4 4K HDMI 2.0 Matrix INPUT OUTPUT CMX44CS IR OUT IR OUT IR OUT IR OUT IR IN COAX IR IN COAX IR IN COAX IR IN COAX IR Receiver - Built in IR sensor for IR control...
  • Page 5 CMX44CS USER MANUAL EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display. By pre-determining the video resolution and audio format of the source and display device you can reduce the time needed for EDID hand shaking thus making switching quicker and more reliable.

  • Page 6: Infrared (Ir) Control

    CMX44CS USER MANUAL Infrared (IR) Control The Blustream range of matrix products include Matrix control via IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion.
  • Page 7 CMX44CS USER MANUAL Login Page The Login Page allows a user or admin to login and access additional functionality within the Web GUI. Once you select a user from the list you will be asked to enter the pasword for that user in order to sign in.
  • Page 8 CMX44CS USER MANUAL Guest Control Page The Guest Control Page allows a guest to change inputs for each zone without needing to be logged into the matrix. Simply select the square that corresponds with the input and zone you wish to change.
  • Page 9 CMX44CS USER MANUAL Input Page The Input Page allows users to change settings specific to the inputs of the matrix. You can adjust the name of each input, the EDID of each input as select the audio source for each input, as well as see the status of HDMI cables and sources connected to each input.
  • Page 10 CMX44CS USER MANUAL Users Page The Users Page allows the admin to add or remove users, or set specific permissions for inputs, outputs and presets for each user. Settings Page The Settings Page allows you to the change the settings associated with the network interface and device communication, such as: •...

  • Page 11: Remote Control Description

    OUTPUT AND INPUT SELECTION EDID SET UP Selects the zone OUTPUT you wish to POWER The CMX44CS provides a comprehensive change the source on (Numbers 1 - 4 OUTPUT range of EDID settings. Below are three correspond to the zone outputs 1 - 4)
  • Page 12 CMX44CS USER MANUAL IR Commands 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 OUTPUT PTP 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 003F 0016 0016...

  • Page 13: Specifications

    12V/2A DC screw terminal NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents • 1 x CMX44CS • 1 x 12V/2A DC power supply • 1 x Remote control • 4 x IR emitter •...
  • Page 14 CMX44CS USER MANUAL RS-232 Configuration and Telnet Commands The Blustream matrix can be controlled via serial RS-232 and TCP/IP. The RS-232 port is used for configuration and control of the product. The default RS-232 communication settings are: Baud rate: 57600...
  • Page 15 CMX44CS USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION ? / HELP Print Help Information STATUS Print System Status And Port Status FWVER Print All Firmware Version PON/POFF Power On Or Off Device REBOOT Set System And Network Reboot...

  • Page 16: Schematic

    CMX44CS USER MANUAL Schematic UPDATE WITH CMX44CS SCHEMATIC www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
  • Page 17 CMX44CS USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 18 www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
