Bluestream HMXL44ARC-KIT Quick Reference Manual

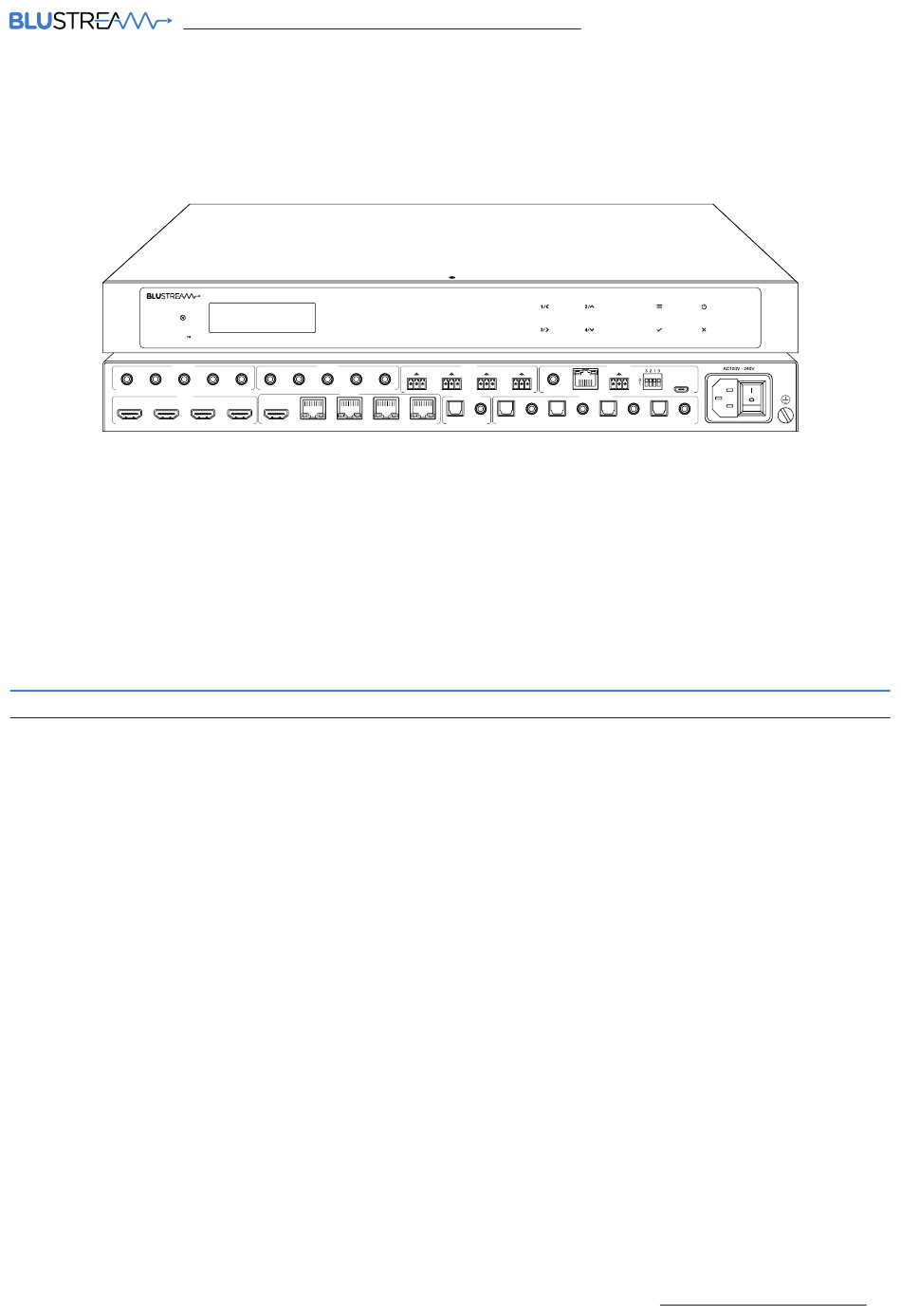

HMXL44ARC-KIT
4x4 4K HDBaseT
Supporting 4K 60Hz 4:4:4
IR OUTPUT
1 2
INPUT
HDMI 1 HDMI 2
Introduction
FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz
4:2:0, or 1080p) to receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining
video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m, and 1080p video up to 70m
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4 x audio breakout from HDMI source inputs
- 4 x audio breakout from zone outputs
- 4 x ARC from zone outputs*
- 1 x Optical and 1 x analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power the supplied 4x RX70CS HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
Contact:
support@blustream.com.au
Quick Reference Guide
ARC Matrix
IR INPUT
3 4 GLOBAL 1 2 3
OUTPUT
HDMI 3 HDMI 4 HDMI 1 HDBT 1 HDBT 2
Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the
custom installation market. The HMXL44ARC is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix
package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths
of 70m at 1080p over a single CAT cable. The matrix also provides advanced features
including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on
HDBaseT™ outputs and independent 14x4 audio Matrix including Audio Return Channel
(ARC). The HMXL44ARC includes in-built web browser interface module for control and
configuration of the Matrix, along with RS-232 and IR pass-through for seamless 3rd party
control integration.
|
support@blustream-us.com
RS-232
TX RX TX RX TX RX TX RX
4 GLOBAL
3
1 2 4
AUDIO INPUT
HDBT 3 HDBT 4 OPTICAL L/R OPTICAL 1
|
support@blustream.co.uk
HMXL44ARC-KIT
CONTROL
TX RX
UPGRADE
IR CTRL TCP/IP RS-232
EDID
AUDIO OUTPUT
L/R 1 OPTICAL 2 L/R 2 OPTICAL 3 L/R 3 OPTICAL 4 L/R 4
QUICK REFERENCE GUIDE
HMXL44ARC
01
