Bluestream HMXL88ARC Quick Reference Manual

Introduction
FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz
4:2:0, or 1080p) to receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining
video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m, and 1080p video up to 70m
• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
- 8 x audio breakout from HDMI source inputs
- 8 x audio breakout from zone outputs
- 8 x ARC from zone outputs*
- 1 x Optical and 1 x analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
*CSC & ARC feature compatible with RX70CS only
Contact:
support@blustream.com.au
HMXL88ARC
Quick Reference Guide

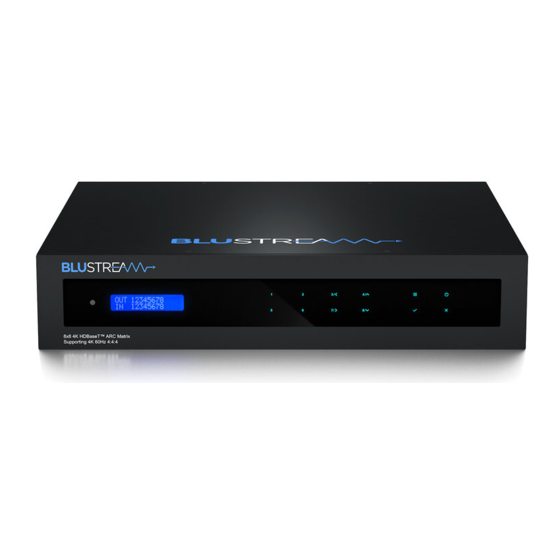

Our Essential 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the
custom installation market. The HMXL88ARC is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix
package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths
of 70m over a single CAT cable. The Matrix also provides advanced features including
simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™
outputs and independent 26x8 audio Matrix including Audio Return Channel (ARC). The
HMXL88ARC includes in-built web browser interface module for control and configuration
of the Matrix, along with RS-232 and IR pass-through for seamless 3rd party control
integration.
|
support@blustream-us.com
HMXL88ARC
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
