Falltech 5606A1 User Instruction Manual

Please read and understand the manufacturer's instructions for each component or part of the complete system. Manufacturer's instructions must be followed for
proper use, care, and maintenance of this product. These instructions must be retained and be kept available for the worker's reference at all times. Alterations or
misuse of this product, or failure to follow instructions, may result in serious injury or death.
• Never use the FallTech For Tools™ components for personal fall arrest, restraint, or work positioning.
• Inspect the FallTech For Tools™ components before each use in accordance with the requirements in Section 6 below.
• Never modify or alter the FallTech For Tools™ components. This includes extending the length or tying knots in the tool tethers.
• Never tether any tool or equipment to yourself that weighs more than 5 lbs (2.3 kg).
• Never use this products to tether a knife, sharp blade, or other sharp tool.
• Immediately inspect the FallTech For Tools™ components for damage if the tool has experienced a drop.
• Do not use this product on tools or equipment that exceed the rated capacity of the lowest rated component in the FallTech For Tools™ system.
• Do not use this product if it will interfere with any personal fall protection equipment or the operation of the connected tools or equipment.
• Avoid using around moving machinery, thermal, electrical, and/or chemical hazards as contact may cause serious injury or death.
• Ensure there is adequate tool drop clearance. The tool fall/swing path must not endanger you or any other workers.
• All procedures shown in these instructions are for FallTech For Tools™ products only.
• Report all incidents of dropped tools to your supervisor or safety coordinator.
• Do not use this product in temperatures below -31 degrees F (-35 degrees C) or above 113 degrees F (45 degrees C)

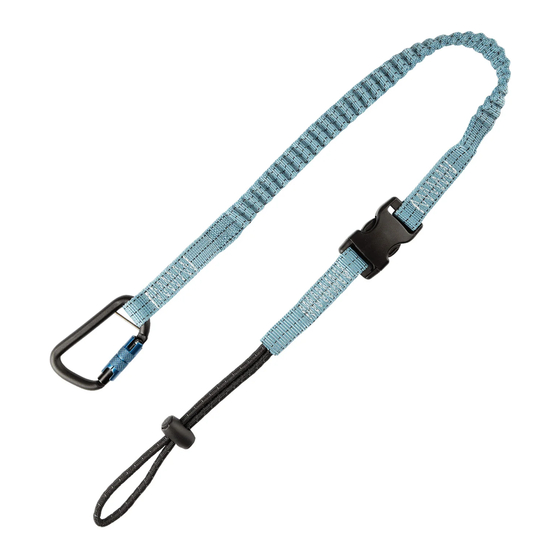

1.0 Description - The FallTech For Tools™ Tool Tethers are used to connect to the tool or tool attachment to FallTech® Wrist Attachments and Tool Anchors.
2.0 Application - The FallTech For Tools™ Tool Tethers are designed to be used as a component in a dropped object prevention program. The tool tethering system
is an assembly of components and subsystems to arrest a tool from an accidental drop. The system typically consists of tool attachment, a tool tether, and a tool
anchor. See product labels for maximum load capacity and maximum tether length.
3.0 System Requirements - The FallTech For Tools™ Tool Tethers is designed for use by a single tool with a combined weight no greater than 15 lbs (6.8 kg), based
on the rating of the attachment. DO NOT exceed the capacity of the lowest rated component in the system.
3.1 Compatibility of Components: Equipment is designed for use with approved components and subsystems only. Substitutions or replacements made
with non-approved components or subsystems may jeopardize compatibility of equipment and may affect the safety and reliability of the complete system.
3.2 Making Connections: Only use locking connectors with this equipment. Only use connectors that are suitable to each application. Ensure all connections
are compatible in size, shape, and strength. Do not use equipment that is not compatible. Visually ensure all connectors are fully closed and locked.
4.0 Installation
4.1 Pre-Use Inspection: Inspect the tool tethers thoroughly for missing or damaged parts before attaching it to the tool. Inspect the webbing, looped ends,
and stitching for cuts, fraying, and signs of damage to the materials from excessive wear or abrasion. Inspect the carabiners and speed clips for excessive wear,
cracks, or deformities. If any of these conditions exist, remove from service.
4.2 Installation Procedure: Ensure the tool attachment is clean and free of oil, grease, or debris, which could prevent adequate attachment onto the tool or
tool attachment. The Tool Tether should be placed away from the functional parts of the tool and the connection point should face away from the center of
gravity if connect directly to the tool. See the figures below for the installation steps by type of attachment.
4.2.1 Hard Hat Tether Installation Procedure (Stretch Coil Type): Locate a secure location on the inner suspension, an open hole, or slot on the shell
to install the FallTech® Hard Hat Tether. Feed the looped end into the hole or slot and pass the anchorage end connector through the loop to choke
down onto the hard hat, see Figure 1. Open the metal clip and securely attach it to a suitable anchor point such as a full body harness.
4.2.2 Hard Hat Tether Installation Procedure (Stretch Web Type): Locate a secure location on the inner suspension, an open hole, or slot on the shell
to install the FallTech® Hard Hat Tether. Open the plastic cam buckle to release the webbing from the buckle. Slide the end through and around the
hole or slot and feed it back into the cam buckle, see Figure 2. Adjust to the desired length and close the cam buckle. Pull on the web to ensure the
connection is secure, detach the plastic speed clip and route the anchorage end to a secure anchor point such as a full body harness.
4.2.3 Choke-On Installation Procedure: Pass the nylon loop through an established hole on the tool, pass the anchorage end connector through the
nylon loop and pull the tool attachment through to choke down onto the tool, see Figure 3. Connect to a suitable anchor point. DO NOT attach tools
over 5 lbs (2.3 kg) to Wrist Anchor or to your full body harness.
4.2.4 Carabiner Installation Procedure: Unscrew the screw gate and attach to an existing hole, turn the screw gate to lock it in the closed position. If
using a twist lock carabiner, ensure it is fully locked closed. DO NOT attach tools over 5 lbs (2.3 kg) to a Wrist Anchor or to your full body harness.
Figure 1 - Stretch Coil Type
This manual is intended to meet the Manufacturer's Instructions as required by the American National Standards Institute (ANSI), International Safety Equipment
Association (ISEA) and should be used as part of an employee training program as required by the Occupational Safety and Health Administration (OSHA).
MTOL04 Rev F
User Instruction Manual
PLEASE READ - IMPORTANT SAFETY INFORMATION
FallTech 1306 S. Alameda Street Compton, CA 90221, USA Tel: 800-719-4619 Fax: 323-752-5613
Tool Tethers
WARNINGS AND LIMITATIONS
Figure 2 - Stretch Web Type Figure 3 - Choke On
080621
